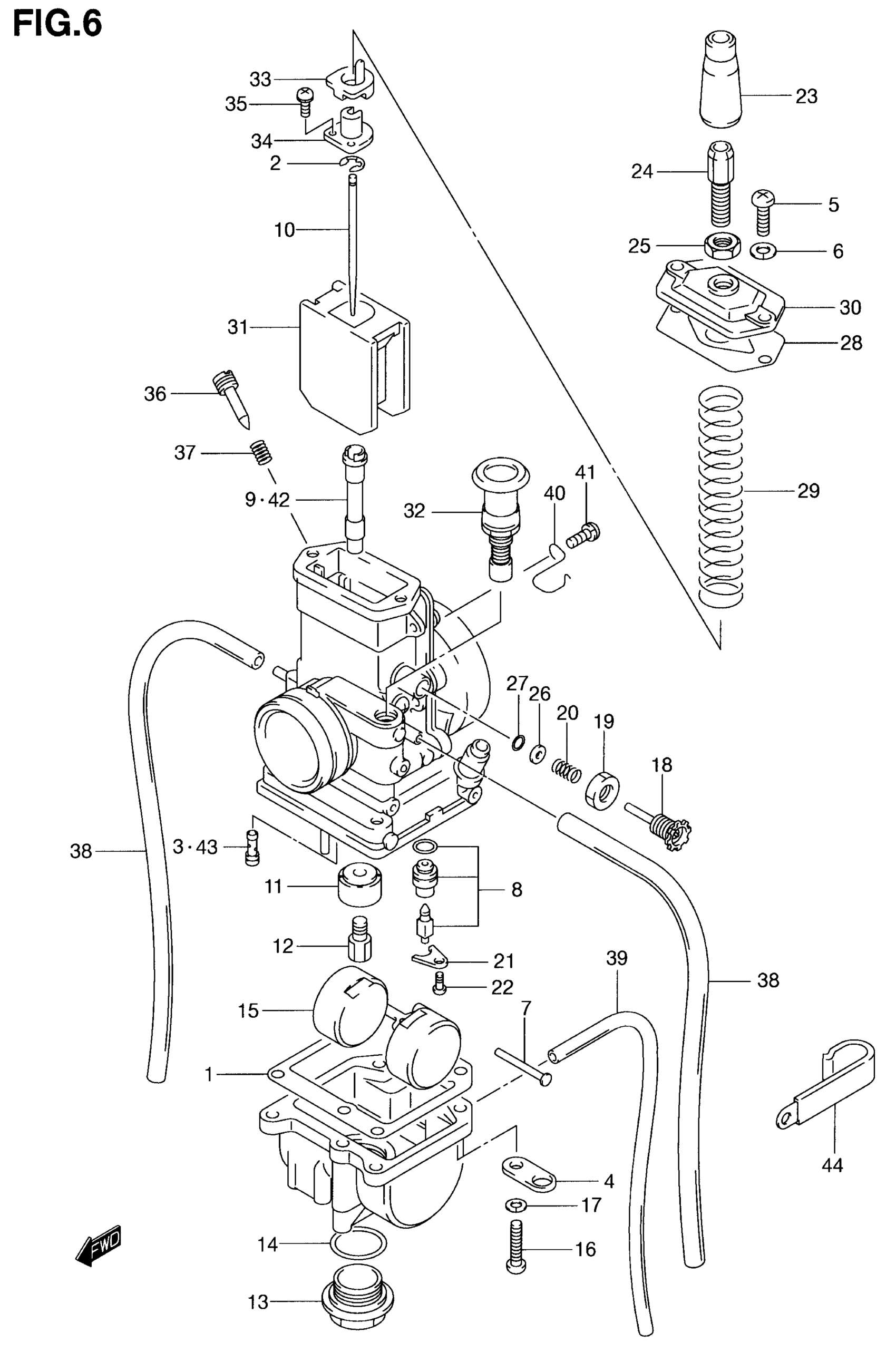

Suzuki RM80 (2001) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 28

13200-03B00

Unavailable

1

GASKET

13251-02B40

$11.02

2

E RING

13394-10010

$5.45

3

JET, PILOT (30)

09492-30006

$9.55

4

PLATE

13693-36500

$3.25

5

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

7

PIN, FLOAT

13254-92311

$2.07

8

VALVE ASSY, NEEDLE

13370-02B50

$73.80

9

JET, NEEDLE (P-4)

09494-00523

Unavailable

10

NEEDLE, JET (5DP39-4)

13383-46900

$19.00

11

RING

13331-28710

Unavailable

12

JET, MAIN (210)

09491-42005

Unavailable

13

PLUG, DRAIN

13247-46900

Unavailable

14

O RING

13246-29630

$6.30

15

FLOAT

13252-02B50

Unavailable

16

SCREW This part replaces 02112-04203.

02112-0420A

$1.49

17

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

18

ADJUSTER, THROTTLE STOP

13267-16700

$14.85

19

NUT

13661-02B00

$5.32

20

SPRING

13268-35010

$4.48

21

PLATE, NEEDLE VALVE

13373-39110

$6.64

22

SCREW

02112-04087

$1.49

23

CAP, ADJUSTER

13681-33010

$9.32

24

ADJUSTER, CABLE

13577-41612

$7.01

25

NUT

13661-16600

$4.64

26

WASHER

13291-35010

$3.56

27

O RING

13295-33010

$4.48

28

GASKET, TOP

13266-16700

$6.93

29

SPRING, THROTTLE VALVE | Includes Item(s) 30 - 41

13573-16700

Unavailable

30

CAP, TOP

13261-16700

Unavailable

31

VALVE, PISTON (CA:4.0)

13551-20910

Unavailable

32

PLUNGER ASSY

13410-26410

Unavailable

33

RING

13629-16700

Unavailable

34

CONNECTOR

13398-16700

Unavailable

35

SCREW This part replaces 02112-33103.

02112-3310B

$2.70

36

SCREW, AIR (1 1/2)

13269-16700

$13.05

37

SPRING

13268-01010

$5.28

38

HOSE (3.5X6.5X600) | L:600?330

09351-35653-600

$4.64

39

.HOSE (3X5X600) | L:600?250 This part replaces 09352-30503-600.

09352-30504-600

$4.91

40

CLIP

13692-14500

Unavailable

41

SCREW

13601-04148

$2.81

42

JET, NEEDLE (P-0) | OPT

09494-00519

Unavailable

42

JET, NEEDLE (P-2) | OPT

09494-00522

Unavailable

42

JET, NEEDLE (P-6) | OPT

09494-00585

Unavailable

43

JET, PILOT (25) | OPT

09492-25005

$9.55

43

JET, PILOT (35) | OPT

09492-35004

Unavailable

44

CLAMP This part replaces 09403-06307.

09403-06329

$2.32
