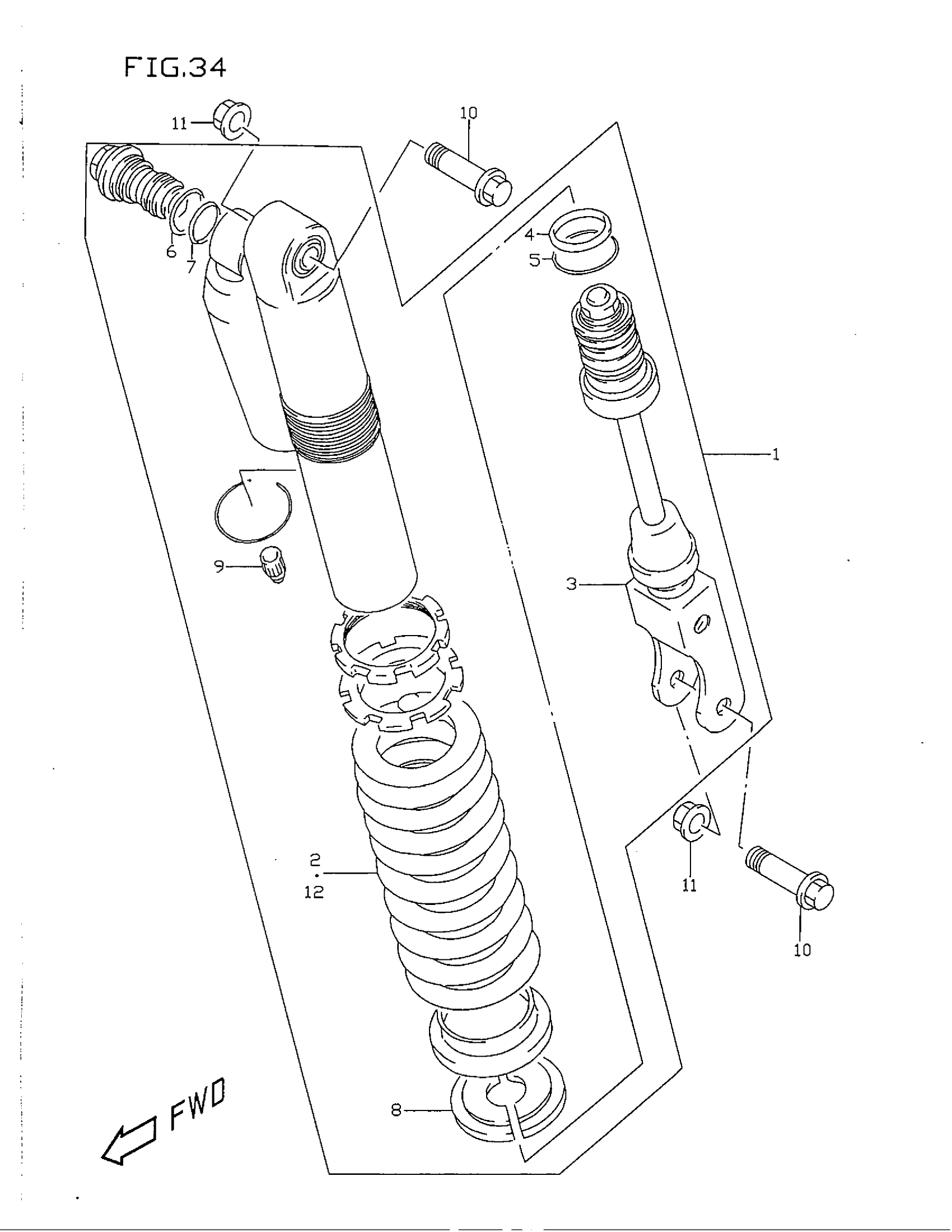

Suzuki RM80 (1999) SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | MODEL T This part replaces 62100-03B00-Z84.

62100-03B01-Z84

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL V E3

62100-03B01-Z84

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL V E28

62100-03B20-Z84

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL W E3

62100-03B01-Y0P

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL W E28

62100-03B20-Y0P

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL X E3

62100-03B01-37W

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL X E28; Includes Item(s) 2 - 9

62100-03B20-37W

Unavailable

2

SPRING (K=4.89) | MODEL T/V

62211-02B70-Z84

Unavailable

2

SPRING (K=4.89) | MODEL W

62211-02B70-Y0P

Unavailable

2

SPRING (K=4.89) | MODEL X

62211-02B70-37W

Unavailable

3

ROD, PISTON

62120-03B00

Unavailable

4

O RING

62153-03B00

Unavailable

5

RING, ROD STOPPER

62279-03B00

Unavailable

6

O RING

62131-27C40

$4.82

7

O RING This part replaces 51175-28E30.

51175-03B30

$6.05

8

SEAT, SPRING STOPPER

62225-17C00

$32.67

9

CAP

51294-20400

$7.37

10

BOLT

62648-14500

$4.34

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

12

SPRING (K=4.70)(SOFT) | OPT

62211-03B00

Unavailable

12

SPRING (K=5.10)(HARD) | OPT

62211-03B10

Unavailable
