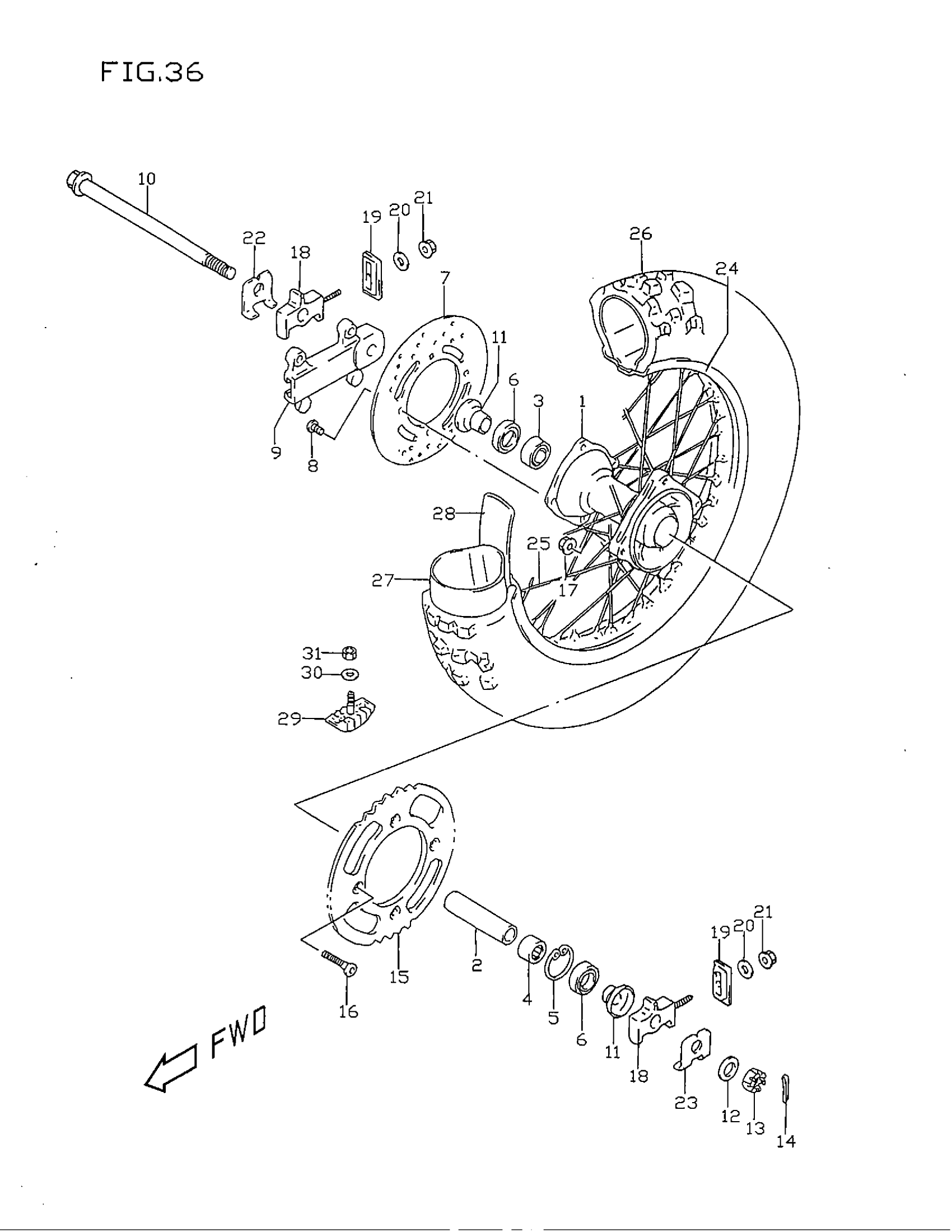

Suzuki RM80 (1999) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-02B43

$289.50

2

SPACER, HUB BEARING

64731-02B40

$20.76

3

BEARING, RH

08123-60027

$23.62

4

BEARING, LH (15X35X11)

09262-15021

$21.85

5

CIRCLIP This part replaces 08331-41356.

08331-41359

$2.26

6

SEAL, DUST (20X35X7)

09283-20024

$5.11

7

DISC,REAR BRAKE This part replaces 69211-02B40.

69211-02B41

Unavailable

8

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

9

BRACKET, CALIPER

69721-02B42

Unavailable

10

AXLE, REAR

64711-02B40

Unavailable

11

SPACER, AXLE

64741-02B41

$63.42

12

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

$2.81

13

NUT

09141-14004

$3.91

14

PIN This part replaces 04111-30308.

04111-3030A

$1.49

15

SPROCKET, REAR (NT:48)

64511-20920

Unavailable

15

SPROCKET, REAR (NT:46) | OPT

64511-20980

Unavailable

15

SPROCKET, REAR (NT:47) | OPT

64511-20550

Unavailable

15

SPROCKET, REAR (NT:49) | OPT

64511-02B40

Unavailable

16

SCREW (8X30.5)

09120-08010

$2.36

17

NUT

09159-08067

$5.57

18

ADJUSTER, CHAIN

61410-02B02

Unavailable

19

PLATE,CHAIN ADJ This part replaces 61421-02B00.

61421-02B0V

$8.34

20

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

21

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

22

WASHER, RH

64712-02B00

$3.58

23

WASHER, LH

64713-02B00

$3.45

24

RIM, WHEEL (1.60X14)

65311-02B40

Unavailable

25

SPOKE ASSY, WHEEL

65320-02B51

Unavailable

26

TIRE, REAR (90/100-14) | MODEL T This part replaces 65110-02B50.

65110-02B40

Unavailable

26

TIRE, REAR (90/100-14) | MODEL V/W/X

65110-02B40

Unavailable

27

TUBE ASSY, INNER | MODEL T

65200-02B50

Unavailable

27

TUBE ASSY, INNER | MODEL V/W/X

65200-02B40

Unavailable

28

PROTECTOR, INNER TUBE | MODEL T

65261-02B50

Unavailable

28

PROTECTOR, INNER TUBE | MODEL V/W/X

65261-02B40

$6.63

29

STOPPER, BEAD

65270-43D00

$58.75

30

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

31

NUT This part replaces 08310-00083.

08310-0008A

$1.84
