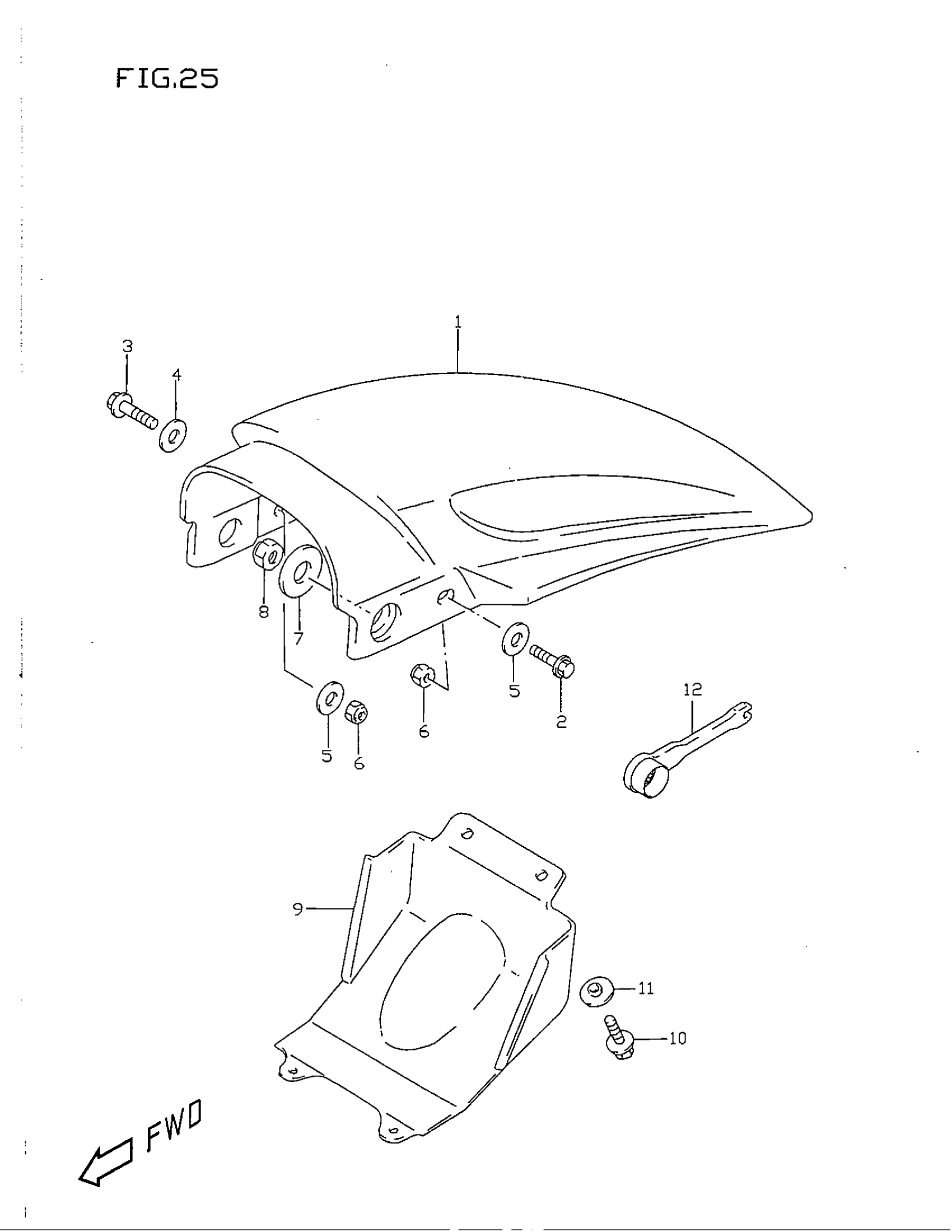

Suzuki RM80 (1999) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-03B00-25Y

Unavailable

2

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

4

WASHER, REAR RH

09160-06066

$1.89

5

WASHER

09160-06077

$1.91

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

7

WASHER, UPPER, OUTER | MODEL T/V This part replaces 09160-10006.

09160-10501

$2.33

7

WASHER, INNER | MODEL W/X

09160-10501

$2.33

8

NUT

09159-10027

$3.10

9

MUD GUARD, REAR FENDER FRONT

63351-03B00

$34.87

10

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

11

WASHER

09169-06010

$2.60

12

BOX SPANNER, 21

09816-00126

Unavailable
