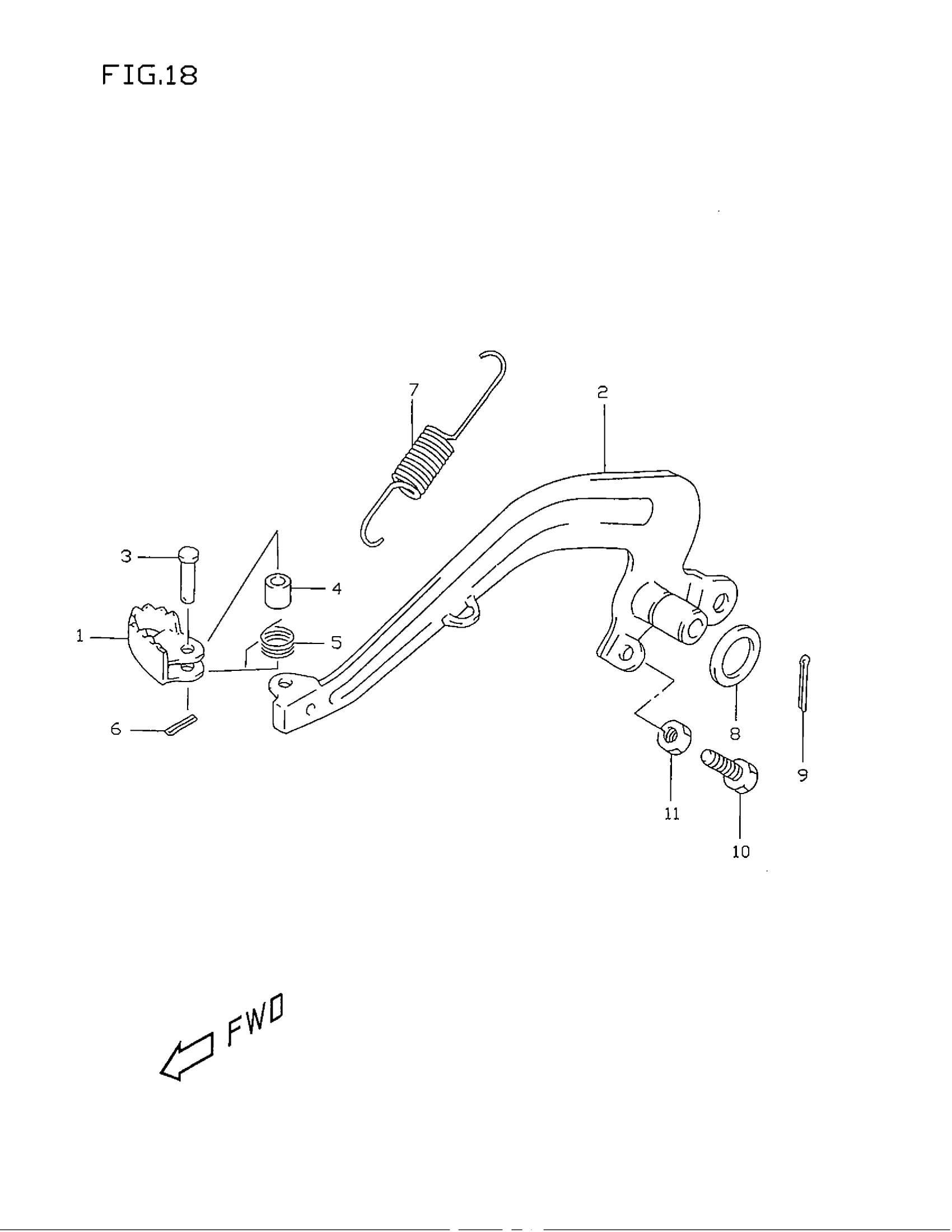

Suzuki RM80 (1999) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-01B10

Unavailable

2

ARM, BRAKE PEDAL

43120-02B30

Unavailable

3

PIN

09200-06060

Unavailable

4

SPACER | MODEL T This part replaces 09180-06165.

09180-06257

$2.83

4

SPACER | MODEL V/W/X

09180-06257

$2.83

5

SPRING

09444-11005

$2.86

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

SPRING

09443-13024

$4.50

8

WASHER | MODEL T/V

09160-15002

$1.91

8

WASHER | MODEL W/X

09160-15049

$2.64

9

PIN This part replaces 04111-25308.

04111-2530A

$1.49

10

BOLT, ADJUSTER

09128-06028

$1.98

11

NUT This part replaces 08310-00063.

08310-0006A

$1.84
