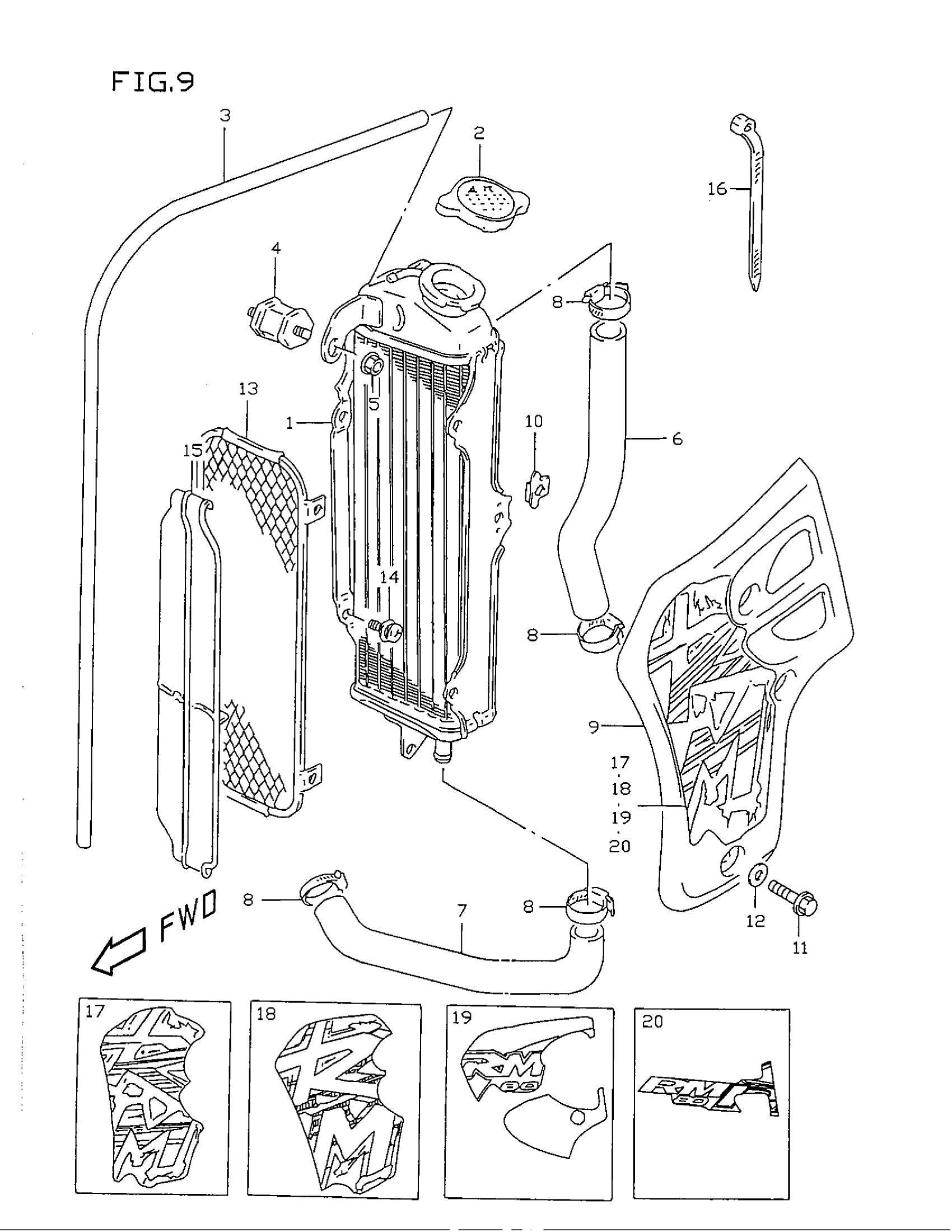

Suzuki RM80 (1999) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER | ~E.NO.112155 This part replaces 17710-02B03.

17710-02B04

Unavailable

1

RADIATOR, WATER | E.NO.112156~

17710-02B04

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C01.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:600->550 This part replaces 09351-50803-600.

09351-50803-00B

$9.10

4

BOLT,RADIATOR C This part replaces 17788-02B01.

17788-02B02

Unavailable

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

HOSE, INLET

17851-02B40

Unavailable

7

HOSE, OUTLET

17852-02B40

Unavailable

8

CLAMP

09402-28511

$6.88

9

COVER, RADIATOR (PURPLE) | MODEL T/V

17761-03B00-Z62

Unavailable

9

COVER, RADIATOR (BLACK) | MODEL W

17761-03B00-019

Unavailable

9

COVER, RADIATOR (YELLOW) | MODEL X

17761-03B00-25Y

Unavailable

10

PLATE, FITTING

17785-20930

Unavailable

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

12

WASHER (6.5X18X1.0)

09160-06028

$1.49

13

BUMPER, RADIATOR

17810-02B40

Unavailable

14

SCREW This part replaces 02112-76103.

02112-7610A

$2.28

15

LOUVER, RADIATOR | MODEL T This part replaces 17830-20900-019.

17830-20901

Unavailable

15

LOUVER, RADIATOR | MODEL V/W/X

17830-20901

Unavailable

16

CLAMP (L:235)

09407-25401

$4.66

17

EMBLEM, RADIATOR COVER | MODEL T

68671-03B50-E8S

Unavailable

18

EMBLEM, RADIATOR COVER | MODEL V

68671-03B60-G7E

Unavailable

19

TAPE SET, RADIATOR COVER | MODEL W

68670-03B70-J7Z

Unavailable

20

TAPE, RADIATOR COVER | MODEL X

68670-03B80-M2V

Unavailable
