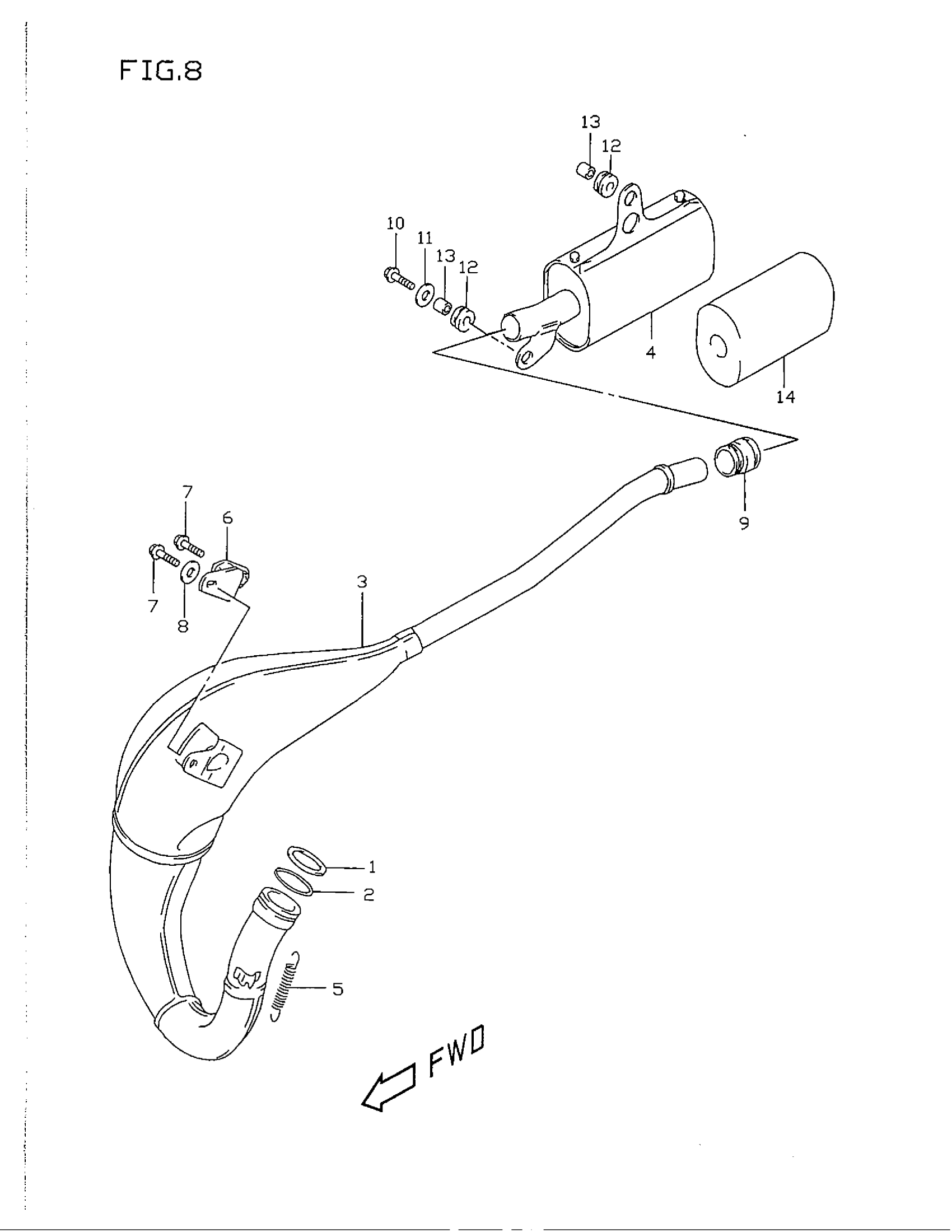

Suzuki RM80 (1999) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-02B40

Unavailable

2

O RING, EXHAUST PIPE

14171-02B40

Unavailable

3

MUFFLER, 1ST | MODEL T This part replaces 14310-02B42-H01.

14310-02B42

Unavailable

3

MUFFLER, 1ST | MODEL V/W/X

14310-02B42

Unavailable

4

MUFFLER, 2ND | MODEL T This part replaces 14330-02B71-H01.

14330-03B00

Unavailable

4

MUFFLER, 2ND | MODEL V This part replaces 14330-02B71.

14330-03B00

Unavailable

4

MUFFLER, 2ND | MODEL W/X This part replaces 14330-02B72.

14330-03B00

Unavailable

5

SPRING

09443-12033

$4.78

6

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

7

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

8

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

9

CONNECTOR, 2ND MUFFLER

14771-48002

$13.04

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

WASHER (6.5X20X1.2) | MODEL T/V/W This part replaces 09160-06027.

09160-06077

$1.91

11

WASHER (6.5X20X1.2) | MODEL X

09160-06077

$1.91

12

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

13

SPACER | MODEL T This part replaces 09180-06152.

09180-06262

$2.55

13

SPACER (6.5X9X8.5) | MODEL V/W/X

09180-06262

$2.55

14

SILENCER, MUFFLER | OPT

14351-02B50

Unavailable
