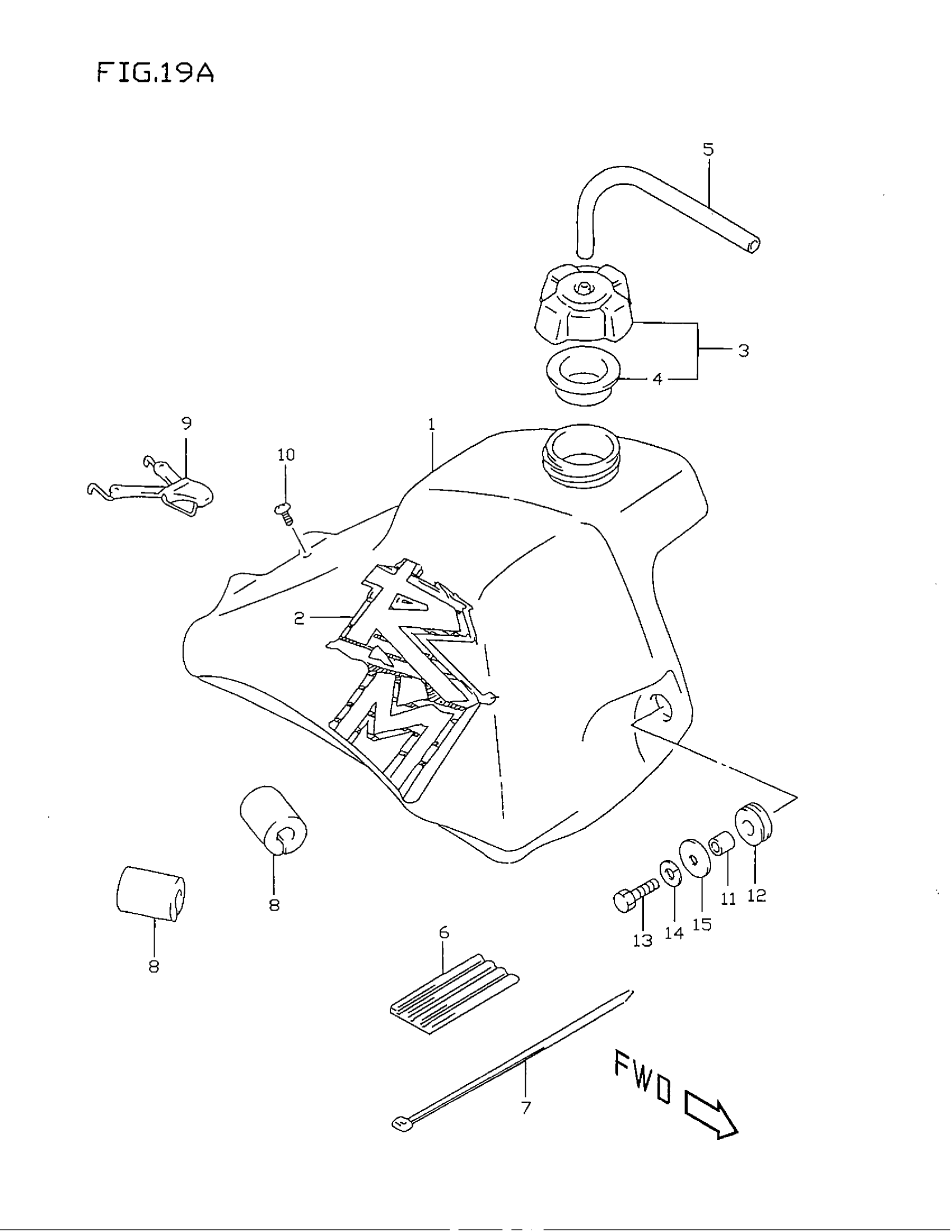

Suzuki RM80 (1999) FUEL TANK (MODEL V) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW)

44110-02B00-25Y

Unavailable

2

EMBLEM

68111-03B50-G7E

Unavailable

3

CAP SET,FUEL TA | Includes Item(s) 4 This part replaces 44200-27870.

44200-27871

$22.96

4

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

CUSHION, UPPER FRONT

44541-14300

$8.12

7

CLAMP

09407-25402

$4.64

8

CUSHION, UPPER REAR

44542-17300

$8.12

9

BAND, REAR

44560-26C00

$16.25

10

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

11

SPACER

09180-06289

$2.56

12

CUSHION This part replaces 09320-10029.

09320-10080

$7.80

13

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.78

14

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

15

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

$1.86

16

REFER TO FIG.19B(D-7) FOR

SPECIAL NOTE

Unavailable
