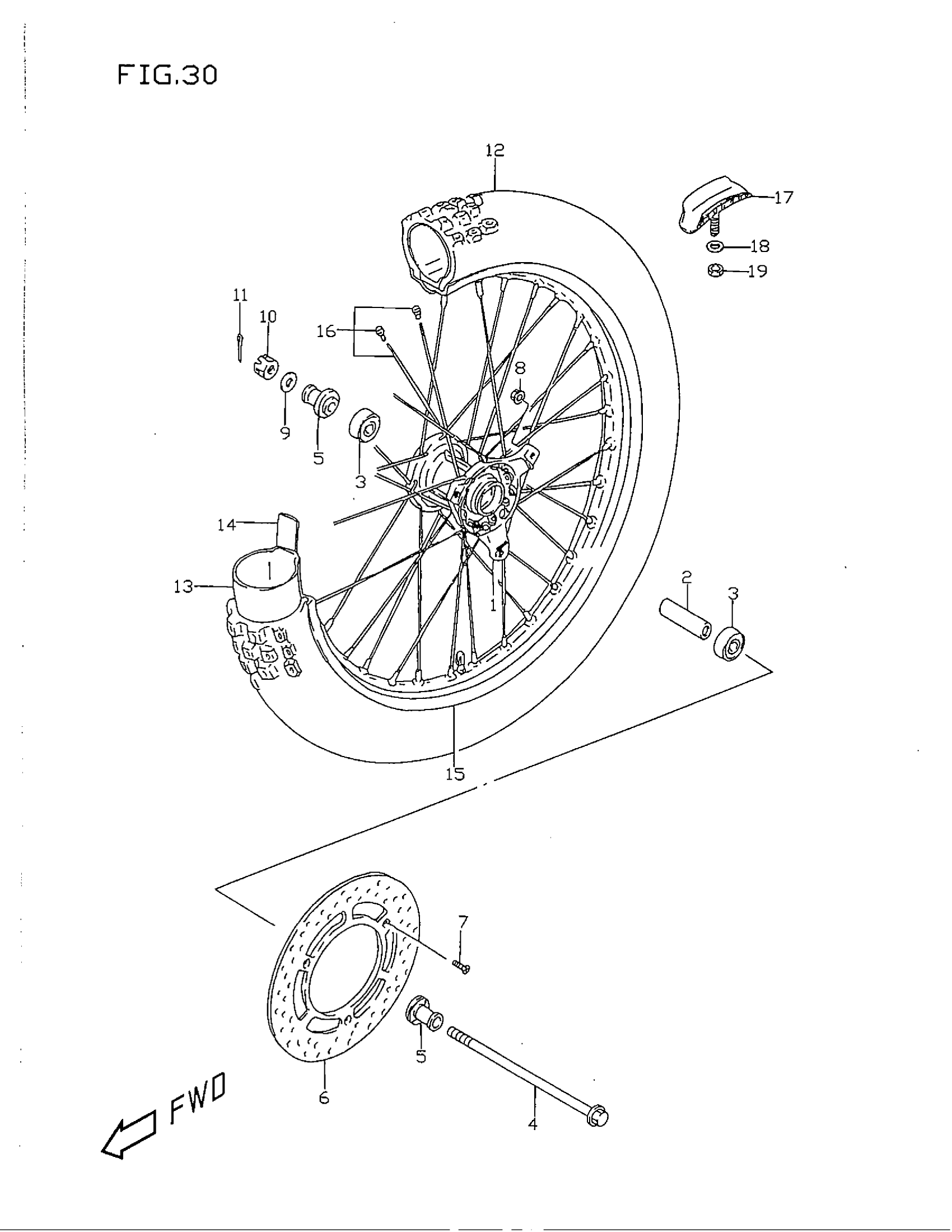

Suzuki RM80 (1999) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$316.32

2

SPACER, FR HUB BEARING

54731-02B40

$13.67

3

BEARING

08133-62017

$18.47

4

AXLE, FRONT

54711-02B40

$43.68

5

SPACER, FR AXLE

54740-02B40

$15.68

6

DISC,FRONT BRAK This part replaces 59221-02B20.

59221-02B21

Unavailable

7

SCREW (6X22)

09126-06009

$2.70

8

NUT

08319-31067

$2.03

9

WASHER

08211-12204

$4.32

10

NUT This part replaces 08314-40123.

08314-4012A

$2.50

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

TIRE, FRONT (70/100-17) | MODEL T This part replaces 55110-02B50.

55110-02B41

Unavailable

12

TIRE, FRONT (70/100-17) | MODEL V/W/X

55110-02B41

Unavailable

13

TUBE ASSY, INNER | MODEL T

55200-02B50

Unavailable

13

TUBE ASSY, WHEEL INNER | MODEL V/W/X This part replaces 55200-47C00.

55200-08G01

$22.77

14

PROTECTOR, INNER TUBE | MODEL T

55261-02B50

Unavailable

14

PROTECTOR, INNER TUBE | MODEL V/W/X

55261-02B40

$6.88

15

RIM, FRONT WHEEL (1.40X17)

55311-02B00

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-02B00

Unavailable

17

STOPPER, BEAD

65270-28600

$54.75

18

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

19

NUT This part replaces 08310-00083.

08310-0008A

$1.84
