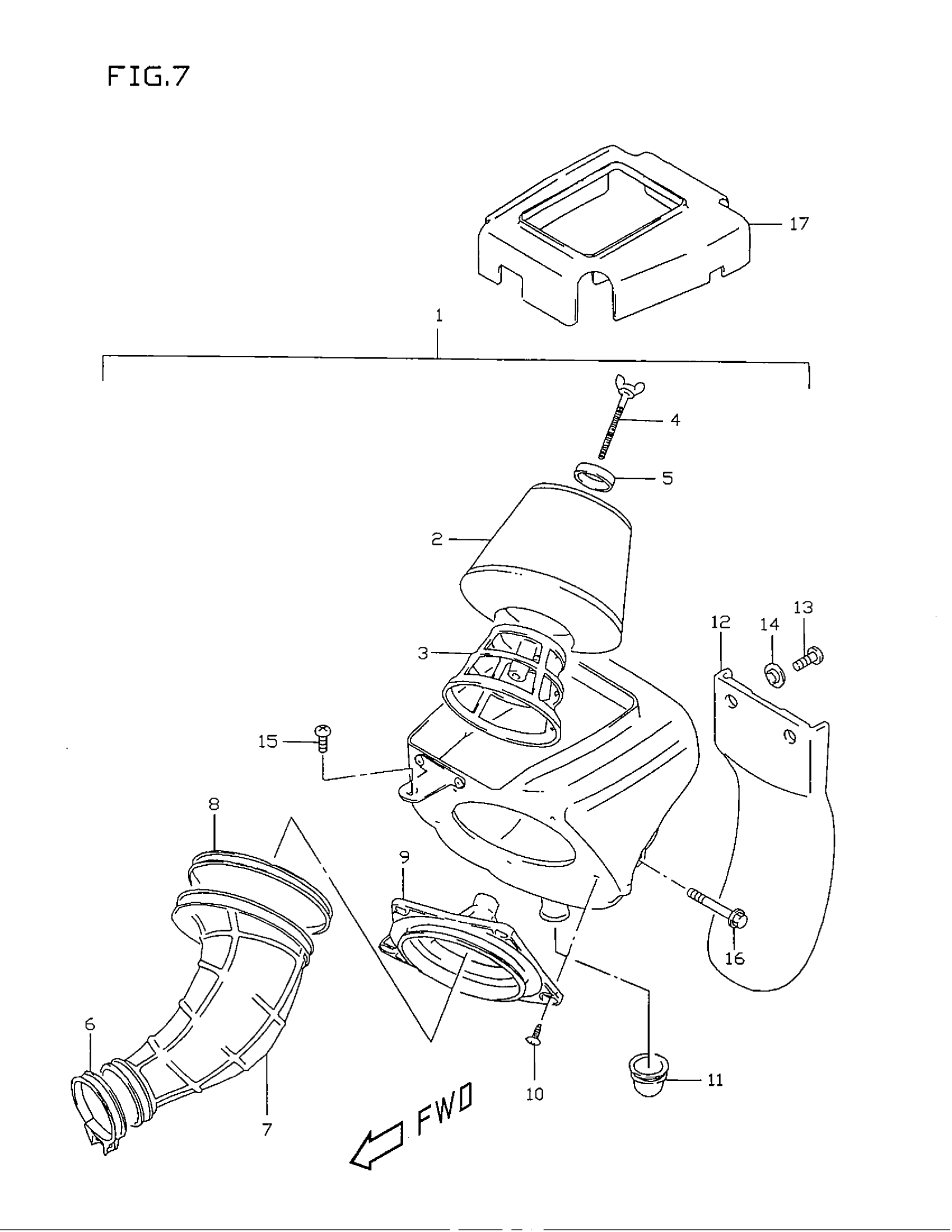

Suzuki RM80 (1999) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-02B53

Unavailable

2

FILTER

13780-02B00

$41.15

3

HOLDER, FILTER

13791-02B00

$18.20

4

BOLT, WING

13831-02B00

$5.80

5

WASHER

13792-13A01

$4.34

6

CLAMP

09402-50208

$4.77

7

TUBE, OUTLET

13881-02B50

Unavailable

8

CLAMP

09402-00303

$5.76

9

BASE, FILTER

13790-02B10

$24.42

10

SCREW | MODEL T/V/W This part replaces 03241-05123.

03241-0512A

$1.49

10

SCREW | MODEL X This part replaces 03242-05123.

03241-0512A

$1.49

11

TUBE, DRAIN

13873-18900

Unavailable

12

MUD GUARD

13738-02B00

$19.43

13

SCREW

02142-06167

$1.49

14

WASHER

13838-02B00

$3.56

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

16

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

17

MUD GUARD This part replaces 13739-02B13.

13739-02B14

$36.17
