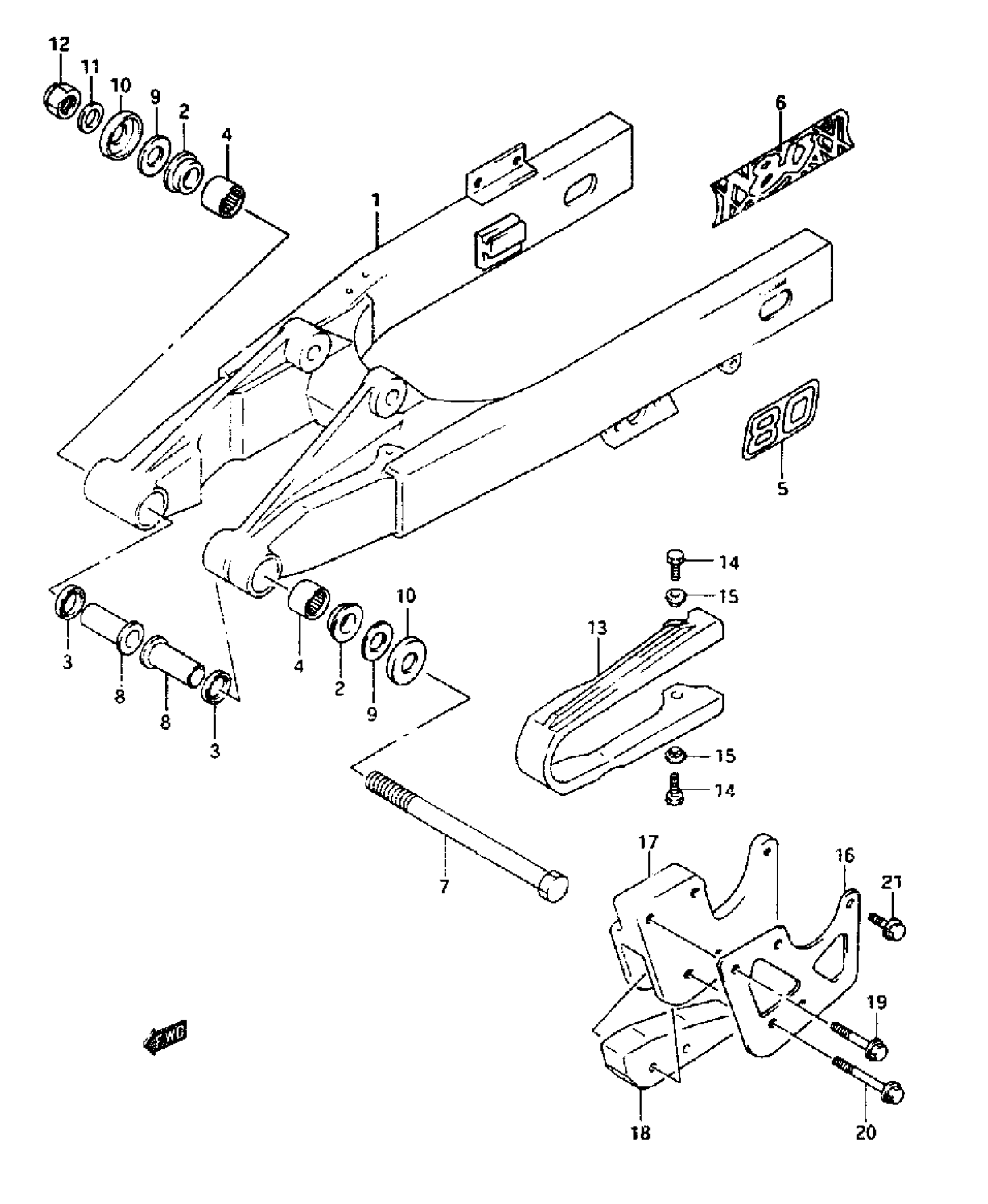

Suzuki RM80 (1995) REAR SWINGING ARM (MODEL M/N/P/R/S) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL M/N/P -O6LOO0-O3B21

61000-03B00

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL R -M-61000-03821 This part replaces 61000-03B20.

61000-03B21

Unavailable

1

SWINGING ARM ASSY, REAR | WITH OUT EMBLEM

61000-03B21

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL S

61000-03B21

Unavailable

2

BUSHING

61261-02B00

$22.22

3

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

4

BEARING

09263-17038

$25.60

5

EMBLEM (SILVER) | MODEL MIN/P

68381-03B00-12R

Unavailable

6

EMBLEM | MODEL R

68381-03B21-C2N

Unavailable

6

EMBLEM | MODEL 5

68381-03B21-D0K

Unavailable

7

SHAFT, PIVOT

61211-02B40

$23.32

8

SPACER, PIVOT

61251-02B40

$32.88

9

THRUST WASHER

08211-12282

$2.65

10

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

$11.18

11

WASHER | MODEL M/N/P This part replaces 08322-11128.

08322-01127

$1.84

11

WASHER | MODEL R/S This part replaces 08322-01123.

08322-0112B

$2.62

12

NUT This part replaces 08319-21128.

08319-2112A

$3.76

13

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

$40.15

14

BOLT | MODEL M/N/P

01547-06167

$1.65

14

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

15

WASHER

09169-06057

$3.18

16

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

17

GUIDE, CHAIN

61343-02B40

$41.68

18

DEFENSE, CHAIN GUIDE

61348-02B20

$18.40

19

BOLT, UPPER | MODEL M/N/P

01547-06307

$2.03

19

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

$2.73

20

BOLT, LOWER | MODEL M/N/P

01547-06407

$2.32

20

BOLT | MODEL R/S This part replaces 01547-06403.

01547-0640B

$2.75

21

BOLT, REAR | MODEL M/N/P

01547-06167

$1.65

21

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45
