Description

Price

1

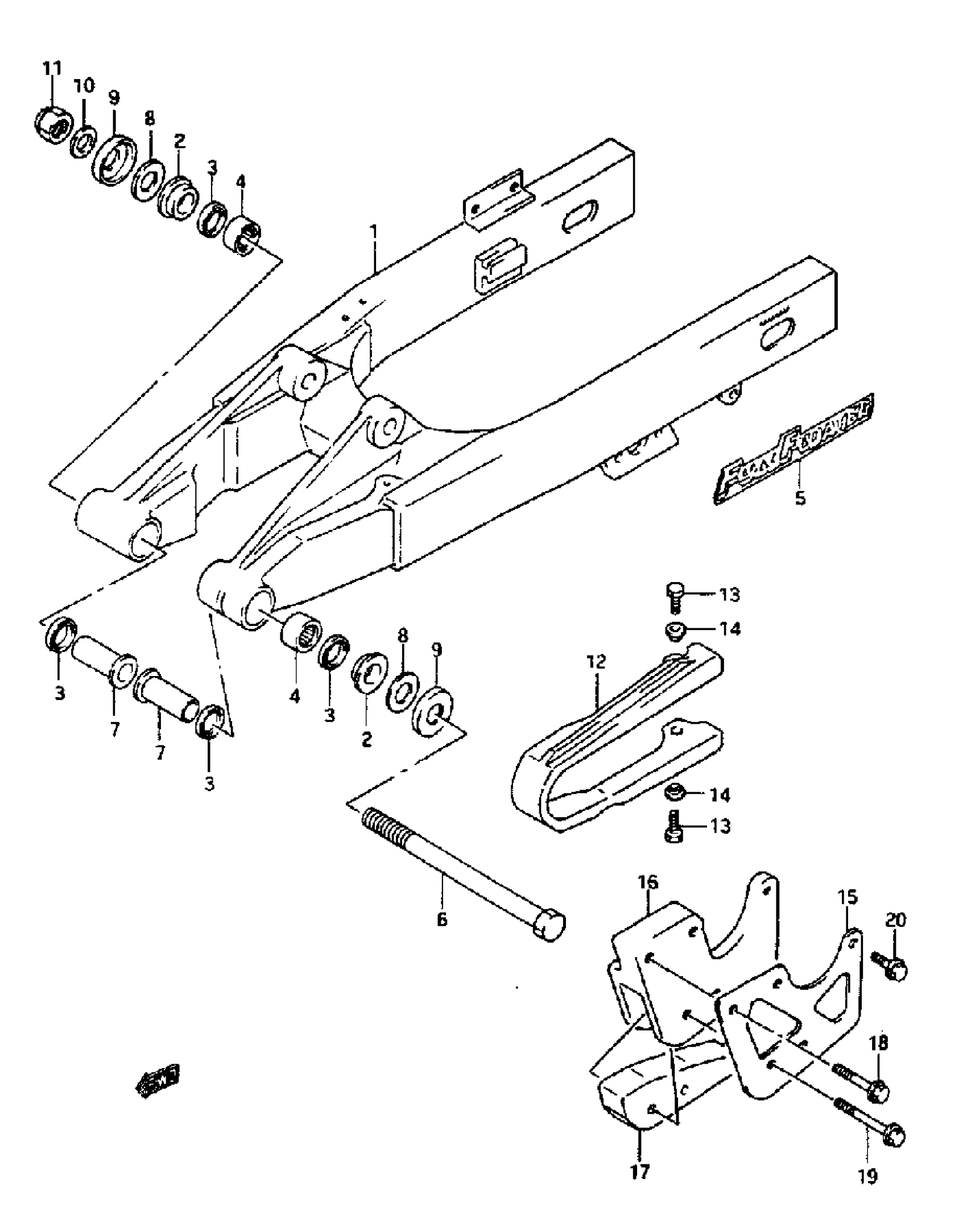

SWINGING ARM ASSY, REAR

61000-02B40

Unavailable

2

BUSHING

61261-02B00

$22.22

3

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

4

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

5

EMBLEM

68381-02B00-97J

Unavailable

6

SHAFT, PIVOT

61211-02B40

$23.32

7

SPACER

61251-02B40

$32.88

8

THRUST WASHER

08211-12282

$2.65

9

COVER SWGARM PIVOT This part replaces 61262-40200.

61262-03B01

$11.18

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

NUT This part replaces 08319-21128.

08319-2112A

$3.76

12

BUFFER, CHAIN DEFENSE

61273-02B20

$40.15

13

BOLT

01547-06167

$1.65

14

WASHER

09169-06057

$3.18

15

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

16

GUIDE, CHAIN

61343-02B40

$41.68

17

DEFENSE, CHAIN GUIDE

61348-02B20

$18.40

18

BOLT, UPPER

01547-06307

$2.03

19

BOLT, LOWER

01547-06407

$2.32

20

BOLT, REAR
