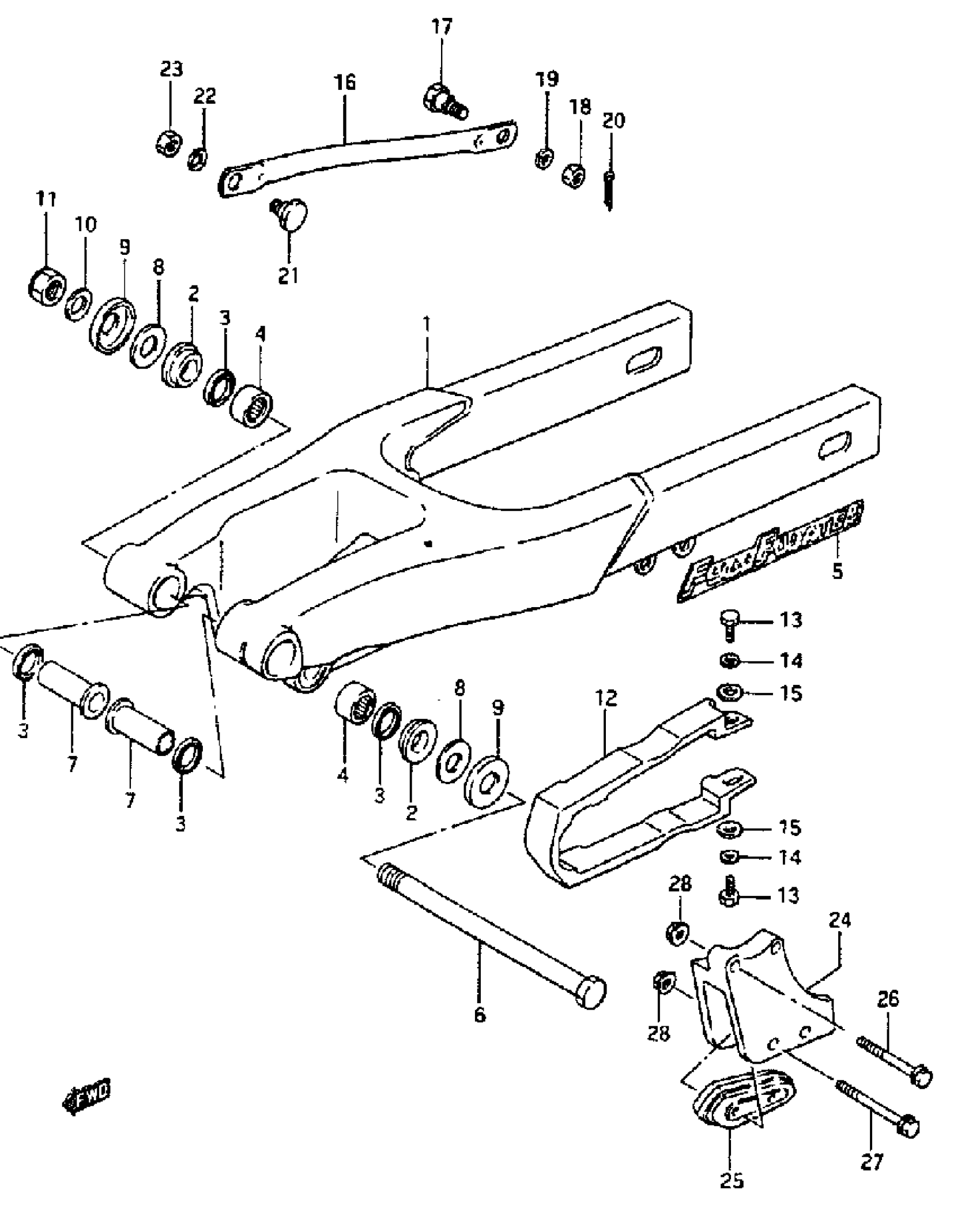

Suzuki RM80 (1995) REAR SWINGING ARM (MODEL G/H/J) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL G This part replaces 61000-02B10.

61000-02B13

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL H/3 -I, 61000-02BI3 W/61273-02020 W/01107-0 This part replaces 61000-02B11.

61000-02B13

Unavailable

3

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

4

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

5

EMBLEM

68381-03410-97J

Unavailable

6

SHAFT, PIVOT

61211-02B00

Unavailable

7

SPACER

61251-02B00

Unavailable

8

THRUST WASHER

08211-12282

$2.65

9

COVER SWGARM PIVOT This part replaces 61262-40200.

61262-03B01

$11.18

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

NUT This part replaces 08319-21128.

08319-2112A

$3.76

12

BUFFER, CHAIN DEFENSE

61273-02B00

Unavailable

13

BOLT This part replaces 01107-06127.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER

09160-06019

$1.49

16

TORQUE LINK, REAR (SILVER)

64311-02B00-13L

Unavailable

17

BOLT, REAR

09111-08048

Unavailable

18

NUT

09140-08008

$1.49

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

BOLT. FRONT

09111-08064

$4.50

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13

23

NUT This part replaces 08319-21088.

08319-2108A

$2.12

24

CHAIN. GUIDE

61342-02B02

Unavailable

25

DEFENSE. CHAIN GUIDE

61348-14110

Unavailable

26

BOLT This part replaces 01517-06358.

01550-06357

$2.77

27

BOLT This part replaces 01517-06456.

01550-0645A

$2.41

28

NUT

08319-31067

$2.03
