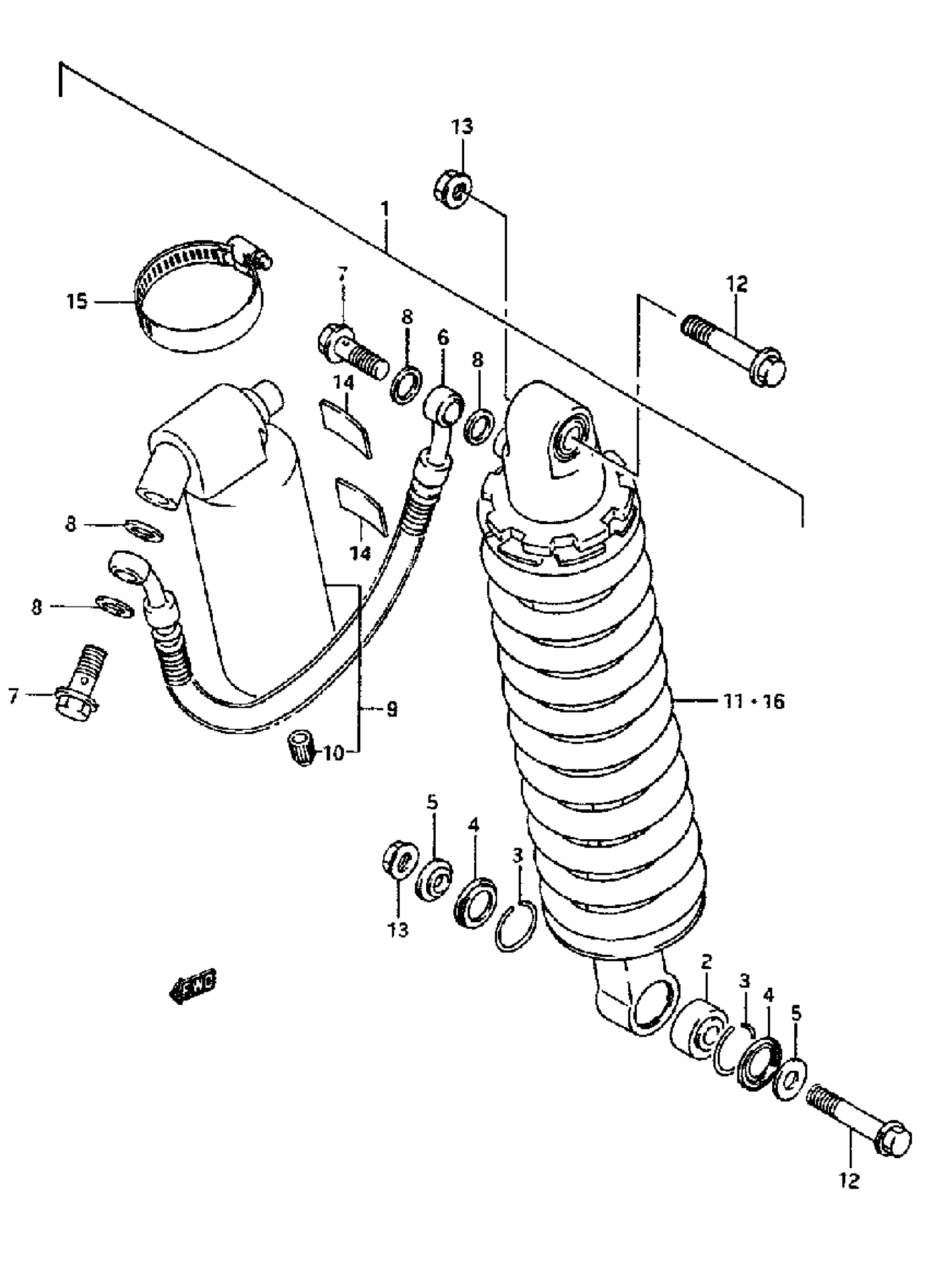

Suzuki RM80 (1995) REAR SHOCK ABSORBER (MODEL K) Diagram

Description

Price

ABSORBER ASSY, REAR SHOCK | YELLOW

62100-02B50-163

Unavailable

BEARING, REAR (10x24x14.5) This part replaces 62175-20920.

62175-00B00

$61.15

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$1.99

DUST SEAL

62226-02B00

$13.05

COLLAR

62684-31300

$12.40

HOSE

62280-02B50

Unavailable

BOLT

62281-20900

Unavailable

WASHER (10X15X1.5)

09161-10009

$1.84

TANK

62270-02B50

Unavailable

CAP

51294-20400

$7.37

SPRING

62211-02B50

Unavailable

BOLT

62648-14500

$4.34

NUT

08319-31107

$2.73

CUSHION

62423-02B00

Unavailable

CLAMP

09402-70503

$18.42

SPRING (HARD) | OPT

62211-02B60

Unavailable
