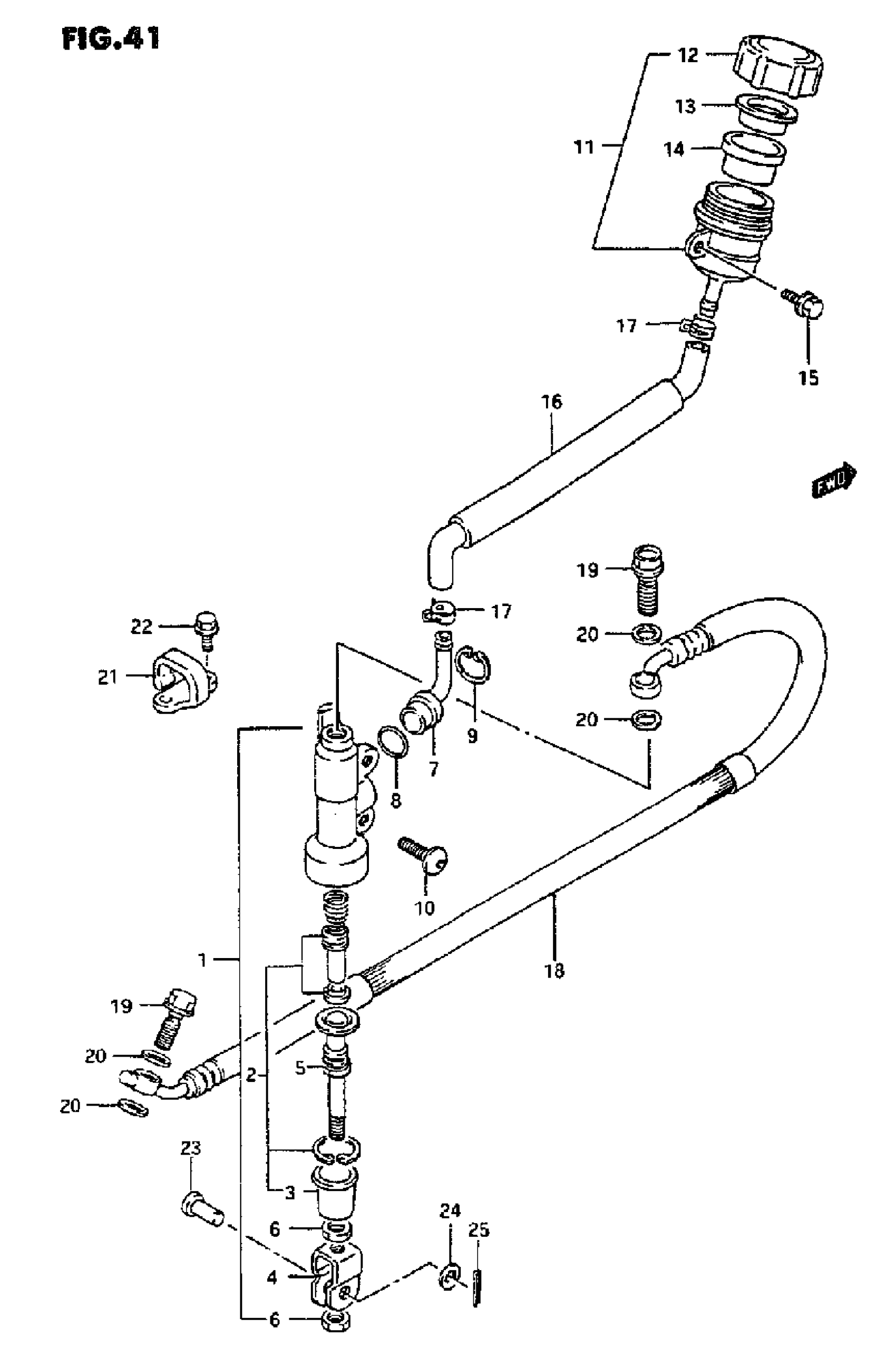

Suzuki RM80 (1995) REAR MASTER CYLINDER (MODEL L) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-02B40

Unavailable

2

.PISTON/CUP SET This part replaces 69600-16830.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-27A30

$26.23

6

NUT

69693-05A00

$1.96

7

XONNECTOR

69672-00B20

$7.01

8

0 RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW

09139-06030

$3.70

11

TAW ASSY, RESERVOIR

69740-05D00

Unavailable

12

CAP

69669-03D10

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRAGM

69667-00B20

$15.68

15

BOLT This part replaces 01517-06128.

01550-06127

$2.30

16

HOSE, RESERVOIR TANK

69731-02B41

Unavailable

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE This part replaces 69480-02B40.

69480-02B41

Unavailable

19

BOLT (LOXL.0OX24)

09360-10017

$3.42

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

CLAMP, REAR BRAKE HOSE

61196-00B21

$6.79

22

SCREW

09125-05042

$1.96

23

PIN

09200-08048

$2.92

24

WASHER

09160-08074

Unavailable

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
