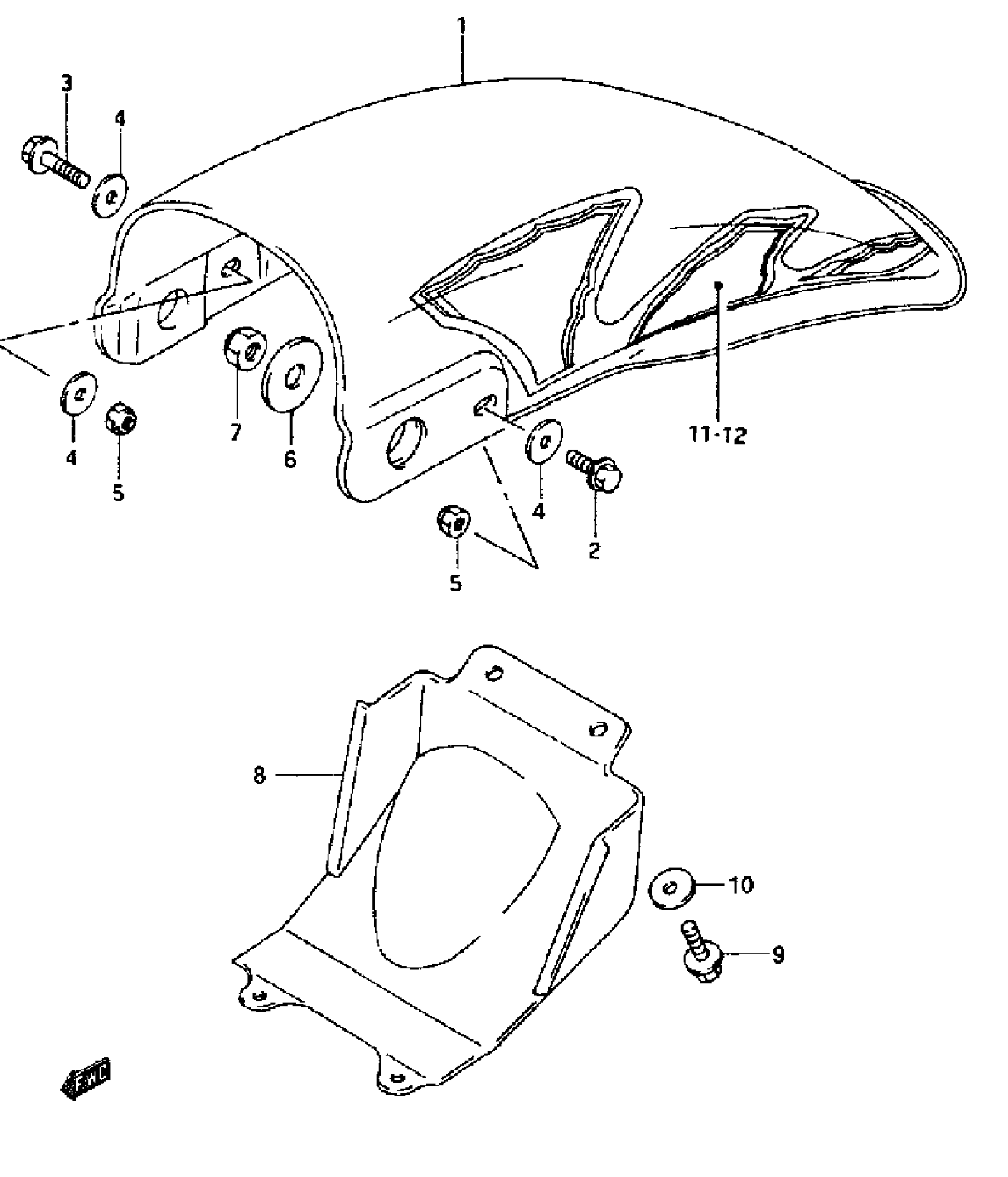

Suzuki RM80 (1995) REAR FENDER (MODEL N/P/R/S) Diagram

#

Description
Price

1

FENDER. REAR (WHITE) | MODEL N

63111-02B00-30H

Unavailable

1

FENDER, REAR (YELLOW) | MODEL P/R/S

63111-02B00-25Y

Unavailable

2

BOLT, LH | MODEL NIP

01547-06167

$1.65

2

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

3

BOLT. RH | MODEL NIP

01547-06307

$2.03

3

BOLT, FINAL GEAR CASE | MODET R/S This part replaces 01547-06303.

01547-0630B

$2.73

4

WASHER

09160-06066

$1.89

5

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

6

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

7

NUT

09159-10027

$3.10

8

HUD GUARD, REAR FENDER FRONT

63351-03B00

$34.87

9

BOLT | MODEL NIP

01547-06107

$1.65

9

BOLT | MODEL R/S This part replaces 01547-06103.

01547-0610B

$2.45

10

WASHER | MODEL N/P/R This part replaces 09169-06025.

09169-06010

$2.60

10

WASHER | MODEL S

09169-06010

$2.60

11

E143LEM, REAR FENDER RH | MODEL N

68175-03B00-1JH

Unavailable

12

EMBLEM, REAR FENDER LH | MODEL N

68176-03B00-1JH

Unavailable
