1995 Suzuki RM80 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

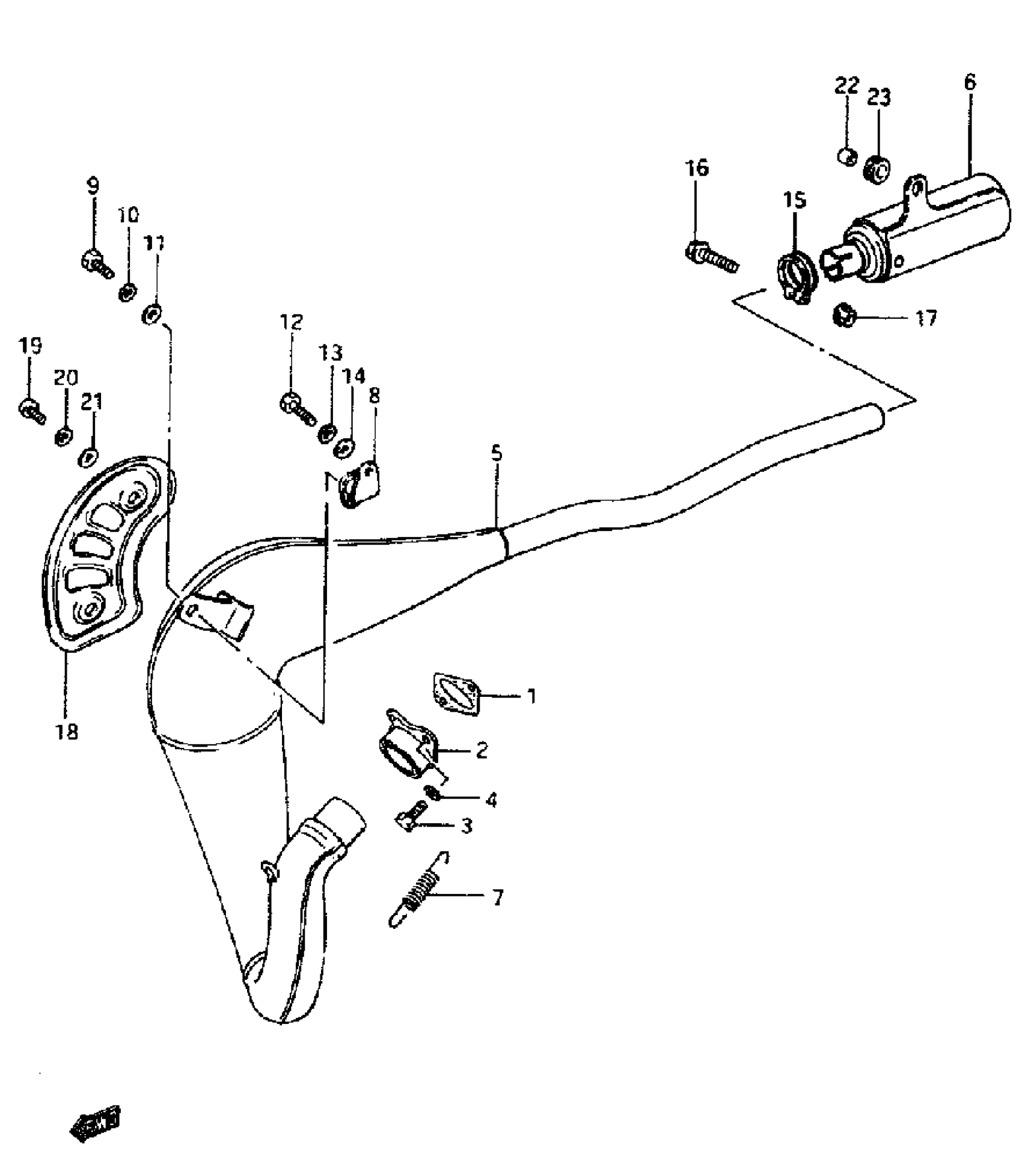

1995 Suzuki RM80 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, EXHAUST FLANGE

14181-02B00-H17

1
Out of stock

2

FLANGE, EXHAUST PIPE

14170-02B10

1
Out of stock

3

BOLT | MODEL G This part replaces 01107-06165.

01500-0616A

2
Out of stock

5

MUFFLER, 1ST | MODEL G/H This part replaces 14310-02B12-H01.

14310-02B13-H01

1
Out of stock

5

MUFFLER, LST | MODEL I

14310-02B13-H01

1
Out of stock

6

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 14330-02B15-H01.

14330-02B30

1
Out of stock

6

NO DESCRIPTION AVAILABLE | MODEL 3 This part replaces 14330-02B30-H01.

14330-02B30

1
Out of stock

7

SPRING

09443-12033

1
Out of stock

8

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

1
Out of stock

9

BOLT This part replaces 01107-06125.

01500-0612A

1
Out of stock

10

1

$1.97

In stock

11

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

12

BOLT This part replaces 01107-06165.

01500-0616A

1
Out of stock

13

1

$1.97

In stock

14

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

15

CLAW

14772-20401

1
Out of stock

16

BOLT This part replaces 01517-06257.

01550-06257

1
Out of stock

17

NUT This part replaces 08316-26068.

08316-2006A

1
Out of stock

18

COVER, MUFFLER

14781-20910

1
Out of stock

19

SCREW This part replaces 02112-06104.

02112-0610B

2
Out of stock

20

2

$1.97

In stock

21

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock

22

SPACER This part replaces 09180-06152.

09180-06262

1
Out of stock

23

CUSHION

09320-08037

1
Out of stock
← Muffler Muffler →
