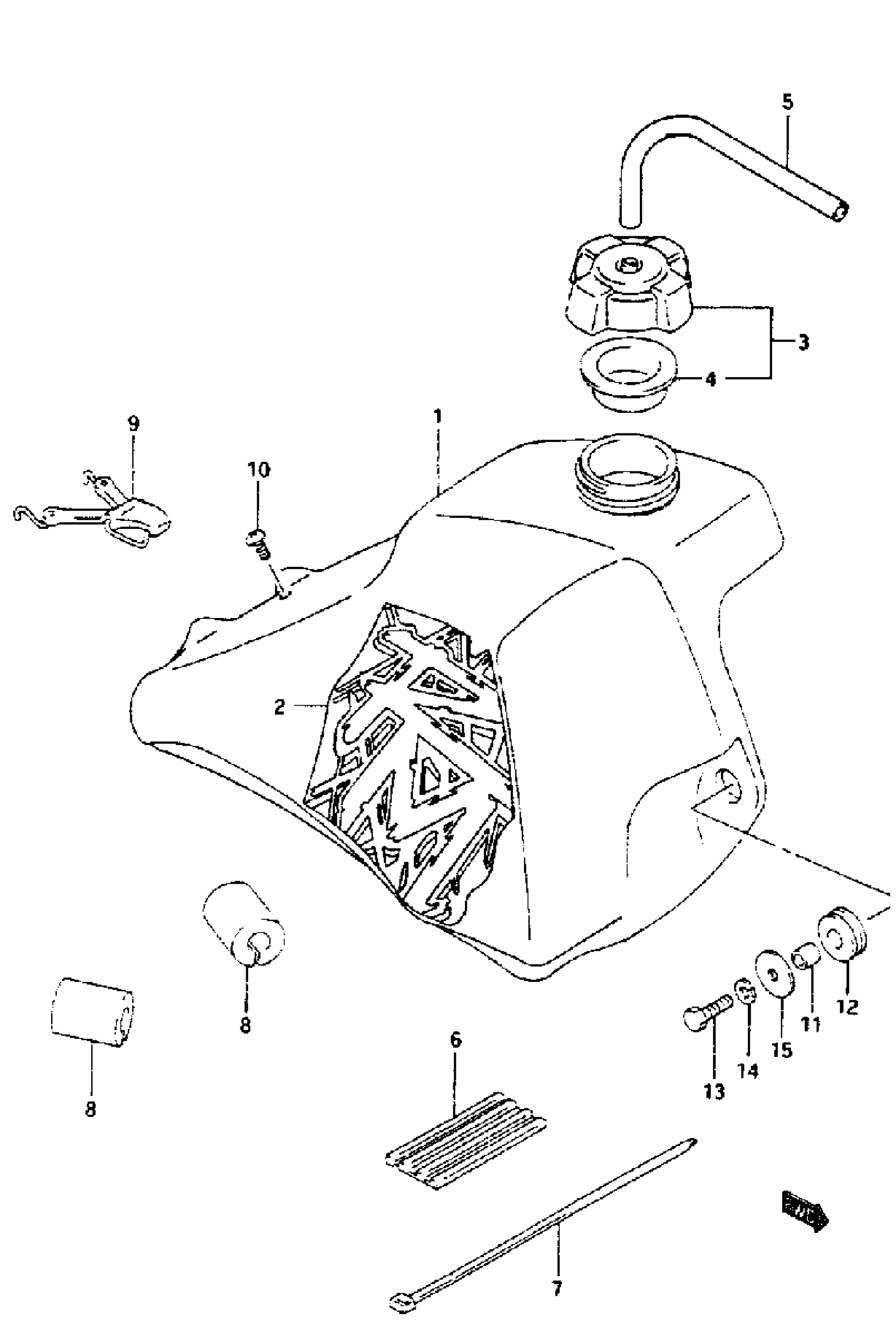

Suzuki RM80 (1995) FUEL TANK (MODEL R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44101-02840-25Y.

44101-02841-25Y

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 44101-02850-2TX.

44101-02851-2TX

Unavailable

2

EMBLEM | MODEL R

68111-03B30-C2M

Unavailable

2

EMBLEM | MODEL S

68111-03B30-D0J

Unavailable

3

CAP SET,FUEL TA | MODEL R This part replaces 44200-14820.

44200-27871

$22.96

3

CAP SET,FUEL TA | MODEL S This part replaces 44200-27860.

44200-27871

$22.96

4

GASKET | MODEL R This part replaces 44248-40400.

44248-05211

$3.76

4

GASKET,FUEL TANK FILLER CAP | MODEL S This part replaces 44248-27C00.

44248-27C01

$4.21

5

HOSE,5X10X600 | MODEL R This part replaces 09352-50823-300.

44421-13ER0

$10.06

5

HOSE,5X10X600 | MODEL S This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

CUSHION, UPPER FRONT

44541-14300

$8.12

7

CLAMP | MODEL R This part replaces 09407-20401.

09407-25402

$4.64

7

CLAMP | MODEL 5 This part replaces 09407-20404.

09407-25402

$4.64

8

CUSHION, UPPER REAR

44542-17300

$8.12

9

BJAND, REAR

44560-26C00

$16.25

10

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

11

SPACER,7.2X10X1 | MODEL R This part replaces 09180-06006.

09180-07019

$2.63

11

SPACER | MODEL 5 This part replaces 09180-06112.

09180-06289

$2.56

12

CUSHION This part replaces 09320-10029.

09320-10080

$7.80

13

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

14

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

15

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

$1.86
