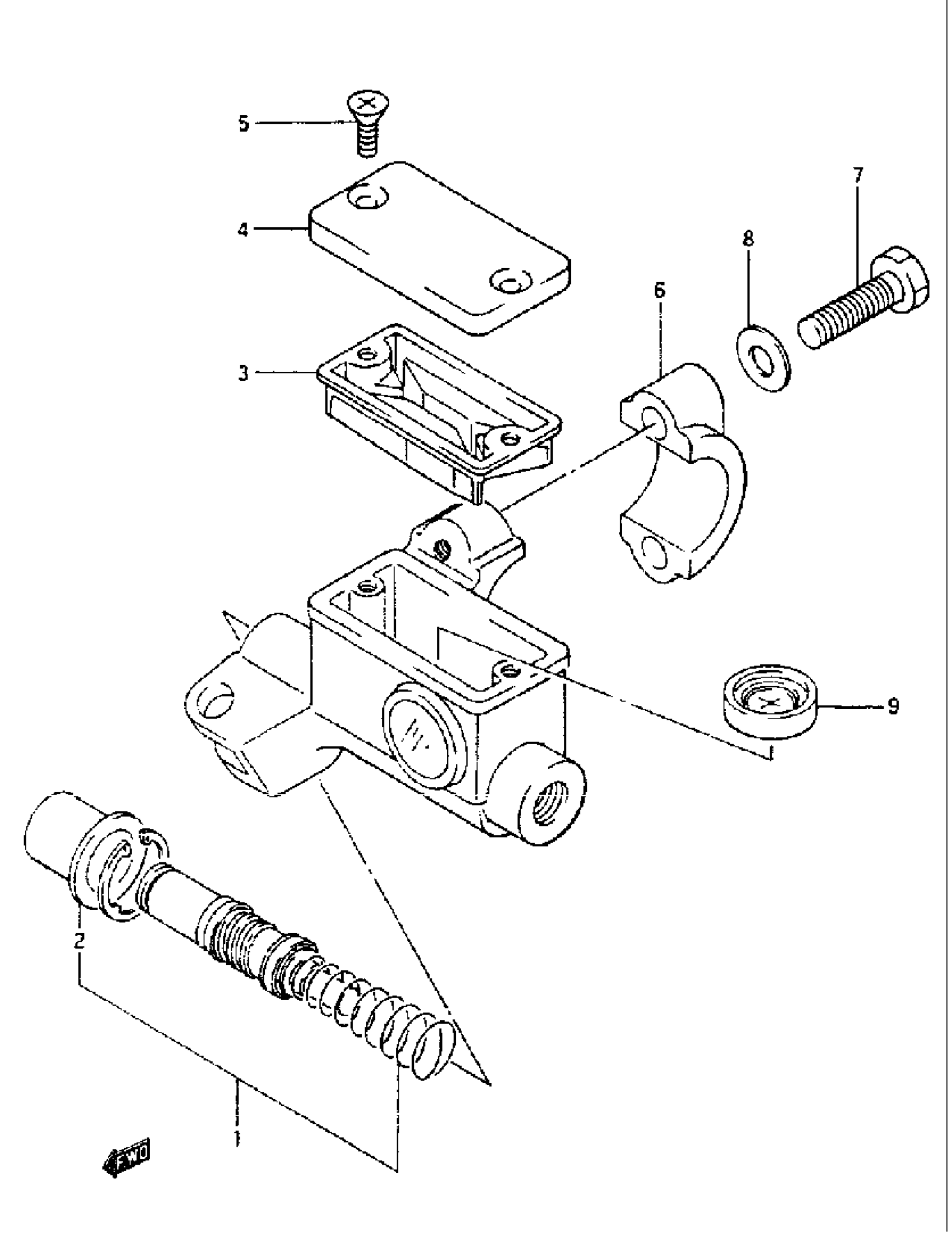

Suzuki RM80 (1995) FRONT MASTER CYLINDER (MODEL G/H/J) Diagram

#

Description

Price

1

CYLINDER ASSY, FRONT MASTER | MODEL G/H - 59600-02901 This part replaces 59600-02B00.

59600-27C01

$292.48

1

CYLINDER ASSY, FRONT MASTER | MODEL 3 This part replaces 59600-02B01.

59600-27C01

$292.48

1

.PISTON/CUP SET | MODEL G/H This part replaces 59600-03810.

59600-03820

$42.02

1

.PISTON/CUP SET | MODEL J This part replaces 59600-02820.

59600-03820

$42.02

2

BOOT

59666-44300

$5.80

3

DIAPHRAGM

59667-14500

$10.12

4

CAP This part replaces 59669-14500.

59669-27C01

$23.32

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-14500

Unavailable

7

BOLT, GEAR SHIFT ARM | MODEL G/H This part replaces 01107-06255.

01500-0625A

$1.78

7

BOLT | MODEL 3

01204-06255

Unavailable

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

9

SEPARATOR

59748-14500

$11.87
