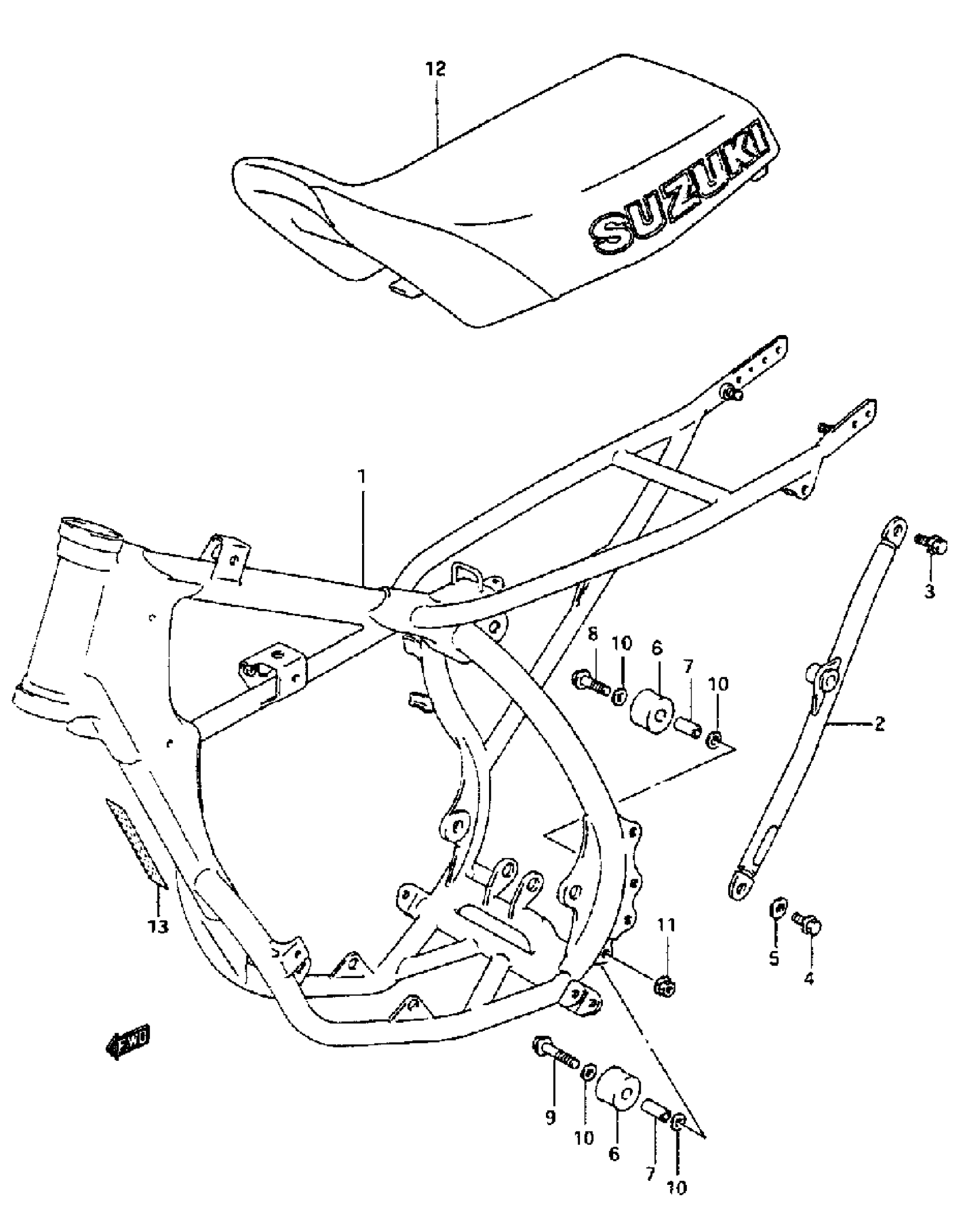

Suzuki RM80 (1995) FRAME - SEAT (MODEL P\R\S) Diagram

#

Description

Price

1

FRAME (CHARCOAL)

41100-03B10-24K

Unavailable

2

TUBE, FRAME SIDE LH (CHARCOAL)

41670-02B30-24K

Unavailable

3

BOLT, UPPER

09100-08274

$3.78

4

BOLT, LOWER

09100-08284

$3.87

5

WASHER (8.5X18X2.0) This part replaces 09160-08042.

09160-08120

$2.19

6

ROLLER. CHAIN CONTROL

43911-35B00

$19.98

7

SPACER This part replaces 09180-08119.

09180-08156

$6.70

8

BOLT, UPPER

09103-08083

$3.70

9

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.49

10

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

11

NOT

08319-31087

$2.32

12

SEAT ASSY

45100-03B00-A5K

Unavailable

13

PLATE, WARNING

68372-02B31

Unavailable
