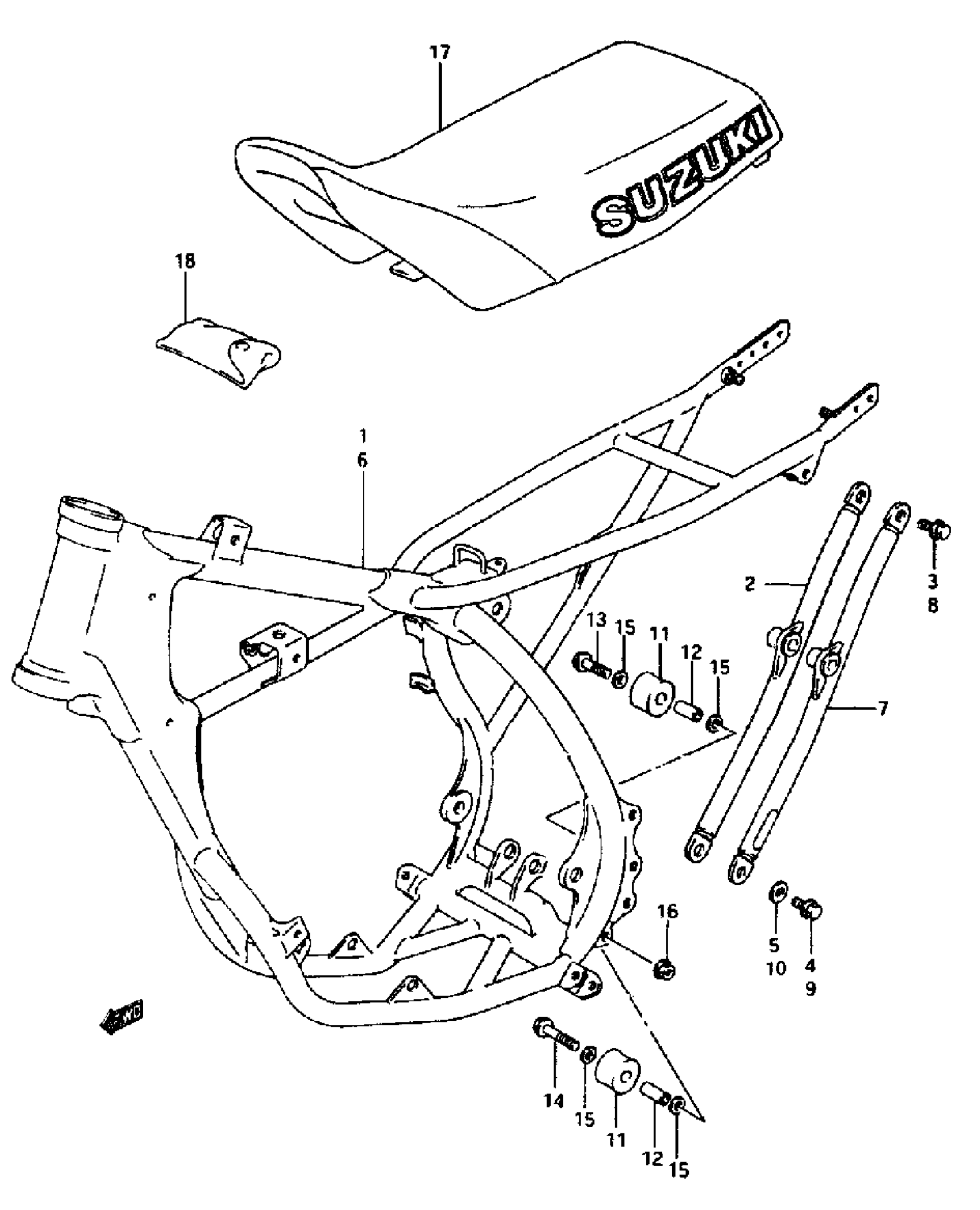

Suzuki RM80 (1995) FRAME - SEAT (MODEL H/J/K/L) Diagram

#

Description
Price

1

FRAME SET (BLUE) | MODEL H This part replaces 41100-02B10-19F.

41100-02880-19F

Unavailable

1

FRAME SET (BLUE) | MODEL J This part replaces 41100-02B11-19F.

41100-02880-19F

Unavailable

2

TUBE, FRAME SIDE LH | MODEL H/J

41670-02B10

Unavailable

3

BOLT (8X20) | MODEL H/J This part replaces 09103-08055.

09103-08505

$3.58

4

BOLT, LOWER | MODEL H

09103-08147

$3.72

4

BOLT (8X16) | MODEL I This part replaces 09100-08267.

09100-08284

$3.87

5

WASHER (8.5X18X2.0) | MODEL H/I This part replaces 09160-08042.

09160-08120

$2.19

6

FRAME SET (BLUE) | MODEL K

41100-02880-19F

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 41100-02890-19F.

41101-03810-19F

Unavailable

7

TURE. FRAME SIDE LN (BLUE) | MODEL K

41670-02B20-19F

Unavailable

7

TUBE, FRAME SIDE LH (BLUE) | MODEL L

41670-02B30-19F

Unavailable

8

BOLT (8X20) | MODEL K/L This part replaces 09103-08055.

09103-08505

$3.58

9

BOLT (8X16) | MODEL K/L This part replaces 09100-08267.

09100-08284

$3.87

10

WASHER (8.5X18X2.0) | MODEL K/L This part replaces 09160-08042.

09160-08120

$2.19

11

ROLLER, CHAIN CONTROL

43911-35B00

$19.98

12

SPACER This part replaces 09180-08119.

09180-08156

$6.70

13

BOLT, UPPER

09103-08083

$3.70

14

BOLT, LOWER | MODEL H/J

09103-08043

$3.18

14

BOLT (8X50) | MODEL K

09103-08081

$3.72

14

.BOLT (8X55) | MODEL L This part replaces 09103-08170.

09103-08339

$3.49

15

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

16

MT

08319-31087

$2.32

17

SEAT ASSY (BLUE) | MODEL H This part replaces 45100-02B10-4UZ.

45100-02B21-4UZ

Unavailable

17

SEAT ASSY (BLUE) | MODEL J/K This part replaces 45100-02B20-4UZ.

45100-02B21-4UZ

Unavailable

17

SEAT ASSY (BLUE) | MODEL L

45100-02B21-4UZ

Unavailable

18

TOOL ASSY | MODEL H This part replaces 09800-00310.

09800-21059

Unavailable

18

TOOL ASSY | MODEL J This part replaces 09800-20011.

09800-21059

Unavailable
