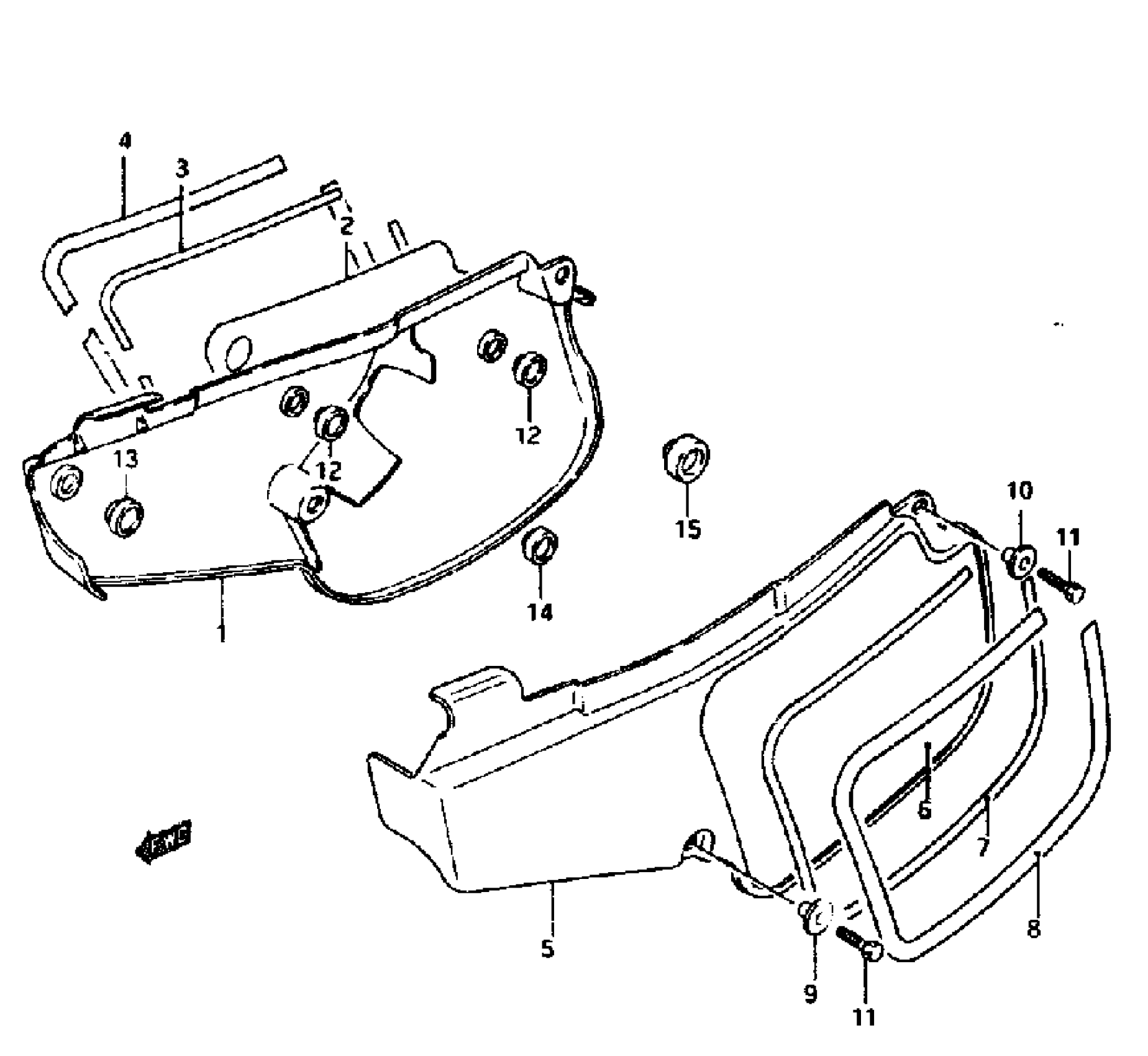

Suzuki RM80 (1995) FRAME COVER (MODEL G/H/J/K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 47111-02B00-163.

47111-02B03-25Y

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/3 This part replaces 47111-02B00-25Y.

47111-02B03-25Y

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47111-02B01-25Y.

47111-02B03-25Y

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47111-02B02-25Y.

47111-02B03-25Y

Unavailable

2

EMBLEM, RH (BLACK) | MODEL G/H/J

68132-02B00-291

Unavailable

3

EMBLEM. RH (BLUE) | MODEL K

68132-02B10-33N

Unavailable

4

EMBLEM, RH (BLUE) | MODEL L

68132-02B20-34S

Unavailable

5

COVER, FRAME LH (YELLOW) | MODEL G This part replaces 47211-02B00-163.

47211-02B01-25Y

Unavailable

5

COVER, FRAME LH (YELLOW) | MODEL H/J1K This part replaces 47211-02B00-25Y.

47211-02B01-25Y

Unavailable

5

COVER, FRAME LH (YELLOW) | MODEL L

47211-02B01-25Y

Unavailable

6

EMBLEM. LH (BLACK) | MODEL G/H/J

68142-02B00-291

Unavailable

7

EMBLEM, LH (BLUE) | MODEL K

68142-02B10-33N

Unavailable

8

EMBLEM, LH (BLUE) | MODEL L

68142-02B20-34S

Unavailable

9

WASHER. LOWER

09169-06010

$2.60

10

SPACER This part replaces 09169-06050.

09169-06065

$4.32

11

BOLT, GEAR SHIFT ARM This part replaces 01107-06256.

01500-0625A

$1.78

12

CUSHION | MODEL G/H/J/K This part replaces 09321-10013.

09321-10018

$5.45

13

CUSHION, RH FRONT | MODEL G/H/J

09321-10019

$4.90

13

CUSHION, RH FRONT | MODEL K/L

09321-10024

$5.29

14

CUSHION, RH MIDDLE | MODEL L

09321-10018

$5.45

15

CUSHION, RH FRONT | MODEL L This part replaces 09321-10020.

09321-10024

$5.29
