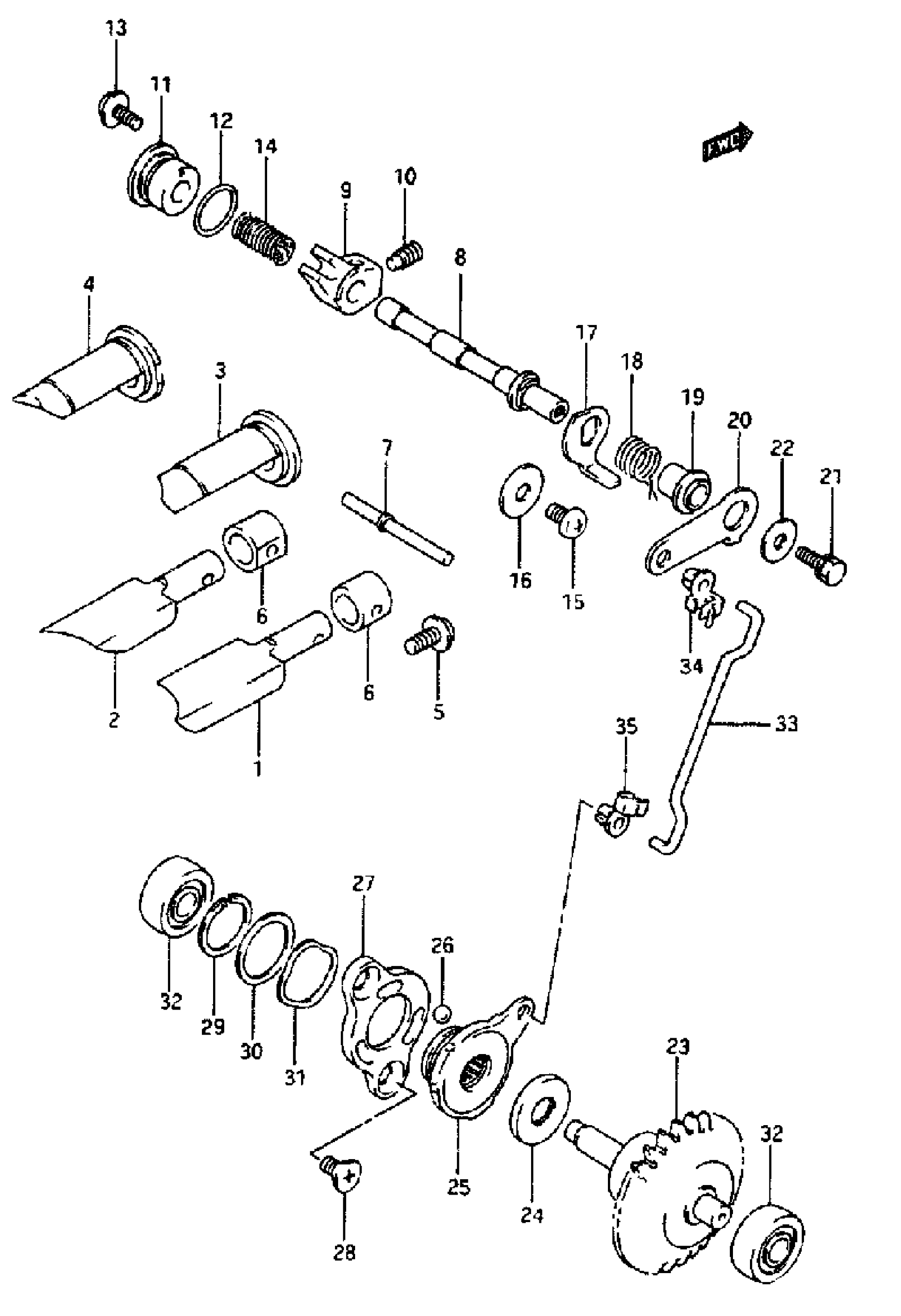

Suzuki RM80 (1995) EXHAUST VALVE (MODEL K/L/M/N/P/R/S) Diagram

#

Description
Price

1

VALVE, EXHAUST RH

11254-02B40

Unavailable

2

VALVE, EXHAUST LH

11255-02B40

Unavailable

3

GUIDE, EXHAUST VALVE RH

11261-02B40

Unavailable

4

GUIDE, EXHAUST VALVE LH

11262-02B40

Unavailable

5

SCREW | MODEL K/L/M/N/P This part replaces 02112-15128.

02142-05127

$1.97

5

.SCREW | MODEL R/S This part replaces 02112-15123.

02142-0512A

$1.49

6

SPACER, EXHAUST VALVE

11263-01B30

Unavailable

7

PIN This part replaces 11253-01B31.

11253-01B32

$24.17

8

SHAFT, EXHAUST VALVE

11259-02B40

Unavailable

9

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B23.

11264-00B24

$23.32

10

SCREW

09134-06013

$3.87

11

CAP, EXHAUST VALVE

11258-02B40

$76.63

12

O RING (D:1.9 ID:14.5) | MODEL K/L/M/N/PIR This part replaces 09280-15011.

09280-15006

$2.90

12

0 RING | MODEL S

09280-15006

$2.90

13

SCREW | MODEL K/L/M/N/P This part replaces 02112-15128.

02142-05127

$1.97

13

BOLT | MODEL R/S This part replaces 01560-05123.

01550-0512B

$2.87

14

SPRING

09448-10004

$5.55

15

SCREW | MODEL K/L/M/N/P

02112-06087

$1.49

15

SCREW | MODEL R/S This part replaces 02112-06083.

02112-0608A

$1.72

16

WASHER

08212-06201

$1.67

17

LEVER, EXHAUST VALVE NO.2 | MODEL K/L/M/N/P This part replaces 11267-00B20.

11267-00B21

$4.46

17

LEVER, EXHAUST VALVE N0.2 | MODEL R/S

11267-00B21

$4.46

18

SPRING

09444-15008

$4.64

19

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

20

LEVER, EXHAUST VALVE NO.1 | MODEL KIL/M/N This part replaces 11266-00B20.

11266-00B21

$3.43

20

LEVER. EXHAUST VALVE NO.1 | MODEL P/R/S

11266-00B21

$3.43

21

BOLT This part replaces 01570-05123.

01570-0512B

$2.52

22

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

23

GOVERNOR ASSY, EXHAUST VALVE This part replaces 12670-02B40.

12670-02B41

$131.98

24

BEARING

09263-10002

$10.19

25

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

26

BALL

06111-06003

$1.49

27

STATOR, ACTUATOR

12682-01B02

$36.17

28

SCREW (5X10)

09120-05003

$1.91

29

CIRCLIP

09380-19003

$2.15

30

SHIM (19.1X25X0.3)

09181-19004

$3.78

31

LOCK WASHER

09164-19001

$4.69

32

BEARING

09262-08005

$12.67

33

ROD, EXHAUST VALVE

12685-02B40

$4.73

34

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

35

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65
