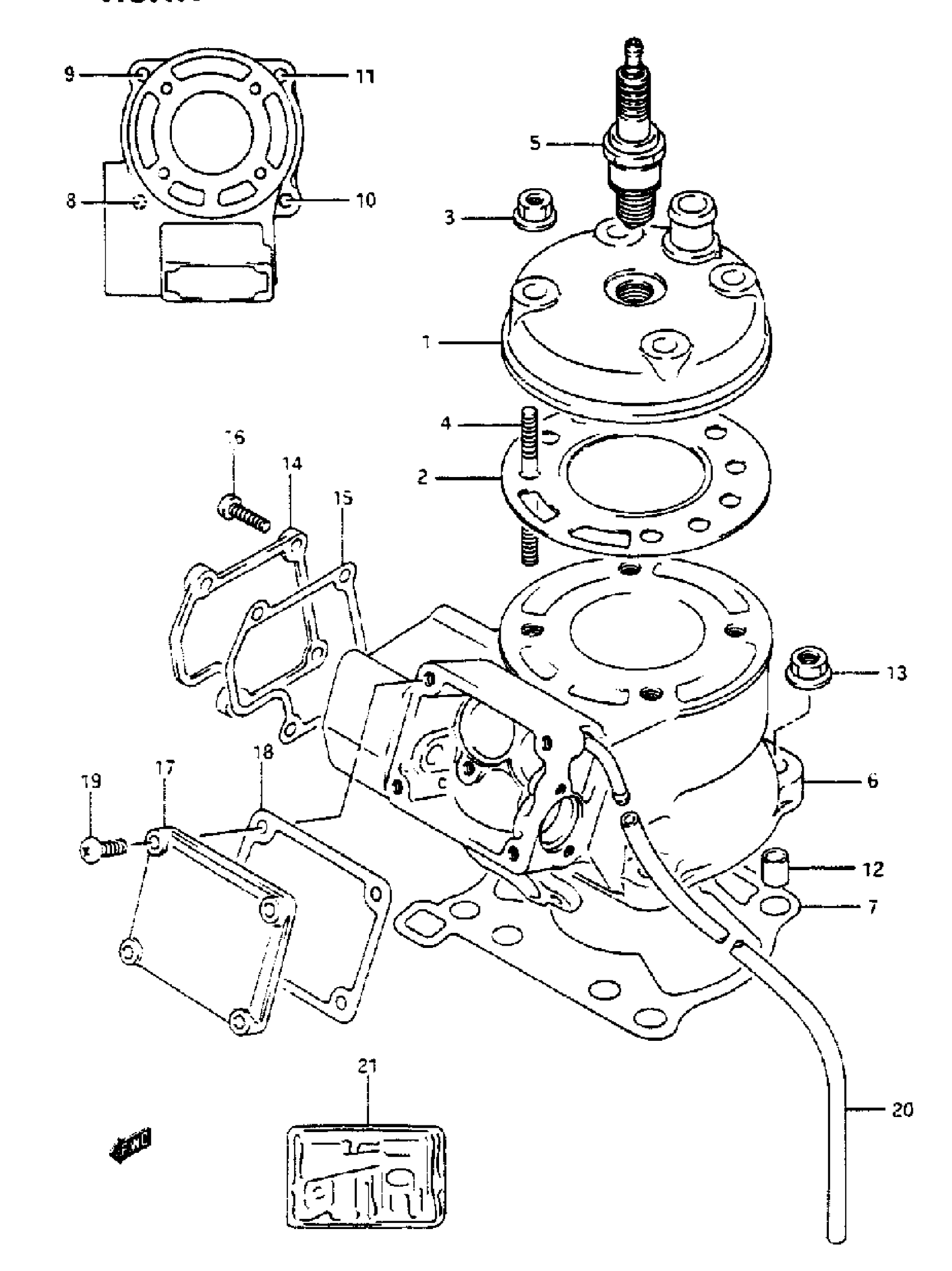

Suzuki RM80 (1995) CYLINDER (MODEL K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11111-02B41.

11111-02B43

Unavailable

2

GASKET, CYLINDER HEAD This part replaces 11141-02B02.

11141-02B60

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STW BOLT (8X35)

09108-08198

$3.23

5

SPARK PLUG (NGK, 89E5)

09482-00351

$2.86

5

SPARK PLUG (ND, W27ES)

09482-00160

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 11200-02810.

11200-02812

Unavailable

7

GASKET, CYLINDER This part replaces 11241-02B40.

11241-03B01

$8.34

8

BOLT,T/M SIDE M This part replaces 09108-08200.

09108-08255

$3.93

9

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

10

STUD BOLT (8X3O)

09108-08142

$3.18

11

STUD BOLT MM

09108-08220

$3.18

12

PIN

04211-11149

$1.78

13

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

14

COVER, CYLINDER NO.1

11231-02B40

$33.75

15

GASKET, CYLINDER COVER NO.1 This part replaces 11233-02B40.

11233-02B42

$6.22

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

COVER, CYLINDER NO.2 This part replaces 11248-12C00.

11248-12C01

$33.93

18

GASKET. CYLINDER COVER NO.2

11238-01B30-H17

$4.03

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

HOSE 4X7X600 | L, 600 250 This part replaces 09352-40703-600.

09352-40706-600

$5.11

21

GASKET SET | OPT This part replaces 11401-02830.

11401-02836

Unavailable
