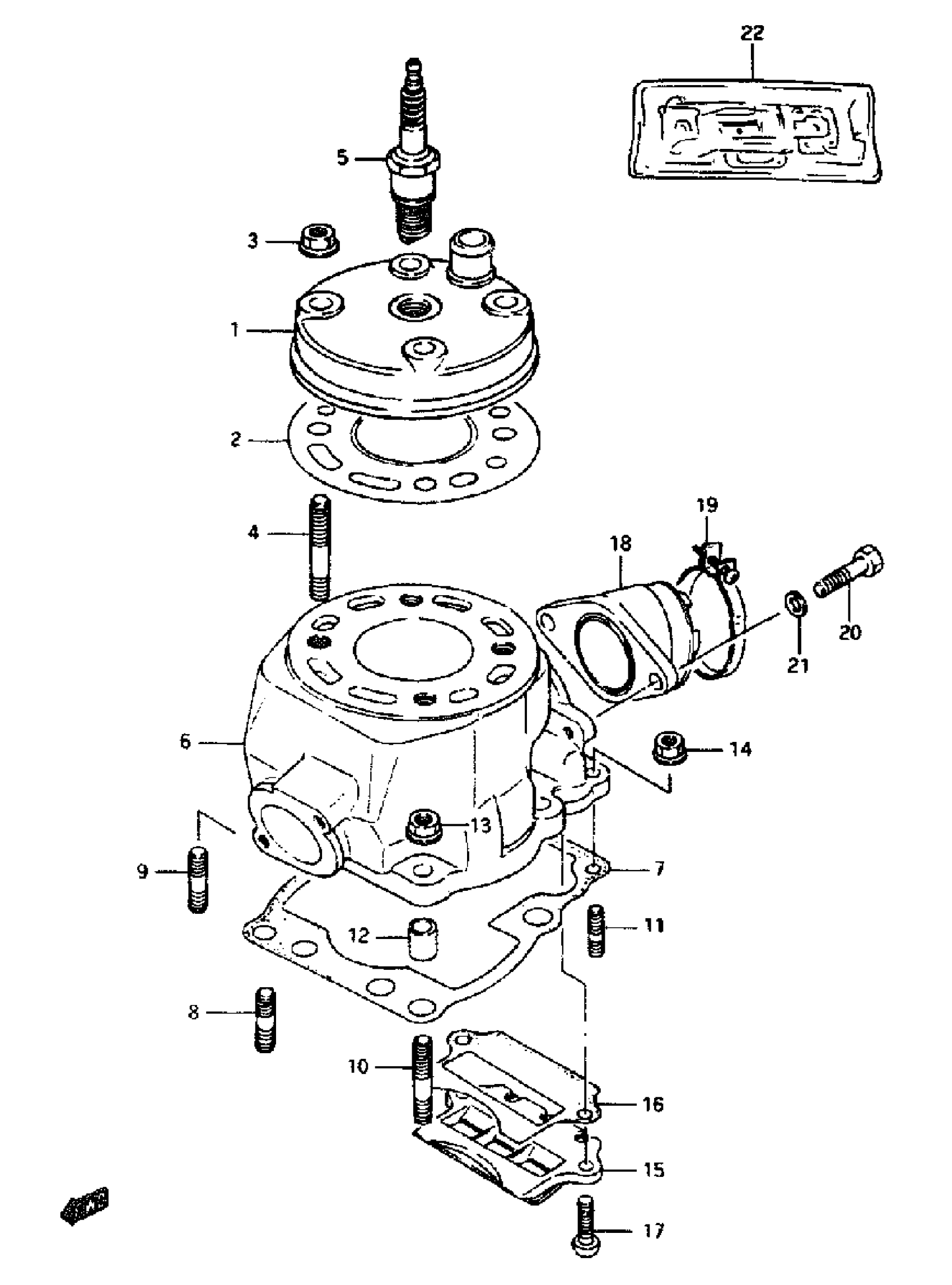

Suzuki RM80 (1995) CYLINDER (MODEL G/H/J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11111-02B01.

11111-02B02

Unavailable

2

GASKET, CYLINDER HEAD This part replaces 11141-02B02.

11141-02B60

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT (L:35) This part replaces 09108-08201.

09108-08143

$3.78

5

SPARK PLUG (NGK.B%S)

09482-00351

$2.86

5

SPARK PLUG (ND, W27ES)

09482-00160

Unavailable

6

CYLINDER | MODEL G/H This part replaces 11210-02B05.

11210-02B21-0F0

Unavailable

6

CYLINDER | MODEL 3

11210-02B21-0F0

Unavailable

7

GASKET,CYLINDER This part replaces 11241-02B00.

11241-02B00-H17

$19.30

8

BOLT,T/M SIDE M This part replaces 09108-08200.

09108-08255

$3.93

9

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.91

10

STUD BOLT (L:30) This part replaces 09108-08214.

09108-08142

$3.18

11

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

12

PIN

04211-11149

$1.78

13

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

14

NUT This part replaces 09159-06017.

08319-31067

$2.03

15

VALVE ASSY, REED | MODEL G/H This part replaces 13150-02B01.

13150-02B10

Unavailable

15

VALVE ASSY. REED | MODEL 3

13150-02B10

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 13156-02B00.

13156-02B00-H17

Unavailable

17

10%W

02112-06167

$1.49

18

PIPE, INTAKE

13110-02B01

Unavailable

19

CLAMP This part replaces 09402-42306.

09402-42303

$4.77

20

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

21

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 11401-02823.

11401-02825

Unavailable
