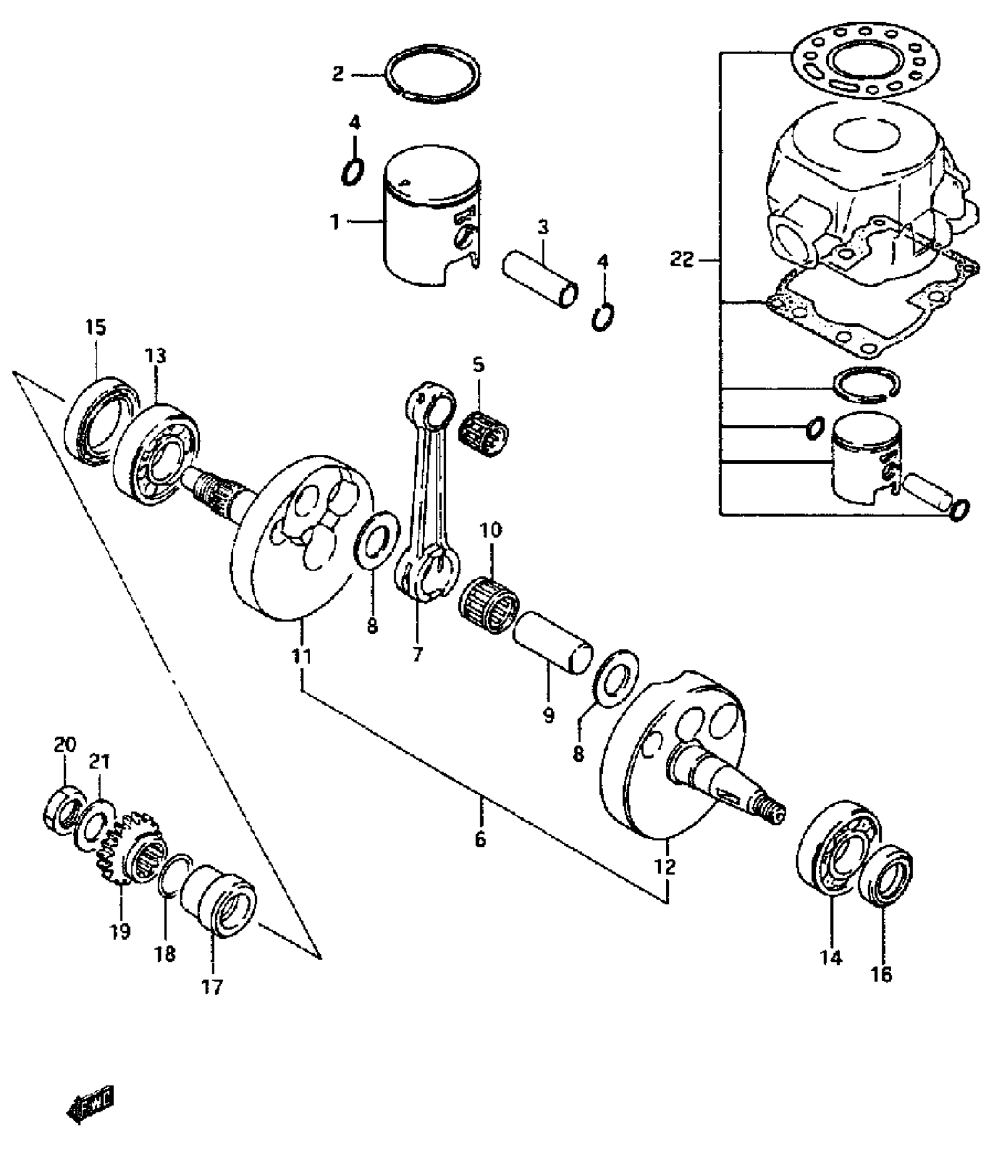

Suzuki RM80 (1995) CRANKSHAFT (MODEL J) Diagram

#

Description
Price

1

PISTON (STD) This part replaces 12110-02B21-0F0.

12110-02B22-0F0

Unavailable

1

PISTON SET | OFT This part replaces 12110-02B21-050.

12103-02811-050

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-02B21-100.

12103-02811-100

Unavailable

2

RING, PISTON This part replaces 12141-02B50.

12141-02B70

$29.65

2

RING, PISTON (05:0.5) | OFT

12141-02B50-050

Unavailable

2

RING, PISTON (OS:1.0) | OPT

12141-02B50-100

Unavailable

3

PIN, PISTON

12151-20910

$15.70

4

RING

09381-14001

$1.49

5

BEARING, PISTON PIN

09263-14016

$13.52

6

CRANKSHAFT ASSY

12200-02B10

Unavailable

7

ROD, CONNECTING

12161-02B10

Unavailable

8

WASHER

09160-18023

Unavailable

9

PIN, CRANK This part replaces 12211-20901.

12211-02B42

Unavailable

10

BEARING This part replaces 09263-18026.

09263-18026-0C0

Unavailable

11

CRANKSHAFT, RH

12221-02B10

Unavailable

12

CRANKSHAF1, LH

12261-02B10

Unavailable

13

BEARING, RH (2OX52XL5)

09262-20082

$30.63

14

BEARING, LH (2UX47XL4)

09262-20083

Unavailable

15

OIL SEAL, RH (32X52X8.4)

09289-32003

$14.73

16

OIL SEAL. LH (L8X3OX8)

09283-18004

$5.24

17

SPACER, PRI DRIVE GEAR

12359-02B00

Unavailable

18

0 RING

09280-20004

$1.58

19

GEAR, PRITMRY DRIVE (W:18)

21111-02B01

Unavailable

20

NUT

09140-16024

Unavailable

21

WASHER

09164-16002

$3.16

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-02871.

12101-02872

Unavailable

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-02871-050.

12101-02872-050

Unavailable
