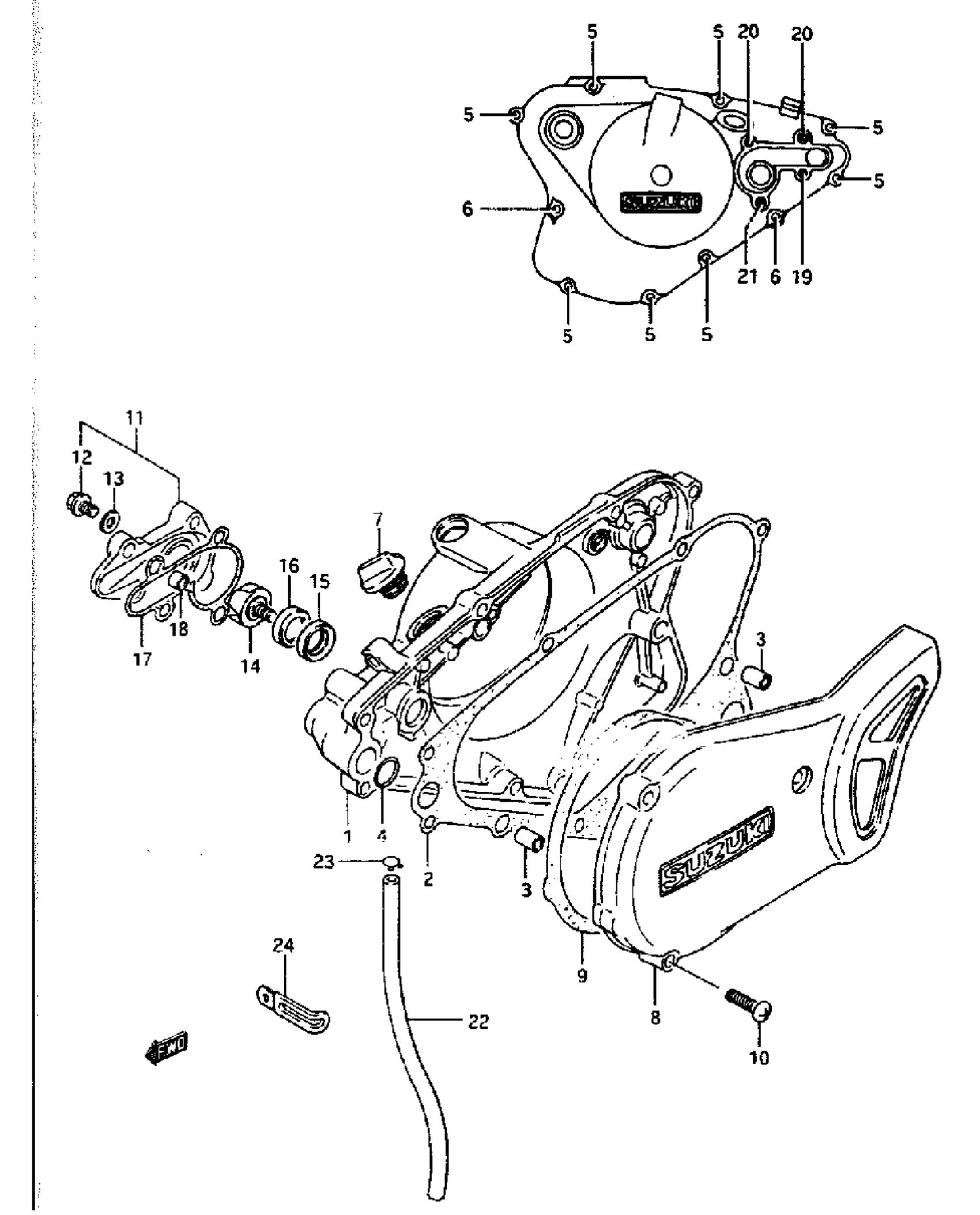

Suzuki RM80 (1995) CRANKCASE COVER - WATER PUMP (MODEL G/H/J) Diagram

#

Description
Price

1

COVER SETP CLUTCH

11340-02821

Unavailable

2

GASKET,CL COVER This part replaces 11482-02B00.

11482-02B00-H17

Unavailable

3

PIN

04211-09129

$1.65

4

O RING(D:1.9,ID This part replaces 09280-15002.

09280-15024

$3.60

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW

02112-06357

$1.78

7

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

8

COVER, MAGNETO This part replaces 11351-02B00.

11351-02B41

Unavailable

9

GASKET, MAGNETO COVER This part replaces 11483-02B01.

11483-02B50

Unavailable

10

SCREW This part replaces 02112-06258.

02112-06257

$1.78

11

CASE, WATER PUMP

17410-02B02

Unavailable

12

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$4.35

13

GASKET This part replaces 17413-00B00.

17413-28C10

$2.14

14

IMPELLER

17491-02B02

Unavailable

15

OIL SEAL, IMER

09282-12007

Unavailable

16

OIL SEAL, OUTER

09289-12004

Unavailable

17

GASKET,WATER PU This part replaces 17431-02B10.

17431-02B10-H17

Unavailable

18

PIN

04211-09109

$1.65

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

SCREW This part replaces 02112-06258.

02112-06257

$1.78

21

SCREW This part replaces 02112-06308.

02112-06307

$1.97

22

HOSE 4X7X600 | L18600-00 This part replaces 09352-40703-600.

09352-40706-600

$5.11

23

CLIP

09401-08401

$1.54

24

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.83
