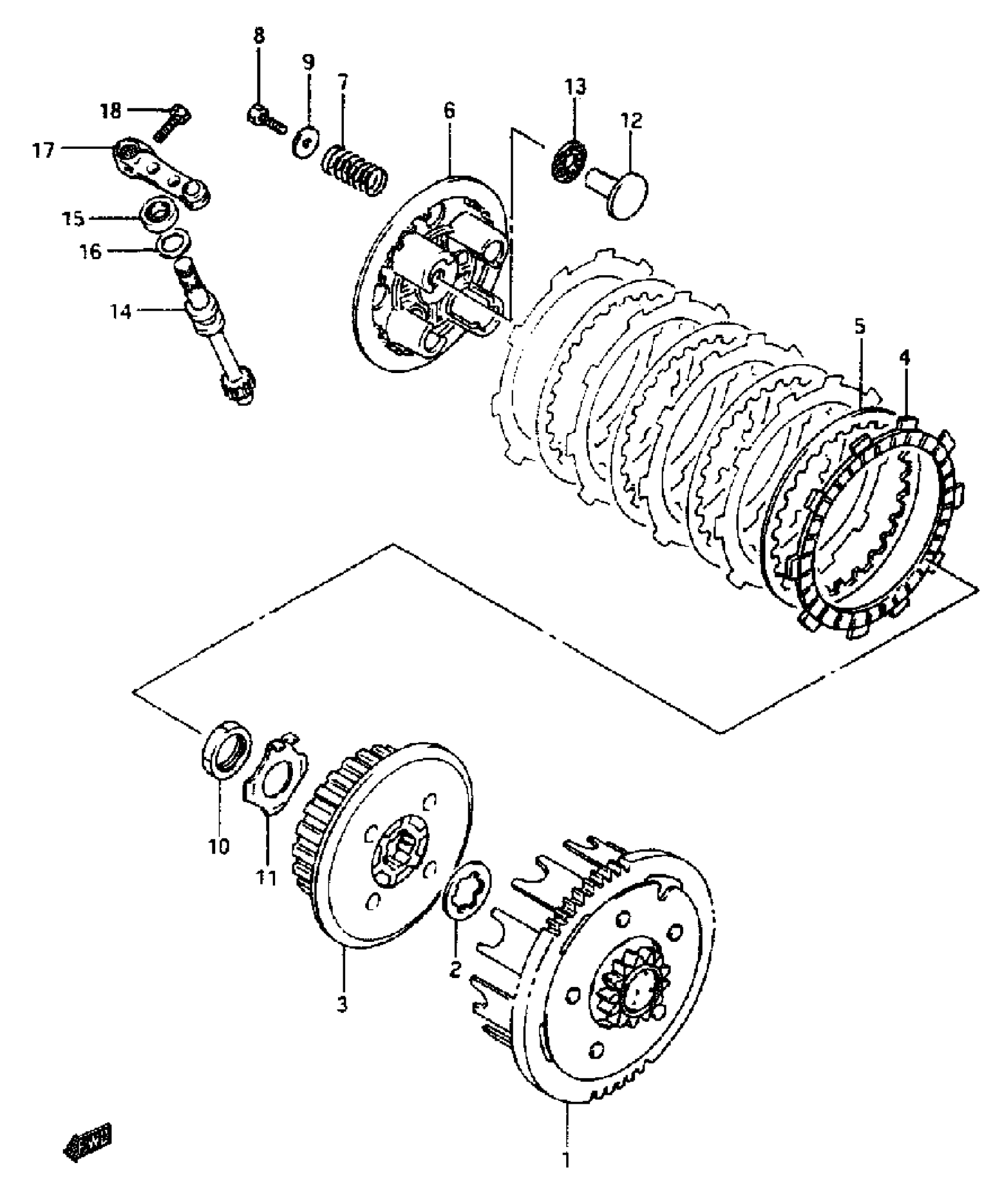

Suzuki RM80 (1995) CLUTCH (MODEL G/H/J/) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:62/13

21200-02B02

Unavailable

2

WASHER

09167-20024

$3.58

3

HUB, SLEEVE

21410-02B02

Unavailable

4

PLATE, DRIVE

21441-02B00

Unavailable

5

PLATE, DRIVEN

21451-23000

$9.27

6

DISK. PRESSURE

21462-02B01

Unavailable

7

SPRING | MODEL G

09440-15014

$3.37

7

SPRING | MODEL H/J

09440-15027

Unavailable

8

BOLT

09100-05002

$1.49

9

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

10

NUT

09140-16027

$6.70

11

WASHER

09169-16005

$2.35

12

RACK,CLUTCH RELEASE This part replaces 23165-02B00.

23165-44B01

$24.92

13

BEARING

09263-10002

$10.19

14

PINION, RELEASE

23261-41301

$43.68

15

OIL SEAL

09285-10004

$3.37

16

WASHER (12.5X17X1) This part replaces 09160-12035.

09160-12086

$2.15

17

ARM, RELEASE

23271-01B01

Unavailable

18

BOLT This part replaces 01107-06166.

01500-0616A

$1.78
