Description

Price

1

COI UNIT ASSY | MODEL GIH

32900-02B20

Unavailable

1

CDI UNIT | MODEL J/K/L/M/N/P/R/S This part replaces 32900-02B30.

32900-02B31

$419.28

2

PROTECTOR | CUT AS REQ"IRED PROFILE (3OX5O)

33651-37000

$4.48

3

BAND | MODEL G/H/I/K/L/M/N/P/R This part replaces 32942-02B00.

09462-00034

$4.24

3

BAND | MODEL 5

09462-00034

$4.24

4

COIL ASSY, IGNITION | MODEL G/H/J/K/L/M/N/P/R This part replaces 33410-20430.

33410-02221

$121.55

4

COIL ASSY. IGNITION | MODEL 5

33410-02221

$121.55

5

CUSHION, REAR FENDER REAR | CUT AS REQUIRED PROFILE (2OX4O) This part replaces 33652-01A00.

33651-37000

$4.48

6

SCREW | MODEL G/H/J/K/L/M/N This part replaces 02112-36206.

02112-3620A

$2.06

6

SCREW | MODEL P/R/S

09129-06003

Unavailable

7

CAP, SPARK PLUG | MODEL G/H/J/K/L/M/N/P This part replaces 33510-41111.

33510-20A02

$24.39

7

CAP, SPARK PLUG | MODEL R/S This part replaces 33510-20A00.

33510-20A02

$24.39

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL R/S

33542-38B00

$4.34

9

BELT

09407-09402

$2.45

10

SWITCH ASSY, ENGINE STOP | MODEL G/H/J/K This part replaces 37820-00B00.

37820-14X50

$48.54

11

SWITCH ASSY, ENGINE STOP | MODEL L/M/N/F/R/S

37820-14X50

$48.54

12

CU%MP (L: 128) | MODEL K/L/M/N/P/R/S

09407-12402

$3.04

13

CLAMP | MODEL L/M/N/P/R/S This part replaces 09407-18403.

09407-18402

$2.19

14

CLAW, HIGH TENSION CORD | MODEL M/N/P/R/S

09407-14403

$2.26

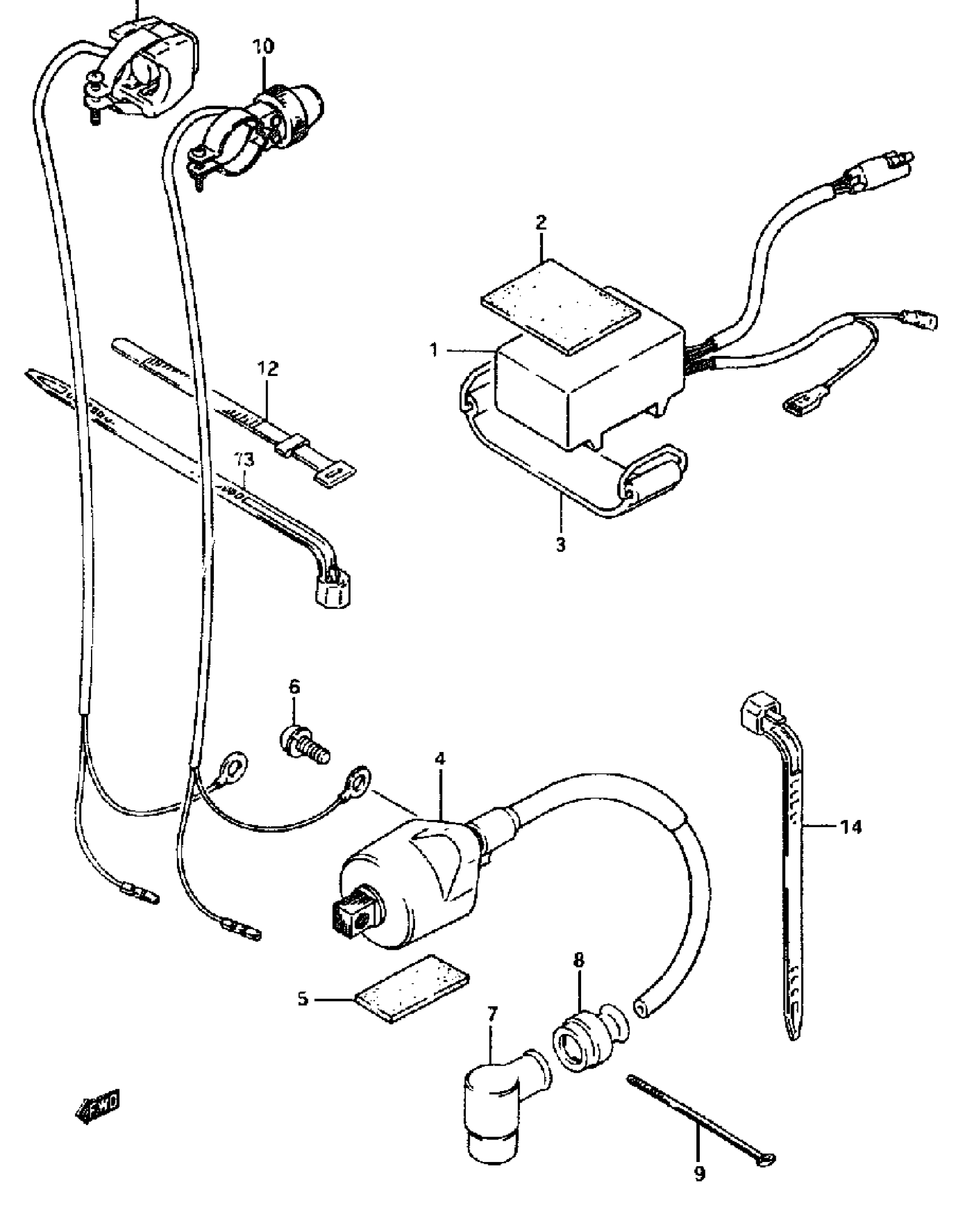

Suzuki RM80 (1995) CDI UNIT - IGNITION COIL Diagram
