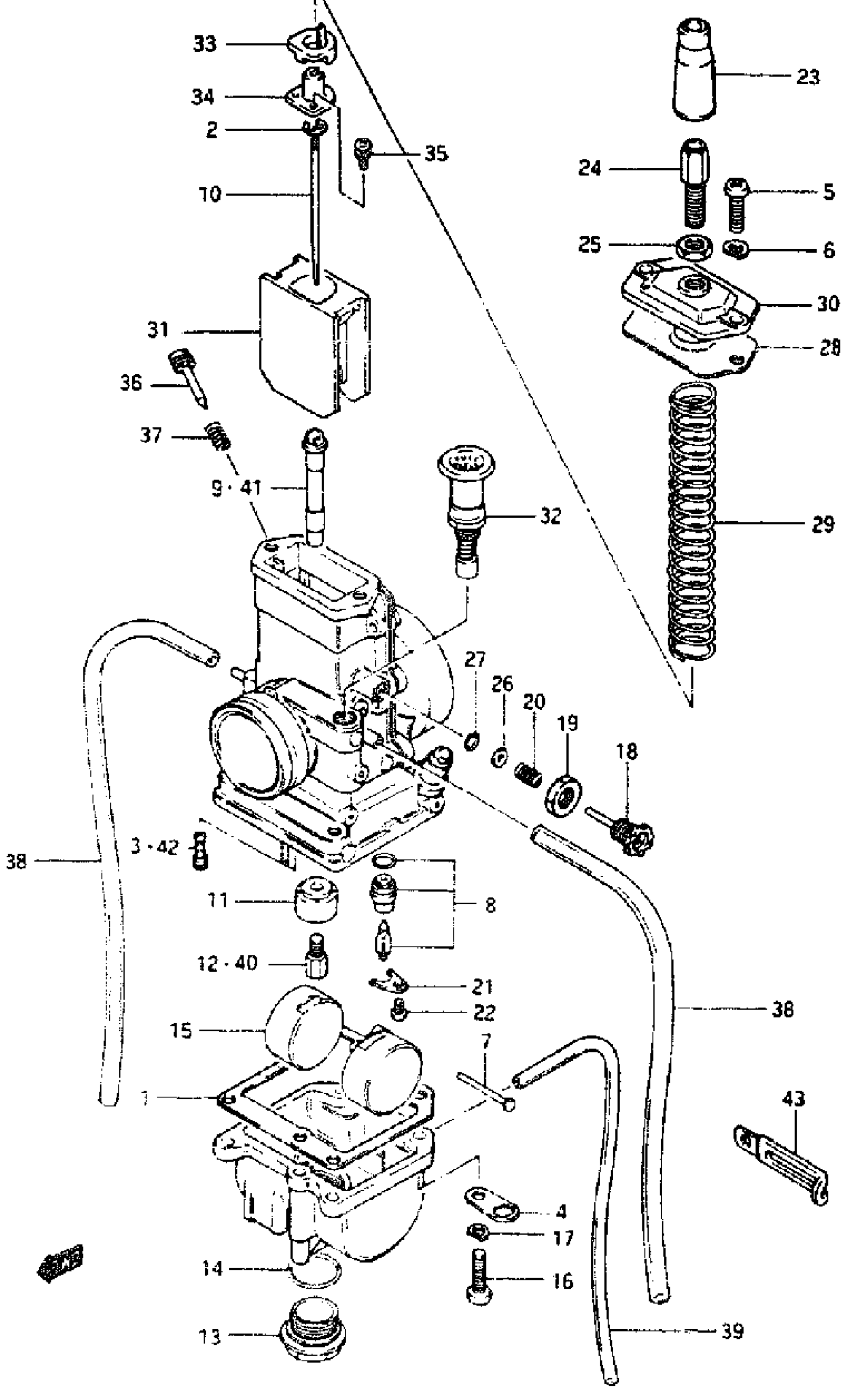

Suzuki RM80 (1995) CARBURETOR (MODEL G/H/J) Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL G/H This part replaces 13200-02B00.

13200-02B10

Unavailable

1

CARBURETOR ASSY | MODEL J

13200-02B10

Unavailable

1

GASKET

13251-29630

Unavailable

2

E RING

13394-10010

$5.45

3

JET, PILOT (30)

09492-30006

$9.55

4

PLATE

13693-36500

$3.25

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

7

PIN, , FLOAT

13254-92311

$2.07

8

VALVE ASSYO NEEDLE

13370-46900

Unavailable

9

JET. NEEDLE (P-2) | MODEL G/H

09494-00522

Unavailable

9

JET, NEEDLE (P-6) | MODEL 3

09494-00585

Unavailable

10

NEEDLE, JET (50F39-3)

13383-46900

$19.00

11

RING

13331-28710

Unavailable

12

JET, MAIN (180)

09491-36006

Unavailable

13

PLUG, DRAIN

13247-46900

Unavailable

14

0 RING

13246-29630

$6.30

15

FLOAT

13252-29630

$27.45

16

SCREW This part replaces 02112-04206.

02112-0420A

$1.49

17

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

18

ADJUSTER, THROTTLE STOP

13267-16700

$14.85

19

NUT

13661-02B00

$5.32

20

@SPRING

13268-35010

$4.48

21

PLATE, NEEDLE VALVE

13373-39110

$6.64

22

SCREW This part replaces 13602-04088.

02112-04087

$1.49

23

CAP, ADJUSTER

13681-33010

$9.32

24

ADYJSTER, CABLE

13577-41612

$7.01

25

NUT

13661-16600

$4.64

26

WASHER

13291-35010

$3.56

27

0 RING

13295-33010

$4.48

28

GASKET, TOP

13266-16700

$6.93

29

SPRING, THROTTLE VALVE

13573-16700

Unavailable

30

CAP, TOP

13261-16700

Unavailable

31

VALVE, PISTON (CA:4.0)

13551-20910

Unavailable

32

PLUNGER ASSY This part replaces 13400-20910.

13410-26410

Unavailable

33

RING

13629-16700

Unavailable

34

XONNECTOR

13398-16700

Unavailable

35

SCREW This part replaces 13601-03108.

02112-3310B

$2.70

36

SCREW, AIR (1 1/2) | MODEL G/H

13269-16700

$13.05

36

SCREW, AIR (1 3/4) | MODEL J

13269-16700

$13.05

37

SPRING

13268-01010

$5.28

38

HOSE (3.5X6.5X600) | L:500-350 This part replaces 13683-37420.

09351-35653-600

$4.64

39

.HOSE (3X5X600) This part replaces 13683-36A00.

09352-30504-600

$4.91

40

JET,MAIN,150 | OPT This part replaces 09491-30003.

09491-30017

Unavailable

40

JET. MAIN (160) | OPT

09491-32002

Unavailable

40

JET, MAIN (170) | OPT

09491-34002

Unavailable

40

JET, MAIN (190) | OPT

09491-38009

Unavailable

40

JET, MAIN (200) | OPT

09491-40006

Unavailable

40

JET, MAIN (210) | OFT This part replaces 09491-42001.

09491-42005

Unavailable

41

JET, NEEDLE (P-0) | OPT

09494-00519

Unavailable

41

JET, NEEDLE (P-2) | OPT

09494-00522

Unavailable

41

JET. NEEDLE (P-4) | OPT

09494-00523

Unavailable

41

JET, NEEDLE (P-8) | OPT

09494-00584

Unavailable

41

JET, NEEDLE (0-8) | OPT

09494-00461

Unavailable

42

JET, PILOT (25) | OFT

09492-25005

$9.55

42

JET. PILOT (35) | OPT

09492-35004

Unavailable

43

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
