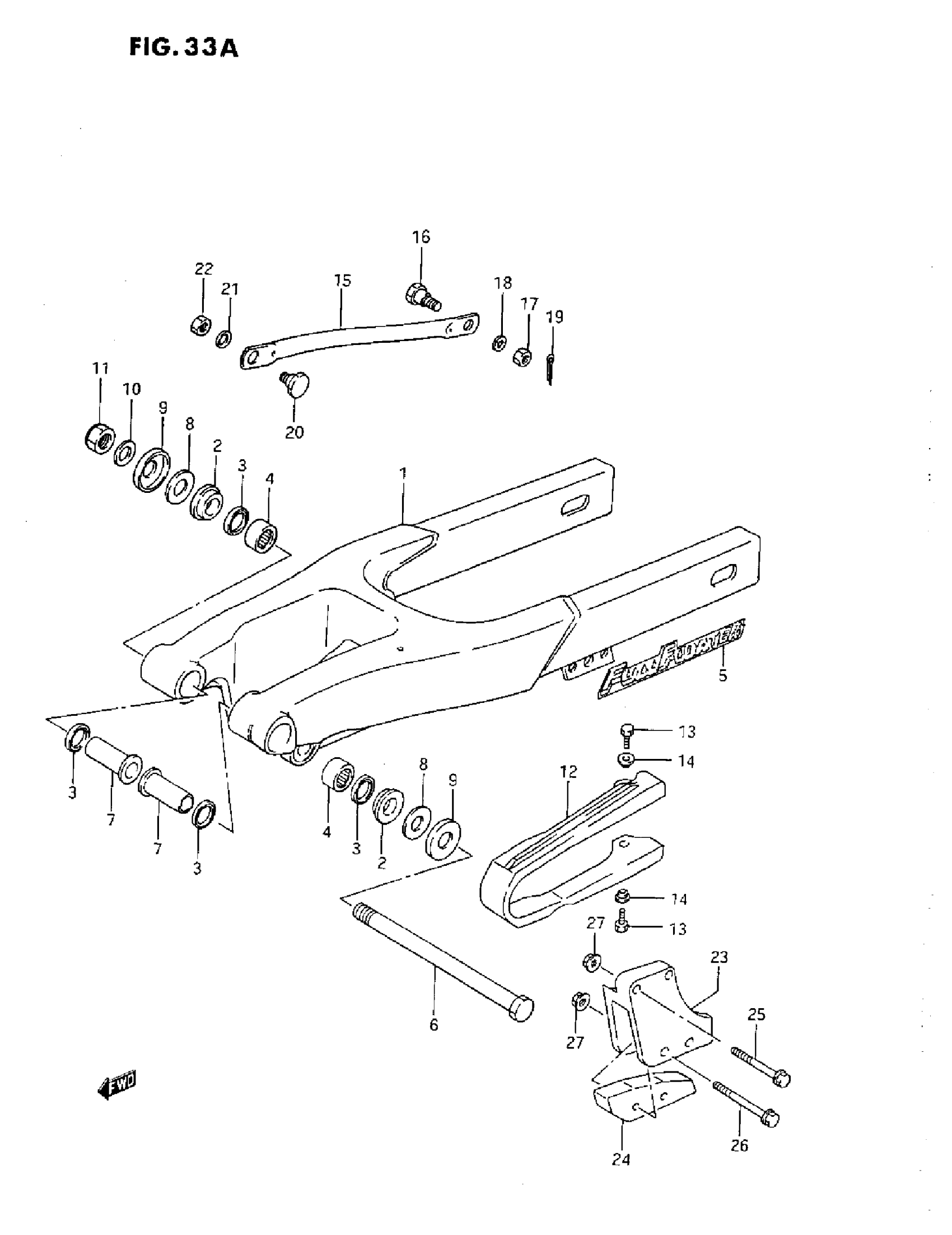

Suzuki RM80 (1993) REAR SWINGING ARM (K) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-02B13

Unavailable

2

BUSHING

61261-02B00

$25.08

3

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.38

4

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$19.55

5

EMBLEM

68381-03410-97J

Unavailable

6

SHAFT, PIVOT

61211-02B00

Unavailable

7

SPACER

61251-02B00

Unavailable

8

THRUST WASHER

08211-12282

$2.88

9

COVER SWGARM PIVOT This part replaces 61262-40200.

61262-03B01

$12.62

10

WASHER This part replaces 08322-11128.

08322-01127

$1.86

11

NUT This part replaces 08319-21128.

08319-2112A

$3.38

12

BUFFER, CHAIN DEFENSE

61273-02B20

$44.05

13

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

14

WASHER

09169-06057

$2.92

15

TORQUE LINK, REAR (SILVER)

64311-02B00-13L

Unavailable

16

BOLT, REAR

09111-08048

Unavailable

17

NUT

09140-08008

$1.45

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

20

BOLT, FRONT

09111-08064

$4.90

21

WASHER This part replaces 08322-11088.

08322-01087

$1.86

22

NUT This part replaces 08319-21088.

08319-2108A

$2.13

23

CHAIN, GUIDE

61342-02B02

Unavailable

24

DEFENSE, CHAIN GUIDE

61348-02B20

$20.77

25

BOLT This part replaces 01517-06358.

01550-06357

$2.80

26

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.73

27

NUT

08319-31067

$2.01
