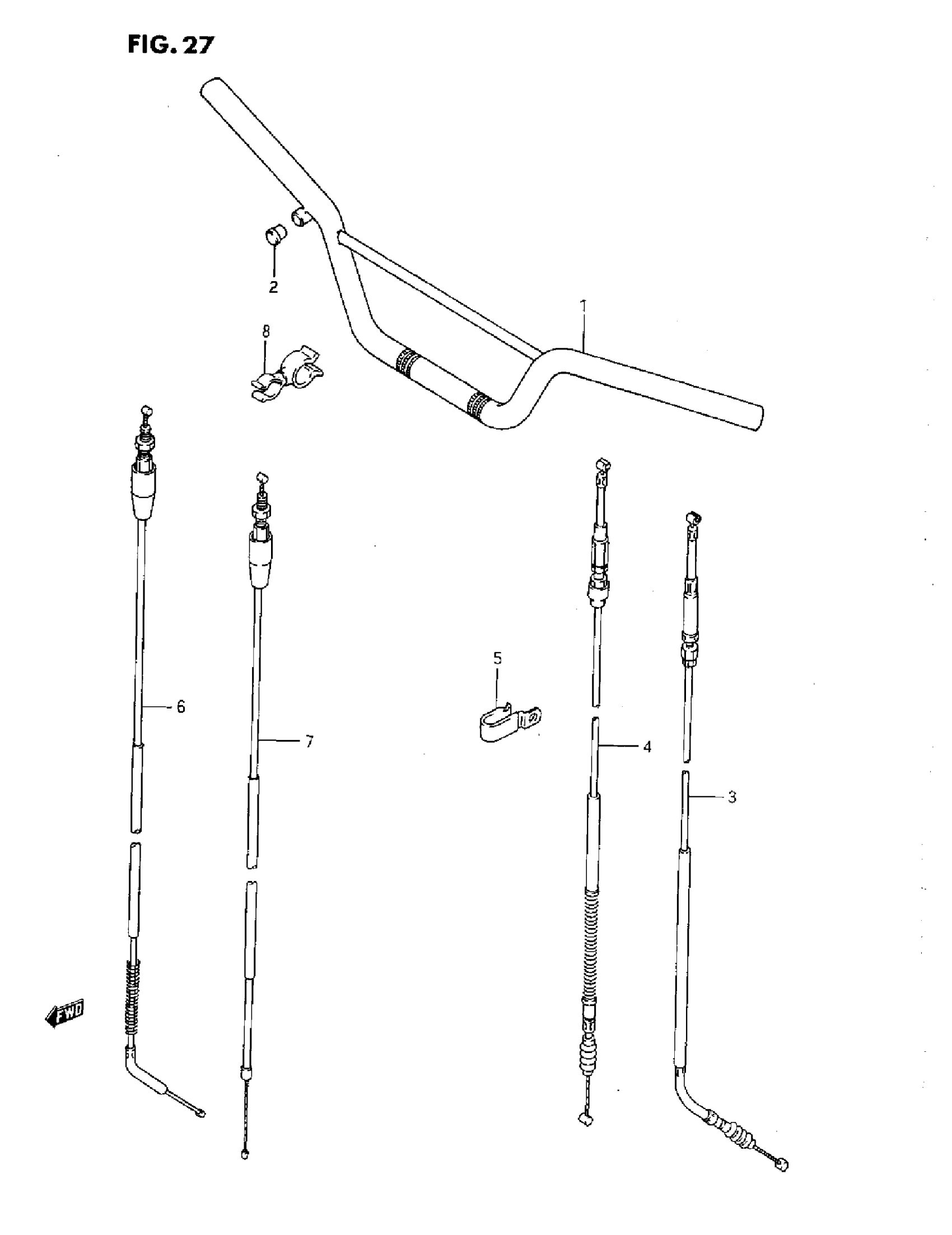

Suzuki RM80 (1993) HANDLEBAR-CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR (SILVER) | MODEL G/H/J This part replaces 56110-02B01-25F.

56110-02B01-13L

Unavailable

1

HANDLEBAR (SILVER) | MODEL K

56110-02B01-13L

Unavailable

1

HANDLEBAR | MODEL L/M/N/P/R This part replaces 56110-02B10-13L.

56110-02B11-13L

Unavailable

2

PLUG

09250-10001

$1.88

3

CABLE ASSY, CLUTCH | MODEL G/H/J

58200-02B02

Unavailable

4

CABLE ASSY, CLUTCH | MODEL K/L/M/N/P/R

58200-02B13

$35.93

5

CLAMP This part replaces 09403-06307.

09403-06329

$2.52

6

CABLE, THROTTLE | MODEL G This part replaces 58300-20420.

58300-02X02

Unavailable

7

CABLE, THROTTLE | MODEL H/J This part replaces 58300-02B00.

58300-02X02

Unavailable

7

CABLE ASSY,THROTTLE | MODEL K This part replaces 58300-02B10.

58300-02B22

$28.68

7

CABLE ASSY,THROTTLE | MODEL L/M/N/P/R This part replaces 58300-02B21.

58300-02B22

$28.68

8

CLAMP | MODEL K/L/M/N/P/R

09408-00085

$4.18
