1993 Suzuki RM80 Frame-Seat Diagram

← All diagrams

Find the part on the Frame-Seat diagram for your 1993 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

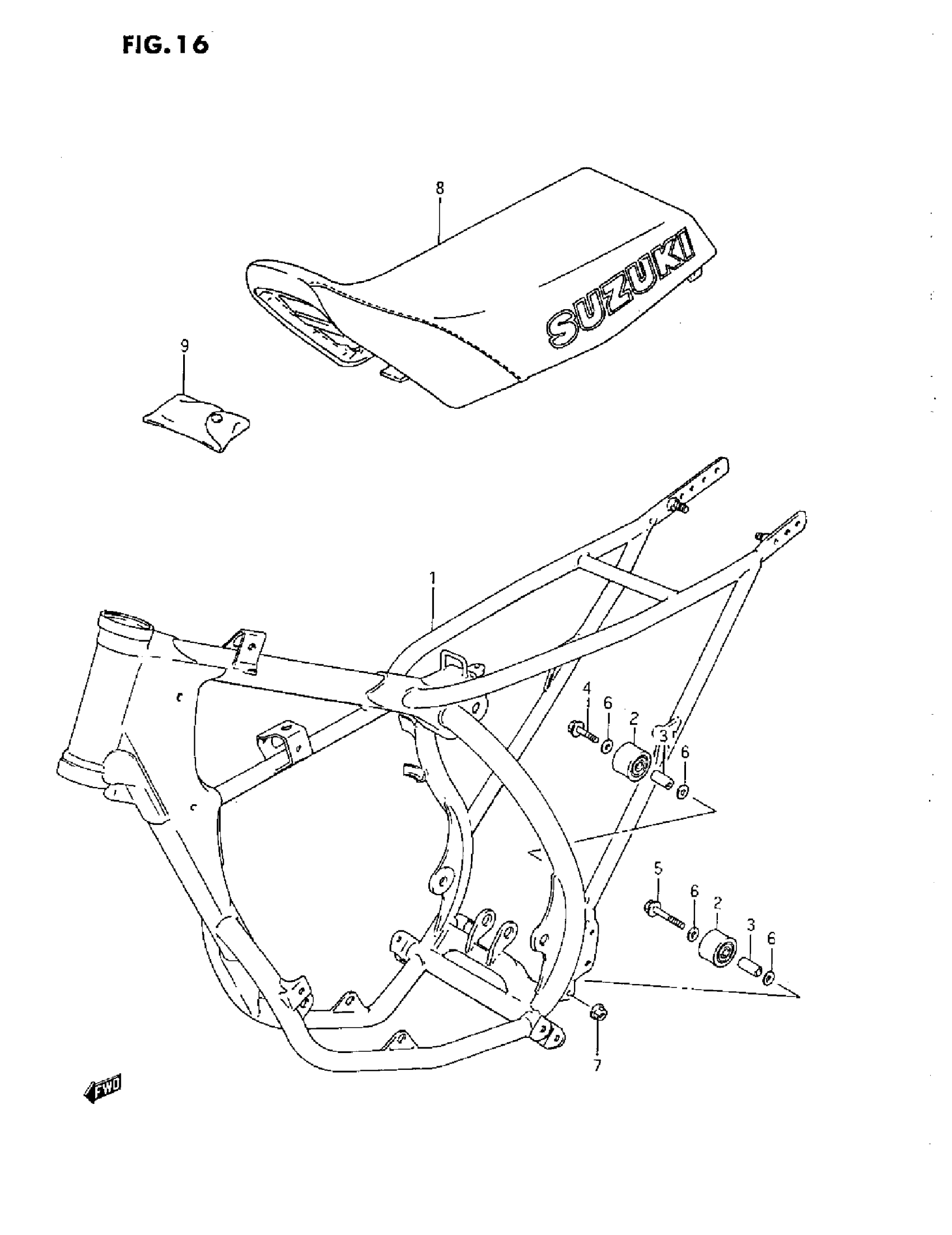

1993 Suzuki RM80 Frame-Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET (BLUE) This part replaces 41100-02B00-19F.

41100-02880-19F

1
Out of stock

2

ROLLER, CHAIN CONTROL

43910-22A10

2
Out of stock

3

SPACER This part replaces 09180-08119.

09180-08156

2
Out of stock

4

BOLT, UPPER

09103-08083

1
Out of stock

5

BOLT, LOWER

09103-08043

1
Out of stock

6

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

4
Out of stock

7

NUT

08319-31087

1
Out of stock

8

SEAT ASSY (BLUE) This part replaces 45100-02B00-54G.

45100-02B21-4UZ

1
Out of stock

9

TOOL ASSY This part replaces 09800-00310.

09800-21059

1
Out of stock
