Description

Price

1

CDI UNIT ASSY | MODEL G/H

32900-02B20

Unavailable

1

CDI UNIT | MODEL J/K/L/M/N/P/R This part replaces 32900-02B30.

32900-02B31

$466.57

2

PROTECTOR | CUT AS REQUIRED PROFILE (3OX5D)

33651-37000

$4.09

3

BAND This part replaces 32942-02B00.

09462-00034

$3.89

4

COIL ASSY, IGNITION This part replaces 33410-20430.

33410-02221

$136.53

5

CUSHION, REAR FENDER REAR | CUT AS REQUIRED PROFILE (2OX4O) This part replaces 33652-01A00.

33651-37000

$4.09

6

SCREW | MODEL G/H/J/K/L/M/N This part replaces 02112-36206.

02112-3620A

$2.07

6

SCREW | MODEL P/R

09129-06003

Unavailable

7

CAP, SPARK PLUG | MODEL G/H/J/K/L/M/N/P This part replaces 33510-41111.

33510-20A02

$22.33

7

CAP, SPARK PLUG | MODEL R This part replaces 33510-20A00.

33510-20A02

$22.33

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL R

33542-38B00

$3.97

9

BELT

09407-09402

$2.67

10

SWITCH ASSY, ENGINE STOP | MODEL G/H/J/K This part replaces 37820-00B00.

37820-14X50

$44.43

11

SWITCH ASSY, ENGINE STOP | MODEL L/M/N/P IR This part replaces 37820-27C00.

37820-14X50

$44.43

12

CLAMP | MODEL K/ L/M/N/P/R

09407-12402

$2.80

13

CLAMP (L:165) | MODEL L/M/N/P/R

09407-18402

$2.21

14

CLAMP, HIGH TENSION CORD | MODEL M/N/P/R

09407-14403

$2.24

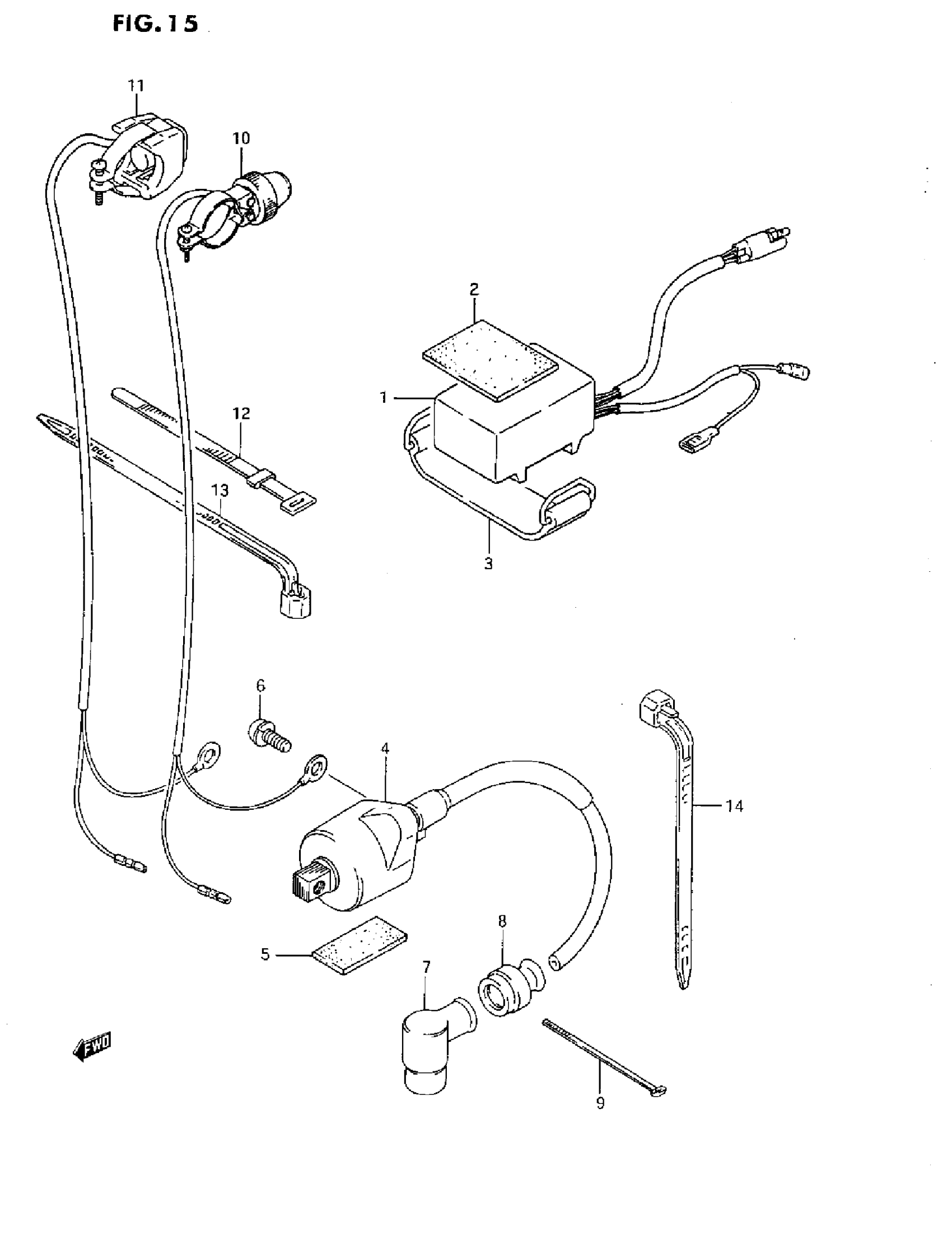

Suzuki RM80 (1993) CDI UNIT-IGNITION COIL Diagram
