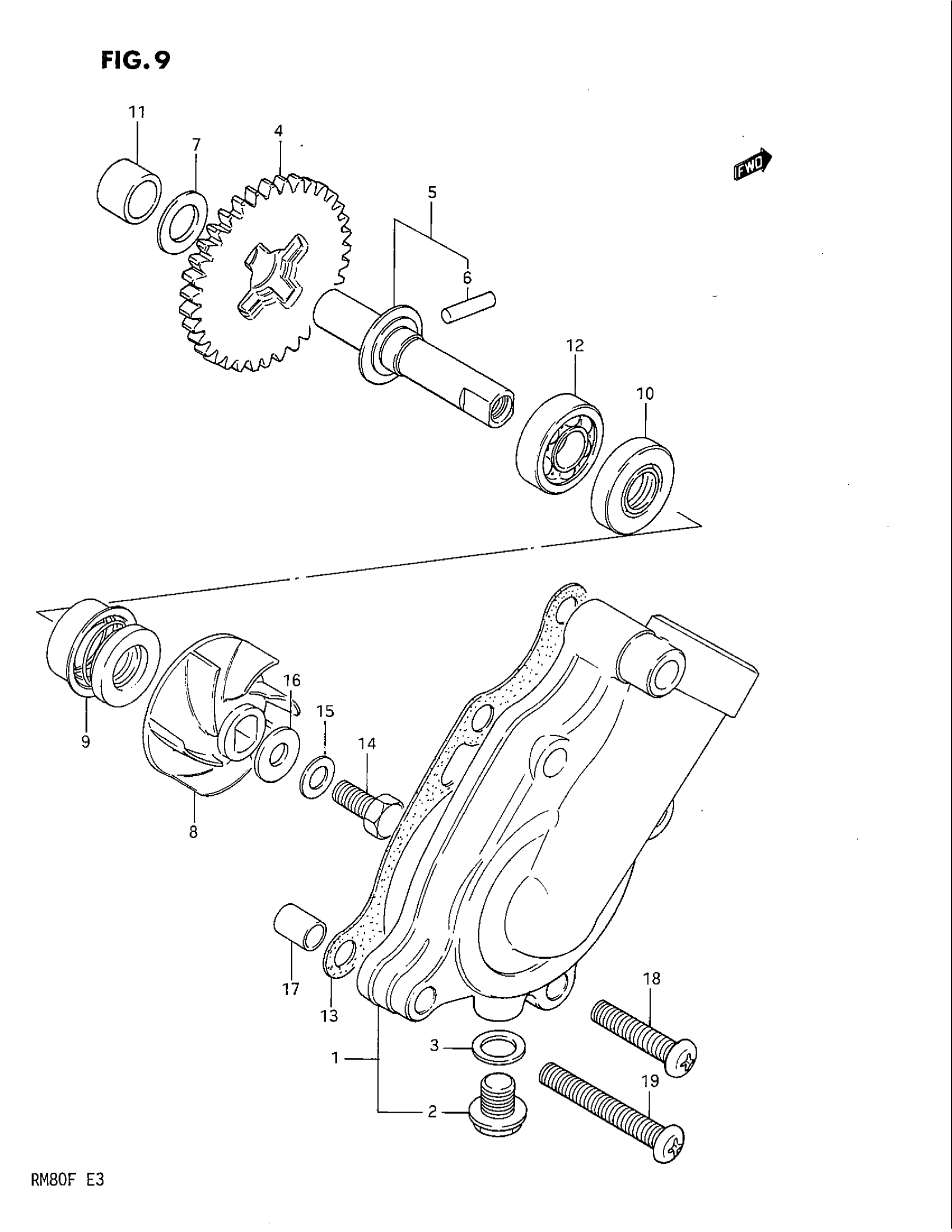

Suzuki RM80 (1985) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP | MODEL D/E This part replaces 17410-20901.

17410-20910

Unavailable

1

CASE, WATER PUMP | MODEL F; Includes Item(s) 2 - 3

17410-20910

Unavailable

2

BOLT, DRAIN

17415-14300

$2.99

3

GASKET (8.2X14X1) This part replaces 17413-14100.

09168-08016

$1.65

4

GEAR, DRIVEN (NT:35)

17461-20911

Unavailable

5

SHAFT, DRIVEN GEAR | Includes Item(s) 6

17510-20901

Unavailable

6

PIN

09261-04010

Unavailable

7

SHIM This part replaces 08211-10181.

09181-10167

$1.97

8

IMPELLER

17491-20900

Unavailable

9

.SEAL,MECHANICAL This part replaces 17470-14100.

17470-02F11

$29.22

10

.SEAL OIL (10X21X5)

09283-10004

$4.96

11

BUSH

09304-10005

$5.65

12

BEARING This part replaces 09262-12003.

08113-69010

$23.28

13

GASKET,WATER PU This part replaces 17431-20903.

17431-20903-H17

Unavailable

14

BOLT

09100-06099

$2.00

15

LOCK WASHER

09164-06006

$2.61

16

GASKET This part replaces 09168-06016.

09168-06025

$2.92

17

PIN

04211-09129

$1.65

18

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

19

SCREW This part replaces 02112-06355.

02112-0635B

$2.19
