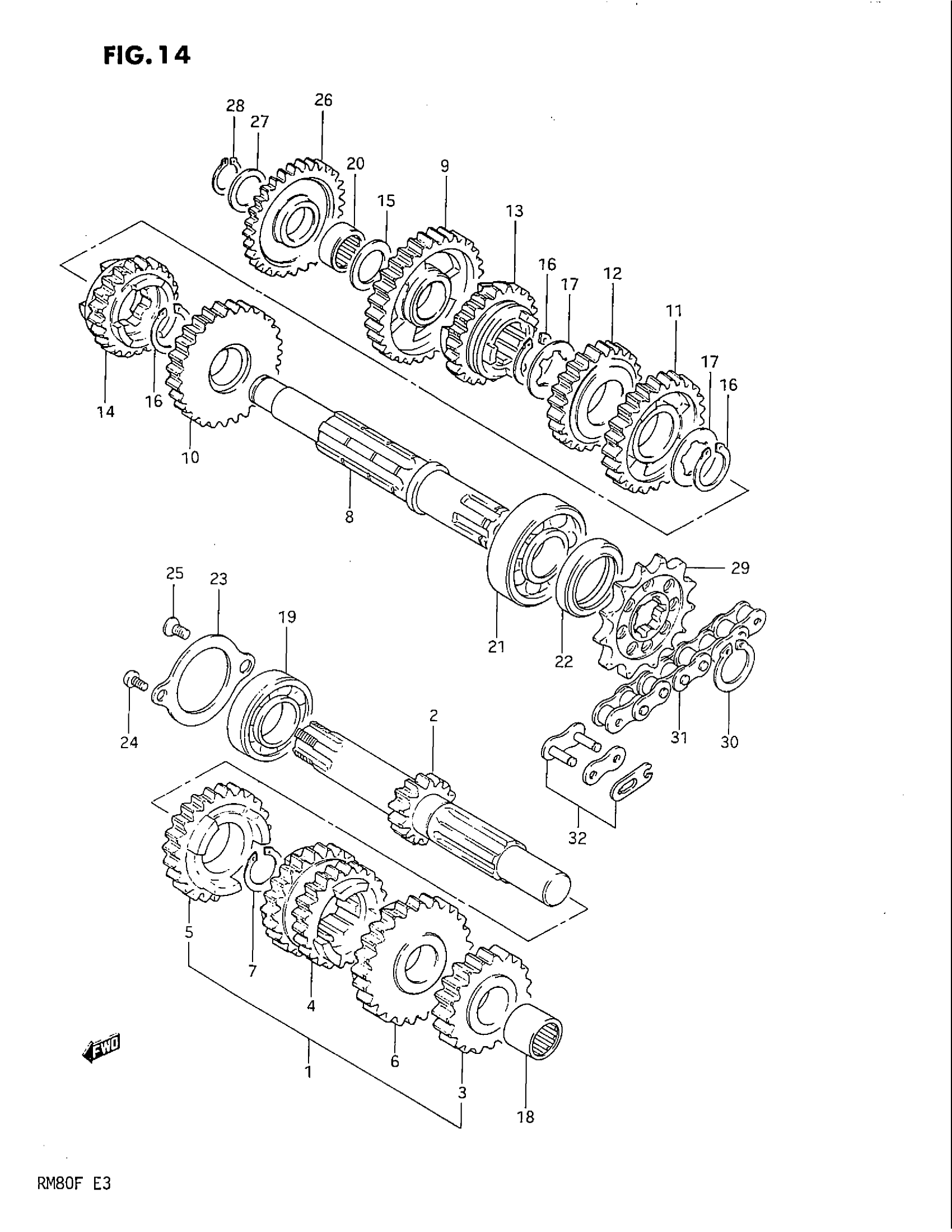

Suzuki RM80 (1985) TRANSMISSION (MODEL E/F) Diagram

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-20910

Unavailable

COUNTERSHAFT (NT:13)

24121-20910

Unavailable

GEAR, 2ND DRIVE (NT:17)

24221-20910

Unavailable

GEAR, 3/4 DRIVE (NT:19/15)

24231-20910

Unavailable

GEAR, 5TH DRIVE (NT:23)

24251-20910

Unavailable

GEAR, 6TH DRIVE (NT:24)

24260-20910

Unavailable

CIRCLIP

09380-17007

Unavailable

DRIVESHAFT

24131-20902

Unavailable

GEAR, 1ST DRIVEN (NT:31)

24310-20910

Unavailable

GEAR, 2ND DRIVEN (NT:33)

24320-20910

Unavailable

GEAR, 3RD DRIVEN (NT:30)

24331-20910

Unavailable

GEAR, 4TH DRIVEN (NT:20)

24341-20910

Unavailable

GEAR, 5TH DRIVEN (NT:27)

24351-20910

Unavailable

GEAR, 6TH DRIVEN (NT:25)

24361-20910

Unavailable

WASHER

08211-15251

$1.67

CIRCLIP

09380-20009

$2.20

WASHER

09167-20011

$2.31

BEARING, COUNTER SHAFT, L This part replaces 09263-13001.

09263-13002

$15.67

BEARING, RH

09262-17023

$16.75

BEARING, RH

09263-15019

$15.48

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$6.02

HOLDER, BEARING

24741-46000

Unavailable

SCREW This part replaces 02112-06108.

02112-06107

$1.49

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

GEAR, KICK IDLE (NT:26)

26261-20401

Unavailable

WASHER, PARKING RH This part replaces 08211-12181.

09181-12139

Unavailable

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

SPROCKET, ENGINE (NT:13) This part replaces 27511-20400.

27511-20401

$26.90

SPROCKET, ENGINE (NT:12) | OPT This part replaces 27511-20410.

27511-20411

$33.27

SPROCKET, ENGINE (NT:14) | OPT This part replaces 27511-20420.

27511-20421

$23.32

CIRCLIP

09380-20009

$2.20

CHAIN ASSY,DRIV | Includes Item(s) 32 This part replaces 27600-20910.

27600-46912-134

$70.38

.JOINT SET, CHAIN This part replaces 27620-20910.

27620-20911

$5.30

JOINT (RK) This part replaces 27620-12020.

27620-40220

$11.07
