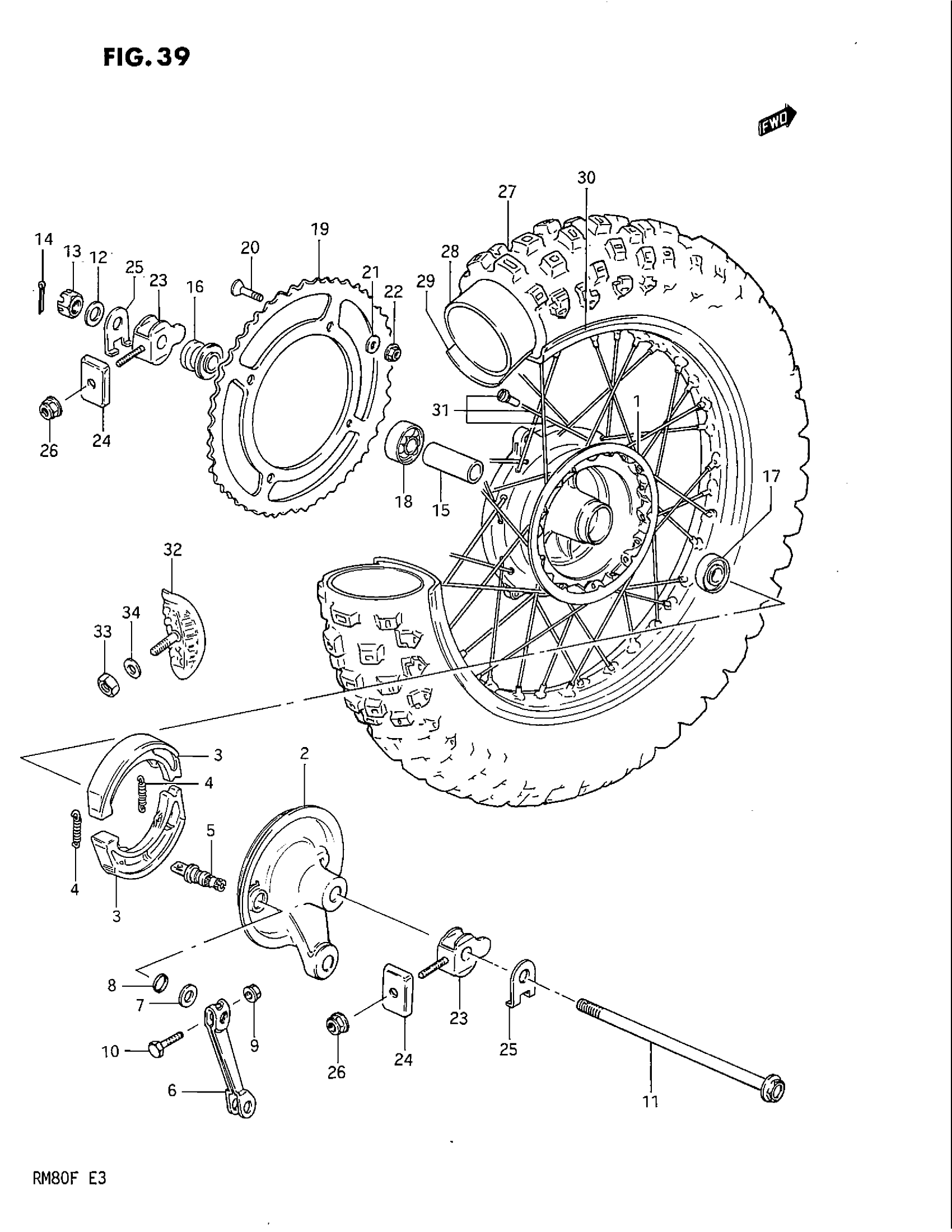

Suzuki RM80 (1985) REAR WHEEL (MODEL E/F) Diagram

#

Description
Price

1

DIAM, REAR HUB (WHITE) This part replaces 64110-20412.

64110-02B10

Unavailable

2

PANEL, REAR HUB (WHITE) This part replaces 64210-20411.

64210-02B10

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-20402.

64400-02810

Unavailable

4

SPRING, BRAKE SHOE

09443-07025

$2.08

5

CAM, REAR BRAKE

54441-20900

Unavailable

6

LEVER, BRAKE CAM

64451-20400

Unavailable

7

WASHER

09160-12011

$1.54

8

DUST SEAL

09280-12001

$2.90

9

NUT This part replaces 09159-06017.

08319-31067

$2.03

10

BOLT This part replaces 01517-06308.

01550-06307

$2.69

11

AXLE, REAR

64711-20521

Unavailable

12

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

$2.81

13

NUT This part replaces 08314-31148.

08314-3114A

$2.90

14

PIN This part replaces 04111-30308.

04111-3030A

$1.49

15

SPACER, HUB BEARING

09180-15069

$15.83

16

SPACER, AXLE LH

64740-20521

Unavailable

17

BEARING, RH

08123-60027

$23.62

18

BEARING, LH

08123-62027

$18.57

19

SPROCKET, REAR (NT:44)

64511-20520

Unavailable

19

SPROCKET, REAR (NT:43) | OPT

64511-20530

Unavailable

19

SPROCKET, REAR (NT:45) | OPT

64511-20540

Unavailable

19

SPROCKET, REAR (NT:47) | OPT

64511-20550

Unavailable

19

SPROCKET, REAR (NT:48) | OPT

64511-20920

Unavailable

19

SPROCKET, REAR (NT:46) | OPT

64511-20980

Unavailable

20

BOLT

09120-08004

$2.40

21

WASHER This part replaces 08322-21088.

08322-01087

$2.13

22

NUT This part replaces 08319-31088.

08319-3108A

$2.32

23

ADJUSTER, CHAIN

61410-05250

Unavailable

24

PLATE

61421-26502

$5.50

25

WASHER,CHAIN AD This part replaces 64712-05251.

64712-36A10

$3.87

26

NUT This part replaces 08319-31088.

08319-3108A

$2.32

27

TIRE, REAR (90/100-14) | IRC This part replaces 65100-20400.

65110-02B40

Unavailable

28

TUBE ASSY, INNER This part replaces 65200-20300.

65200-02B40

Unavailable

29

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.45

30

RIM, WHEEL (160X14, AL) | MODEL E

65311-20410

Unavailable

30

RIM, WHEEL (160X14, AL) GOLD | MODEL F

65311-20930

Unavailable

31

SPOKE ASSY, REAR

65320-20410

Unavailable

32

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$58.75

33

NUT This part replaces 08310-12088.

08310-00087

$2.13

34

WASHER This part replaces 08322-11088.

08322-01087

$2.13
