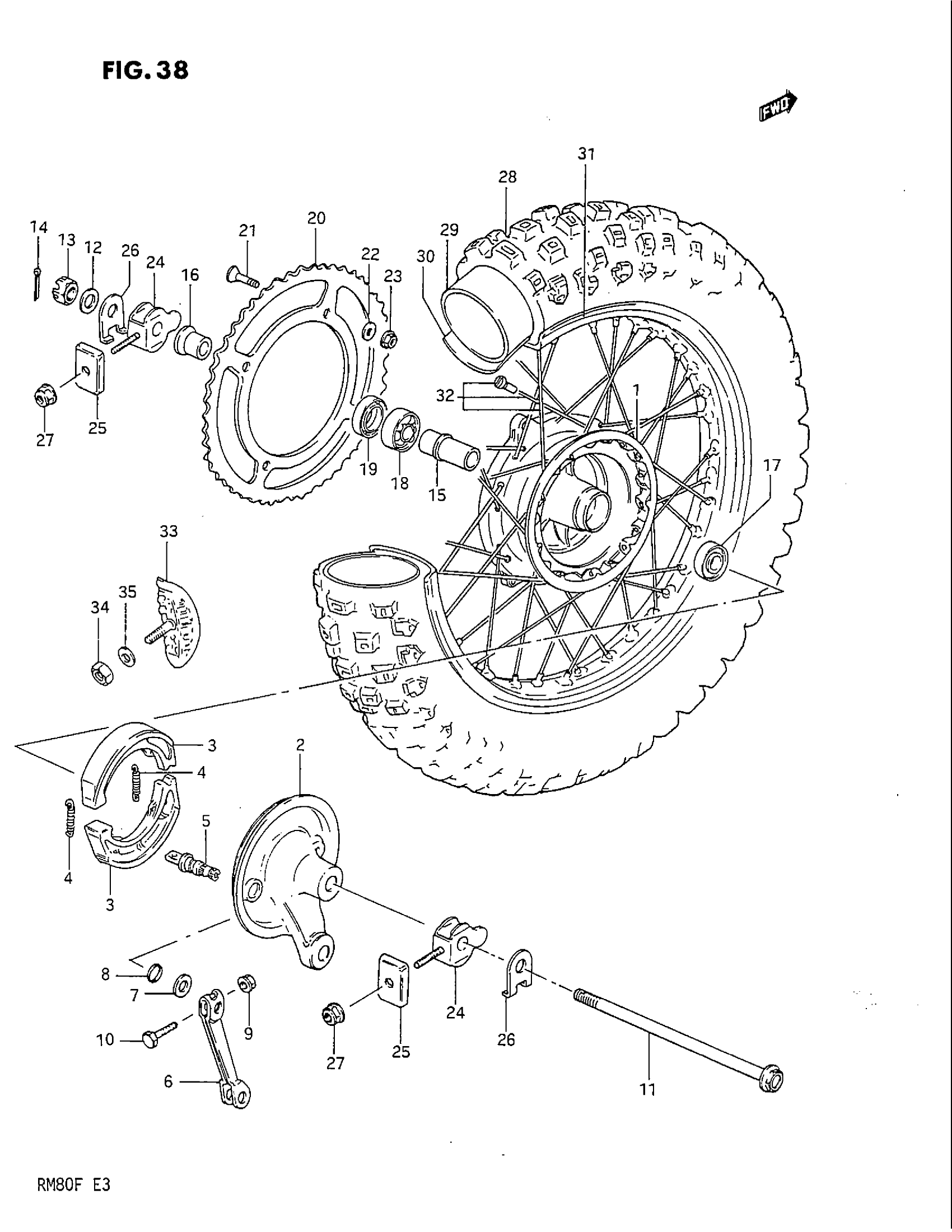

Suzuki RM80 (1985) REAR WHEEL (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64110-20402.

64110-20407

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 64210-20900.

64210-20901

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-20402.

64400-02810

Unavailable

4

SPRING, BRAKE SHOE

09443-07025

$2.08

5

CAM, REAR BRAKE

54441-20900

Unavailable

6

LEVER, BRAKE CAM

64451-20400

Unavailable

7

WASHER

09160-12011

$1.54

8

DUST SEAL

09280-12001

$2.90

9

NUT This part replaces 08316-16068.

08319-31067

$2.03

10

BOLT This part replaces 01517-06308.

01550-06307

$2.69

11

NO DESCRIPTION AVAILABLE This part replaces 64711-20510.

64711-20511

Unavailable

12

WASHER This part replaces 08322-11128.

08322-01127

$1.84

13

NUT This part replaces 08314-31128.

08314-3112A

$2.41

14

PIN This part replaces 04111-30208.

04111-3020A

$1.50

15

SPACER, HUB BEARING

64730-20400

Unavailable

16

SPACER, AXLE LH

64751-20400

$12.47

17

BEARING This part replaces 08123-62017.

08133-62017

$18.47

18

BEARING, LH

08113-63010

$19.57

19

SEAL,OIL(17X38X This part replaces 09284-18001.

09284-18006

$5.10

20

SPROCKET, REAR (NT:50)

64511-20900

Unavailable

20

SPROCKET, REAR (NT:48) | OPT

64511-20920

Unavailable

20

SPROCKET, REAR (NT:52) | OPT

64511-20930

Unavailable

20

SPROCKET, REAR (NT:54) | OPT

64511-20940

Unavailable

21

BOLT

09120-08004

$2.40

22

WASHER This part replaces 08322-21088.

08322-01087

$2.13

23

NUT This part replaces 08319-31088.

08319-3108A

$2.32

24

ADJUSTER, CHAIN

61410-20900

Unavailable

25

PLATE This part replaces 61421-26501.

61421-26502

$5.50

26

GUIDE WASHER

64712-20900

$2.94

27

NUT This part replaces 08319-31088.

08319-3108A

$2.32

28

TIRE, REAR (90/100-14) | IRC This part replaces 65100-20900.

65110-02B40

Unavailable

28

TIRE, REAR (4.10X14) | BS

65100-20520

Unavailable

29

TUBE ASSY, INNER This part replaces 65200-20300.

65200-02B40

Unavailable

30

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.45

31

RIM. WHEEL (16OX14) This part replaces 65311-20400.

65311-02B00

Unavailable

32

SPOKE ASSY, REAR

65320-20410

Unavailable

33

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$58.75

34

NUT This part replaces 08310-12088.

08310-00087

$2.13

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13
