Partiron

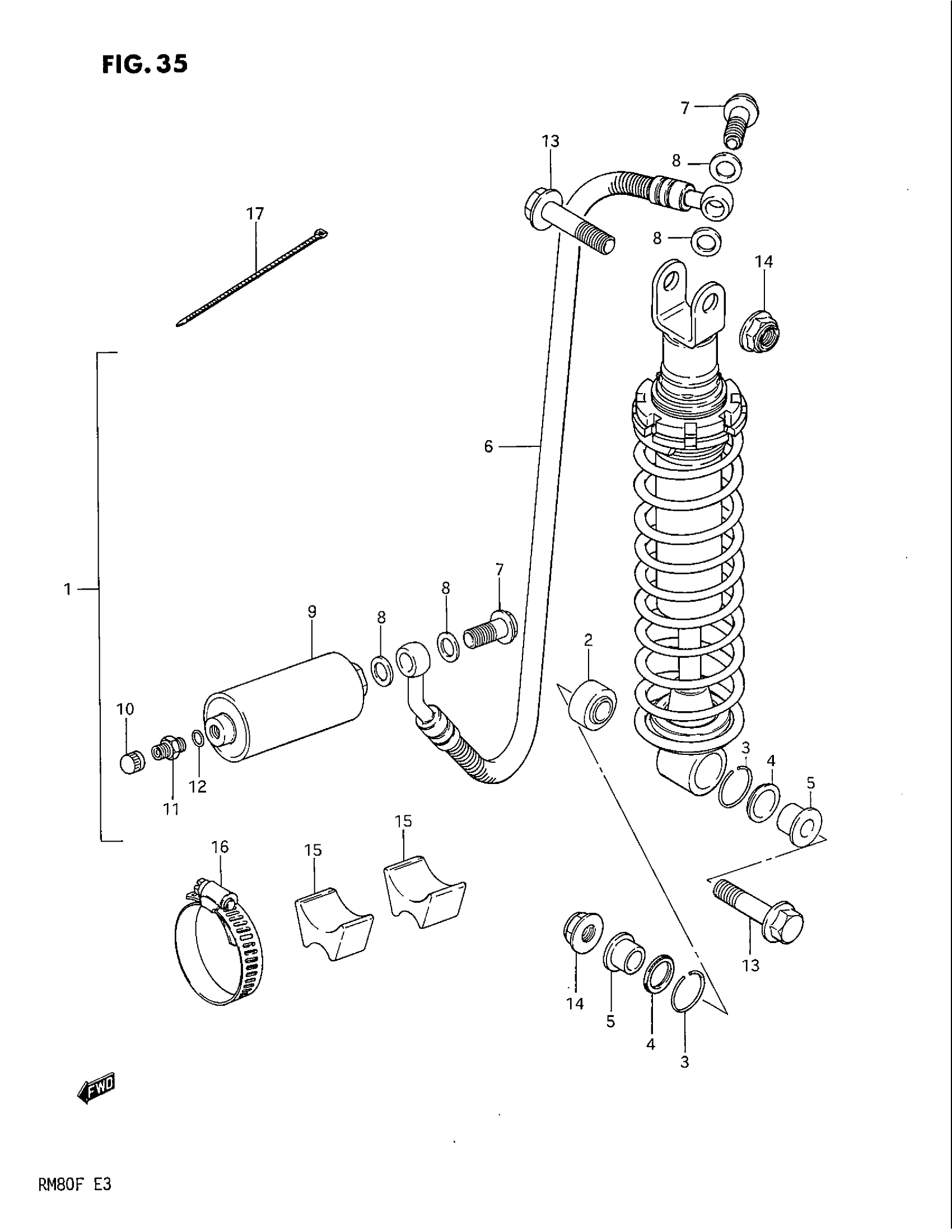

Suzuki RM80 (1985) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER, REAR | MODEL D This part replaces 62100-20900.

62100-20920

Unavailable

1

SHOCK ABSORBER, REAR | MODEL E/F; Includes Item(s) 2 - 12

62100-20920

Unavailable

2

BEARING, REAR (10x24x14.5) | MODEL D This part replaces 09269-10001.

62175-00B00

$61.15

2

BEARING, REAR (10x24x14.5) | MODEL E/F This part replaces 62175-20920.

62175-00B00

$61.15

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$1.99

4

DUST SEAL

62226-20900

$13.05

5

COLLAR

62684-20900

$12.15

6

HOSE

62280-20900

Unavailable

7

BOLT

62281-20900

Unavailable

8

WASHER (10X15X1.5)

09161-10009

$1.84

9

TANK

62270-20900

Unavailable

10

CAP

51294-40400

$8.12

11

VALVE | MODEL D

51293-20400

Unavailable

12

.O RING (D:1.9,ID:5.7) | MODEL D This part replaces 51117-45400.

09280-06005

$1.49

13

BOLT

09103-10045

$4.65

14

NUT This part replaces 08319-31108.

08319-31107

$2.73

15

CUSHION

62331-20900

Unavailable

16

.CLAMP This part replaces 09402-57501.

09402-57511

$13.30

17

CLAMP This part replaces 09407-16401.

09407-25402

$4.64
