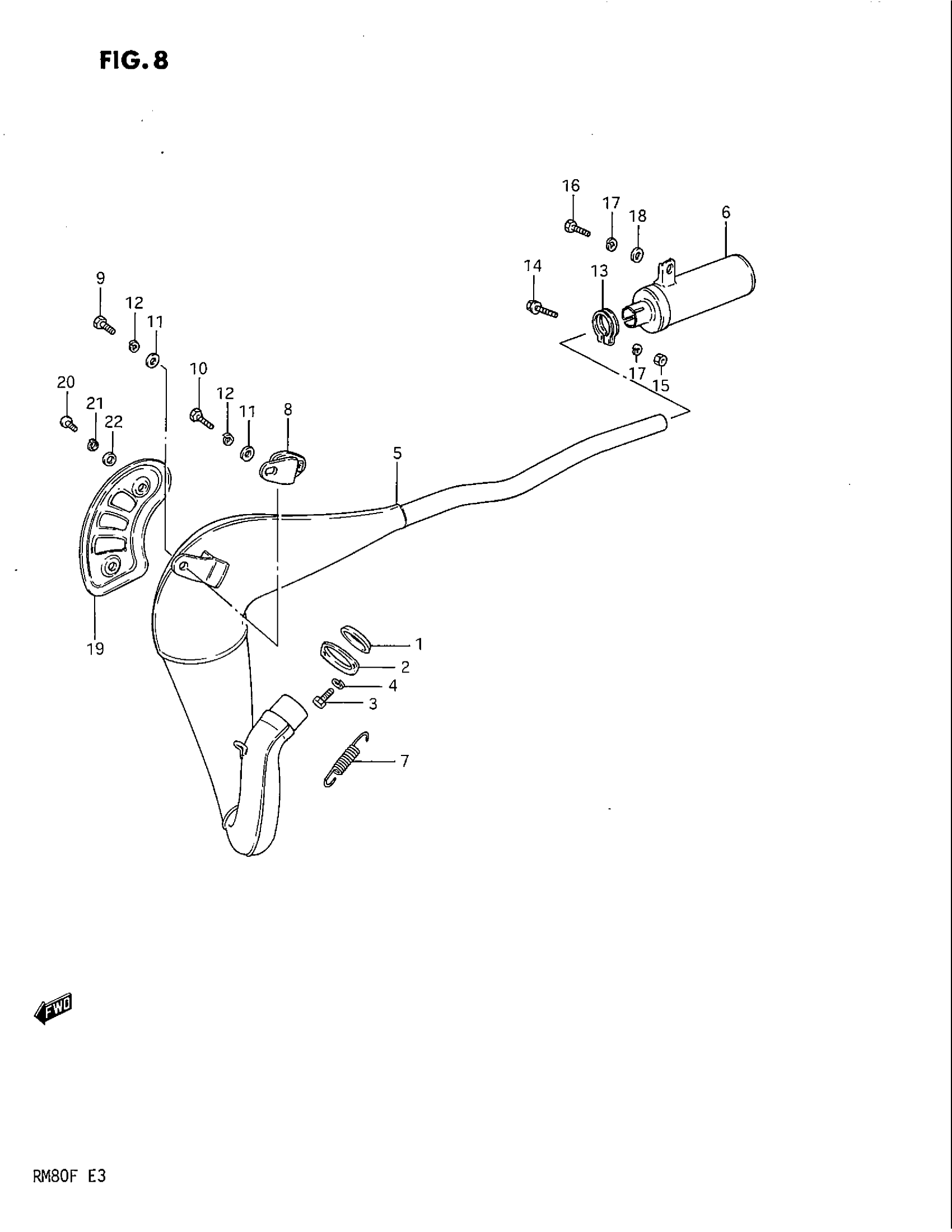

Suzuki RM80 (1985) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST FLANGE

14181-20400

Unavailable

2

CLAMP

14182-20401

Unavailable

3

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

4

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

5

MUFFLER, 1ST | MODEL D ~F.NO.105701 This part replaces 14310-20901.

14310-20920-H01

Unavailable

5

MUFFLER, 1ST | MODEL D F.NO.105702~

14310-20920-H01

Unavailable

5

MUFFLER, 1ST | MODEL E/F This part replaces 14310-20940-H01.

14310-20920-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL D ~F.NO.105701 This part replaces 14330-20400.

14330-20420

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL D F.NO.105702~ This part replaces 14330-20420-H01.

14330-20420

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL E/F This part replaces 14330-20932-H01.

14330-20932

Unavailable

7

SPRING

09443-11002

$3.10

8

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

9

BOLT This part replaces 01107-06128.

01500-06127

$1.97

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

CLAMP | MODEL D This part replaces 14772-20400.

14772-20401

Unavailable

13

CLAMP | MODEL E/F

14772-20410

Unavailable

14

BOLT This part replaces 01517-06258.

01550-06257

$2.30

15

.NUT This part replaces 08310-12068.

08310-00067

$2.13

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

COVER, MUFFLER | MODEL D

14781-20901

Unavailable

19

COVER, MUFFLER | MODEL E/F

14781-20910

Unavailable

20

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

21

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

22

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
