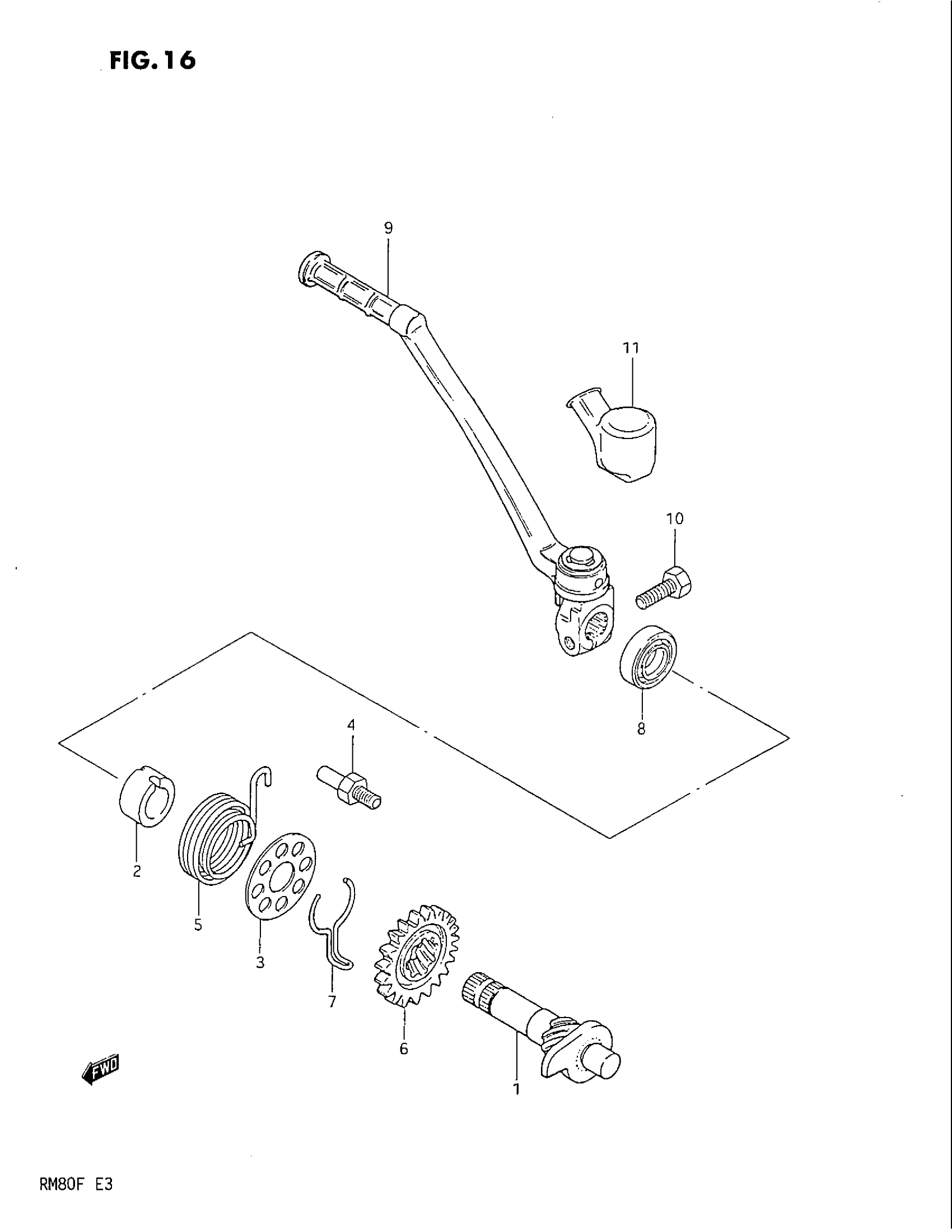

Suzuki RM80 (1985) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26210-20400

Unavailable

2

GUIDE, SPRING

26221-20400

Unavailable

3

HOLDER

26222-20400

Unavailable

4

BOLT

26237-20400

$6.38

5

SPRING

09448-40004

Unavailable

6

GEAR, KICK DRIVE (NT:30)

26241-20400

Unavailable

7

RETAINER SPRING

26234-20400

Unavailable

8

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

9

LEVER ASSY,KICK This part replaces 26300-20401.

26300-20411

Unavailable

10

BOLT This part replaces 01107-06208.

01500-06207

$2.28

11

COVER,JOINT This part replaces 26341-20401.

26341-20402

$8.52
