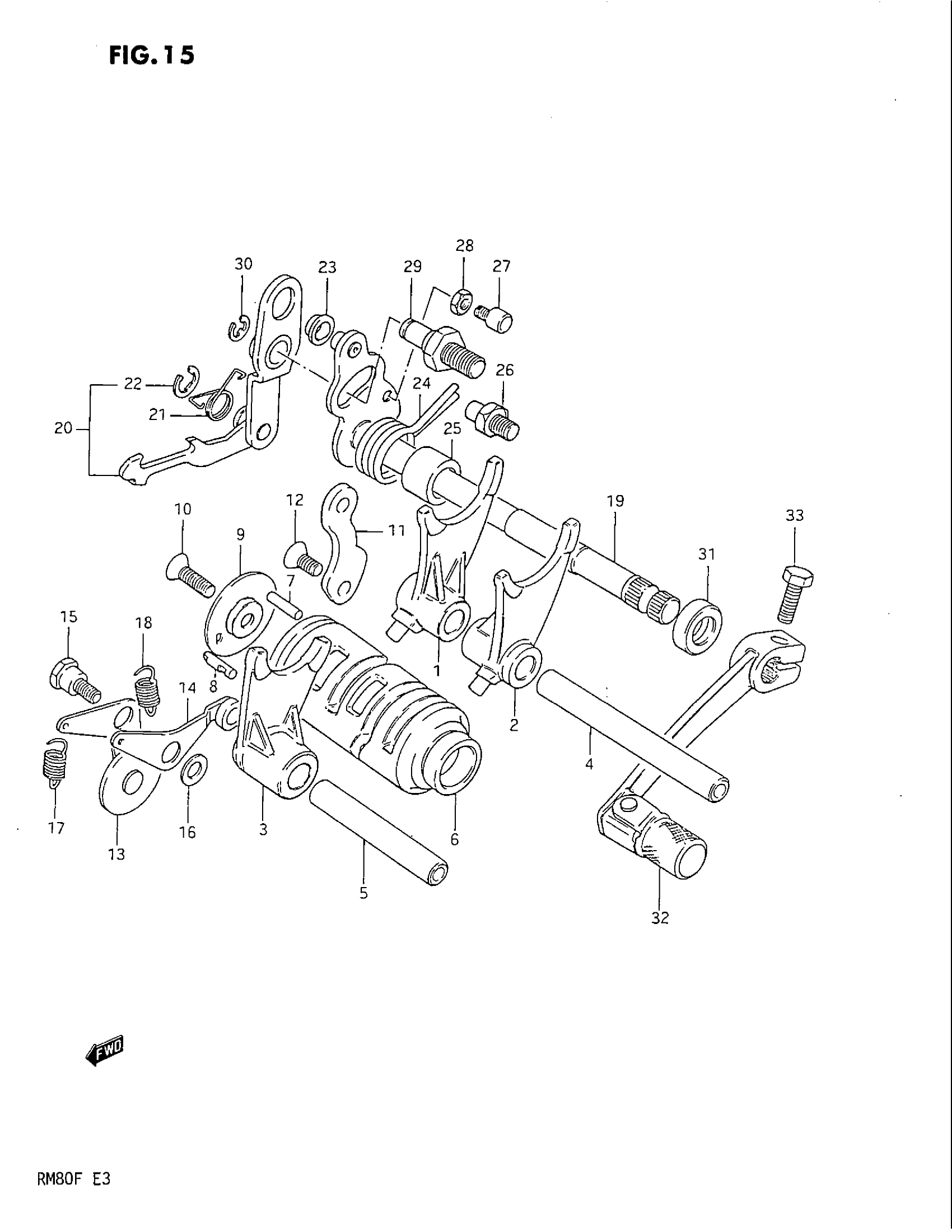

Suzuki RM80 (1985) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-20400

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-46901

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-46001

Unavailable

4

SHAFT, NO.2 This part replaces 25411-14330.

25411-14331

$23.07

5

SHAFT, FORK This part replaces 25421-14300.

25421-14301

$23.07

6

CAM, GEAR SHIFTING

25311-20900

Unavailable

7

PIN

09261-04009

$1.56

8

PIN

09209-04015

Unavailable

9

RETAINER, DRIVE PIN

25322-46900

Unavailable

10

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

11

GUIDE, CAM

25341-46900

Unavailable

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

STOPPER, CAM

25350-26400

Unavailable

14

STOPPER, NEUTRAL

25390-26400

Unavailable

15

BOLT

09111-06020

Unavailable

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

SPRING

09443-07014

$2.22

18

SPRING

09443-10017

Unavailable

19

SHAFT, GEAR SHIFTING

25510-20400

Unavailable

20

PAWL, GEAR SHIFTING | Includes Item(s) 21 - 22

25540-46900

Unavailable

21

SPRING

09448-13006

$2.53

22

E RING This part replaces 08332-11078.

08332-1107A

$1.78

23

ROLLER

09180-07014

$4.11

24

SPRING

09444-26014

Unavailable

25

SPACER

09180-12083

$2.45

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

27

BOLT

25673-46000

Unavailable

28

.NUT This part replaces 08310-22068.

08310-00067

$2.13

29

STOPPER, ARM This part replaces 25672-46001.

25672-46002

Unavailable

30

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

LEVER ASSY, GEAR SHIFTING | MODEL D This part replaces 25600-20400.

25600-05221

Unavailable

32

LEVER ASSY, GEAR SHIFTING | MODEL E/F This part replaces 25600-20410.

25600-05221

Unavailable

33

BOLT This part replaces 09100-06091.

01500-06207

$2.28
