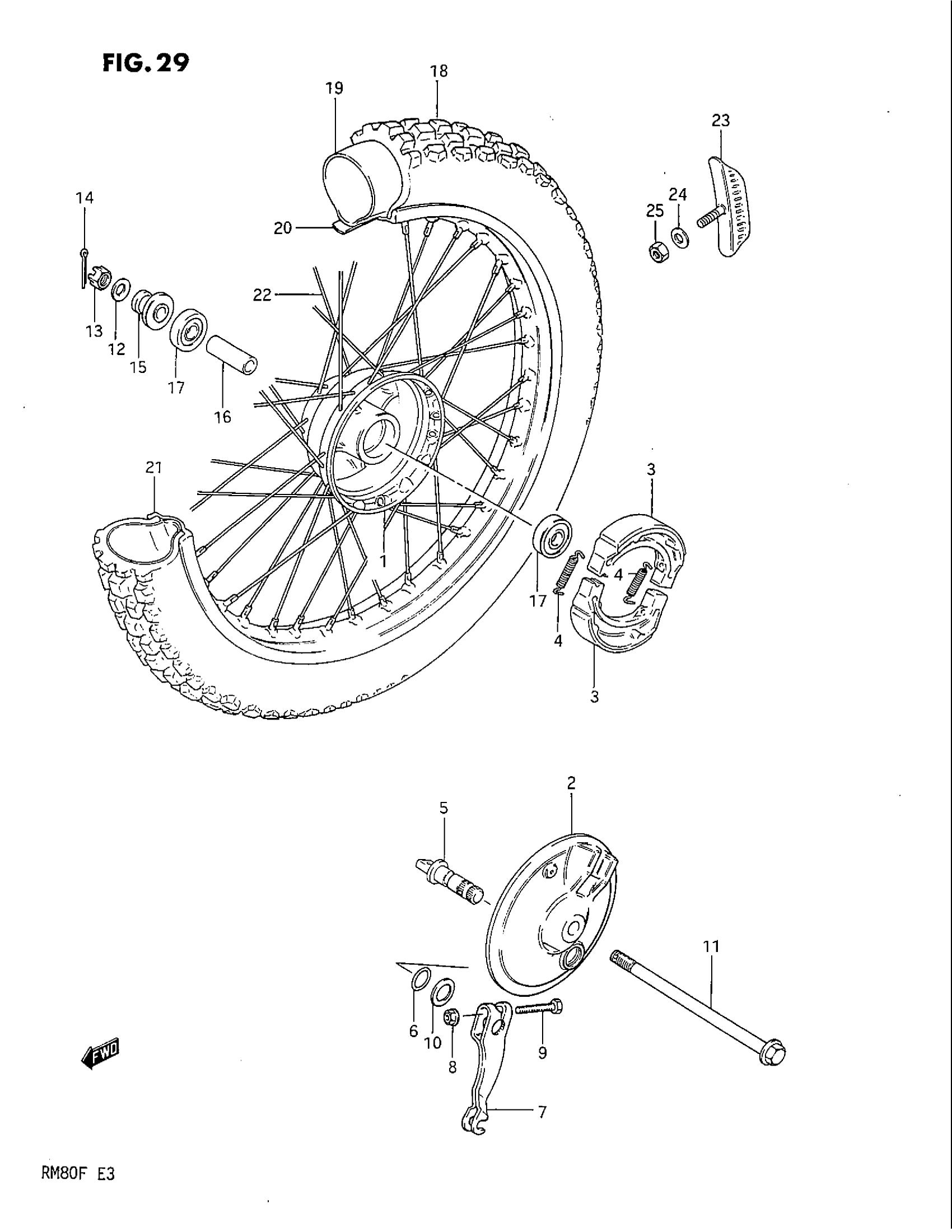

Suzuki RM80 (1985) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB | MODEL D/E This part replaces 54110-20402.

54110-20403

Unavailable

1

DRUM, FRONT HUB | MODEL F

54110-20403

Unavailable

2

PANEL, FRONT HUB

54210-20900

Unavailable

3

SHOE SET,BRAKE This part replaces 54410-20401.

54400-20810

Unavailable

4

SPRING

09443-07025

$2.08

5

SHAFT, BRAKE CAM

54441-20900

Unavailable

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-20400

Unavailable

8

NUT | MODEL D This part replaces 08316-16066.

08316-1006B

$2.50

8

NUT | MODEL E/F This part replaces 09159-06017.

08319-31067

$2.03

9

BOLT This part replaces 01517-06308.

01550-06307

$2.69

10

WASHER, DUST SEAL

09160-12011

$1.54

11

AXLE, FRONT This part replaces 54711-20400.

54711-20401

Unavailable

12

WASHER This part replaces 08322-11108.

08322-01107

$2.15

13

NUT This part replaces 08314-31108.

08314-3110A

$1.99

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

SPACER, AXLE RH

54740-20400

Unavailable

16

SPACER, HUB

09180-10079

Unavailable

17

BEARING | MODEL D This part replaces 08123-62007.

08123-6200B

$9.71

17

BEARING | MODEL E/F

09262-10009

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 55100-20520.

55100-205V0

Unavailable

18

TIRE, FRONT (70/100-17) | MODEL D This part replaces 55100-20900.

55110-02B41

Unavailable

18

TIRE (80/80-17) IRC | MODEL E/F

55100-20400

Unavailable

19

TUBE ASSY, WHEEL INNER | MODEL D This part replaces 55200-20330.

55200-08G01

$22.77

19

NO DESCRIPTION AVAILABLE | MODEL E/F This part replaces 55200-20510.

65200-47C00

Unavailable

20

PROTECTOR, INNER TUBE | MODEL D This part replaces 55261-20330.

55261-02B40

$6.88

20

PROTECTOR, INNER TUBE | MODEL E/F This part replaces 55261-01010.

55261-02B40

$6.88

21

RIM, WHEEL (1.40X17) GOLD | MODEL D This part replaces 55311-20900.

55311-20930

Unavailable

21

RIM, WHEEL (1.40X17) | MODEL E

55311-20920

Unavailable

21

RIM, WHEEL (1.40X17) GOLD | MODEL F

55311-20930

Unavailable

22

SPOKE SET

55320-20400

Unavailable

23

STOPPER, BEAD

65270-28600

$54.75

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

NUT This part replaces 08310-12088.

08310-00087

$2.13
