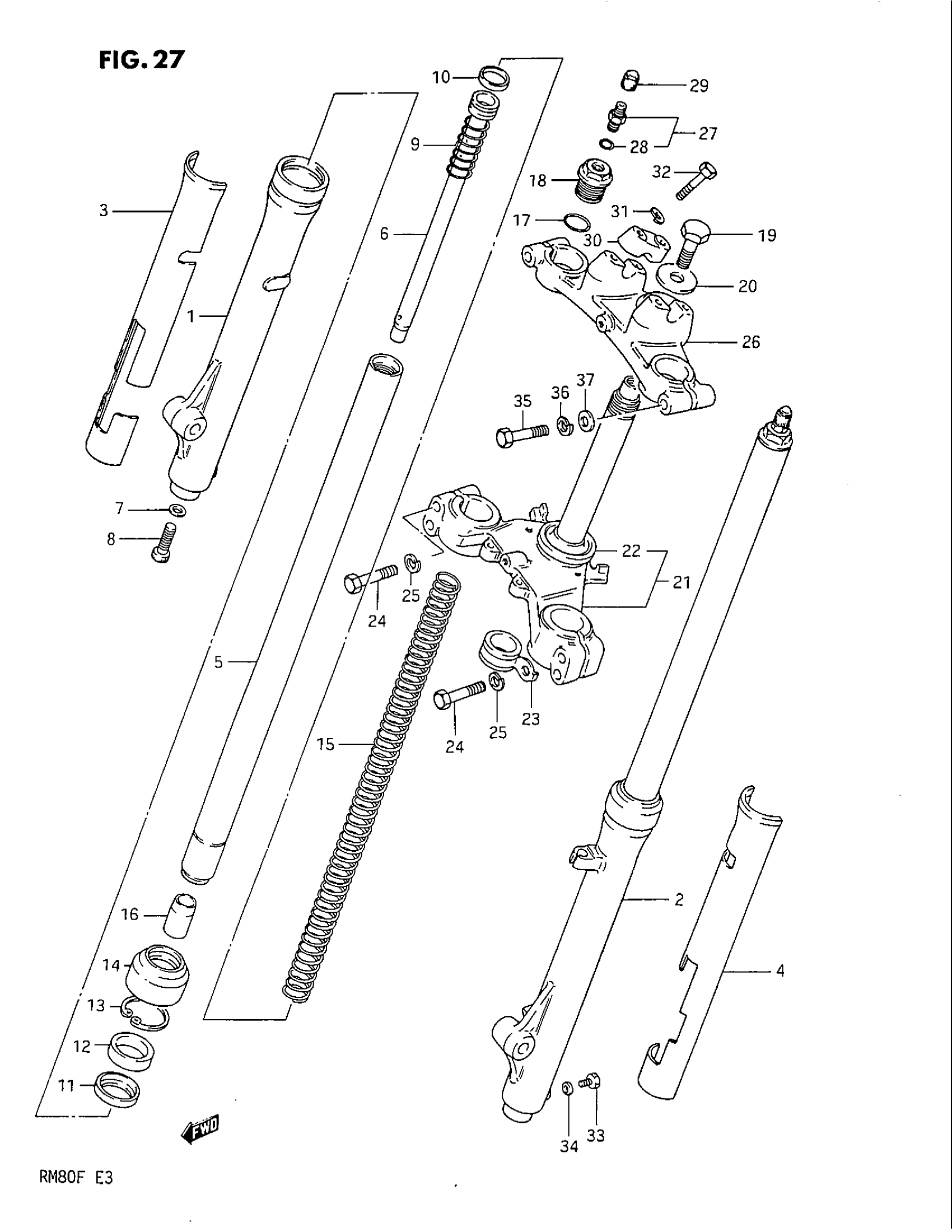

Suzuki RM80 (1985) FRONT FORK (MODEL E/F) Diagram

#

Description
Price

FRONT FORK ASSY | Includes Item(s) 1 - 37

51100-20920

Unavailable

1

TUBE, OUTER RH

51130-20920

Unavailable

2

TUBE, OUTER LH

51140-20920

Unavailable

3

PROTECTOR, RH (YELLOW)

51201-20920-163

Unavailable

4

PROTECTOR, LH (YELLOW)

51202-20920-163

Unavailable

5

TUBE, INNER

51110-20900

Unavailable

6

PIPE, SEAT

51146-20900

Unavailable

7

O RING This part replaces 51148-31030.

51148-36011

$3.56

8

BOLT

51147-48130

$4.34

9

SPRING

51177-36030

Unavailable

10

RING, PISTON

51196-33130

$8.12

11

SEAL SPACER

51168-20900

Unavailable

12

.OIL SEAL

51153-48420

$13.30

13

RING, OIL SEAL STOPPER

51156-20400

Unavailable

14

DUST SEAL

51173-20400

$14.50

15

SPRING A

51171-20920

Unavailable

16

.PIECE, OIL LOCK

51195-48000

Unavailable

17

.O RING

51181-25030

$4.52

18

BOLT

51351-20400

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 51352-48000.

51352-13600

Unavailable

20

WASHER

51356-20920

Unavailable

21

STEM, STEERING

51410-20920-126

Unavailable

22

RACE, OUTER LOWER

51621-33001

$16.25

23

CLIP

51455-20400

Unavailable

24

BOLT

51451-20920

Unavailable

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

STEM HEAD, STEERING

51311-20920

Unavailable

27

VALVE

51293-45440

Unavailable

28

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

$1.49

29

CAP

51294-20400

$7.37

30

HOLDER, HANDLE

56211-27100

$15.23

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

33

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

34

GASKET

51183-31030

$3.77

35

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

36

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

37

WASHER This part replaces 08322-21088.

08322-01087

$2.13
