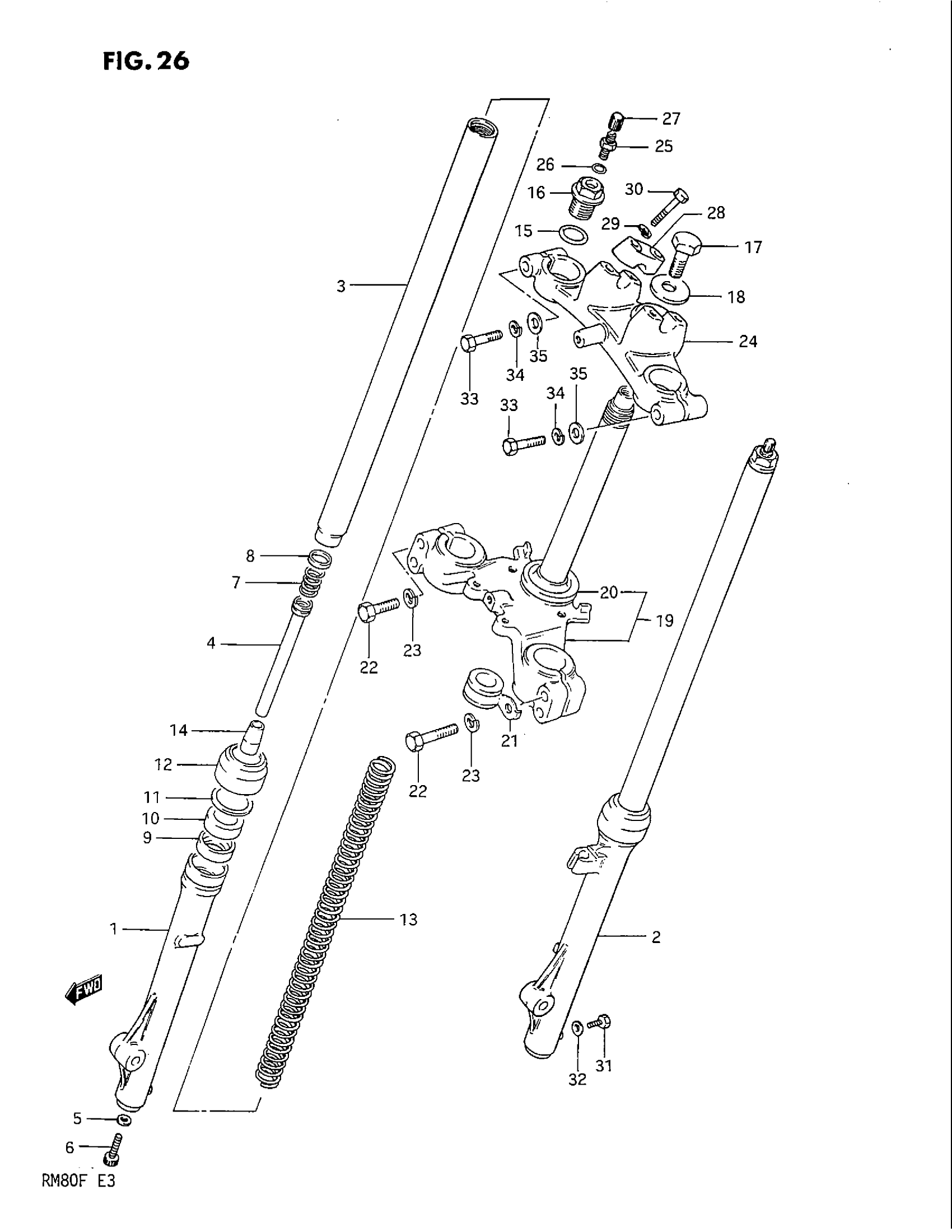

Suzuki RM80 (1985) FRONT FORK (MODEL D) Diagram

#

Description
Price

FRONT FORK ASSY (YELLOW) | Includes Item(s) 1 - 35

51100-20900-163

Unavailable

1

TUBE, OUTER RH (YELLOW)

51130-20900-163

Unavailable

2

TUBE, OUTER LH (YELLOW)

51140-20900-163

Unavailable

3

TUBE, INNER

51110-20900

Unavailable

4

PIPE, SEAT

51146-20900

Unavailable

5

O RING This part replaces 51148-31030.

51148-36011

$3.56

6

BOLT

51147-48130

$4.34

7

SPRING

51177-36030

Unavailable

8

RING, PISTON

51196-33130

$8.12

9

SEAL SPACER

51168-20900

Unavailable

10

.OIL SEAL

51153-48420

$13.30

11

RING, OIL SEAL STOPPER

51156-20400

Unavailable

12

DUST SEAL

51173-20400

$14.50

13

SPRING A This part replaces 51171-20900.

51171-20920

Unavailable

14

.PIECE, OIL LOCK

51195-48000

Unavailable

15

.O RING

51181-25030

$4.52

16

BOLT

51351-20900

Unavailable

17

BOLT

51352-20900

Unavailable

18

WASHER This part replaces 51356-20900.

51356-46030

Unavailable

19

STEM, STEERING This part replaces 51410-20900-291.

51410-20920-126

Unavailable

20

RACE, OUTER LOWER

51621-33001

$16.25

21

CLIP

51455-20900

Unavailable

22

BOLT

51451-20900

Unavailable

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

STEM HEAD, STEERING (BLACK)

51311-20900-291

Unavailable

25

VALVE

51293-45440

Unavailable

26

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

$1.49

27

CAP

51294-20400

$7.37

28

NO DESCRIPTION AVAILABLE This part replaces 56211-48000-291.

56211-46680-291

Unavailable

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

31

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

32

GASKET

51183-31030

$3.77

33

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

WASHER This part replaces 08322-21088.

08322-01087

$2.13
