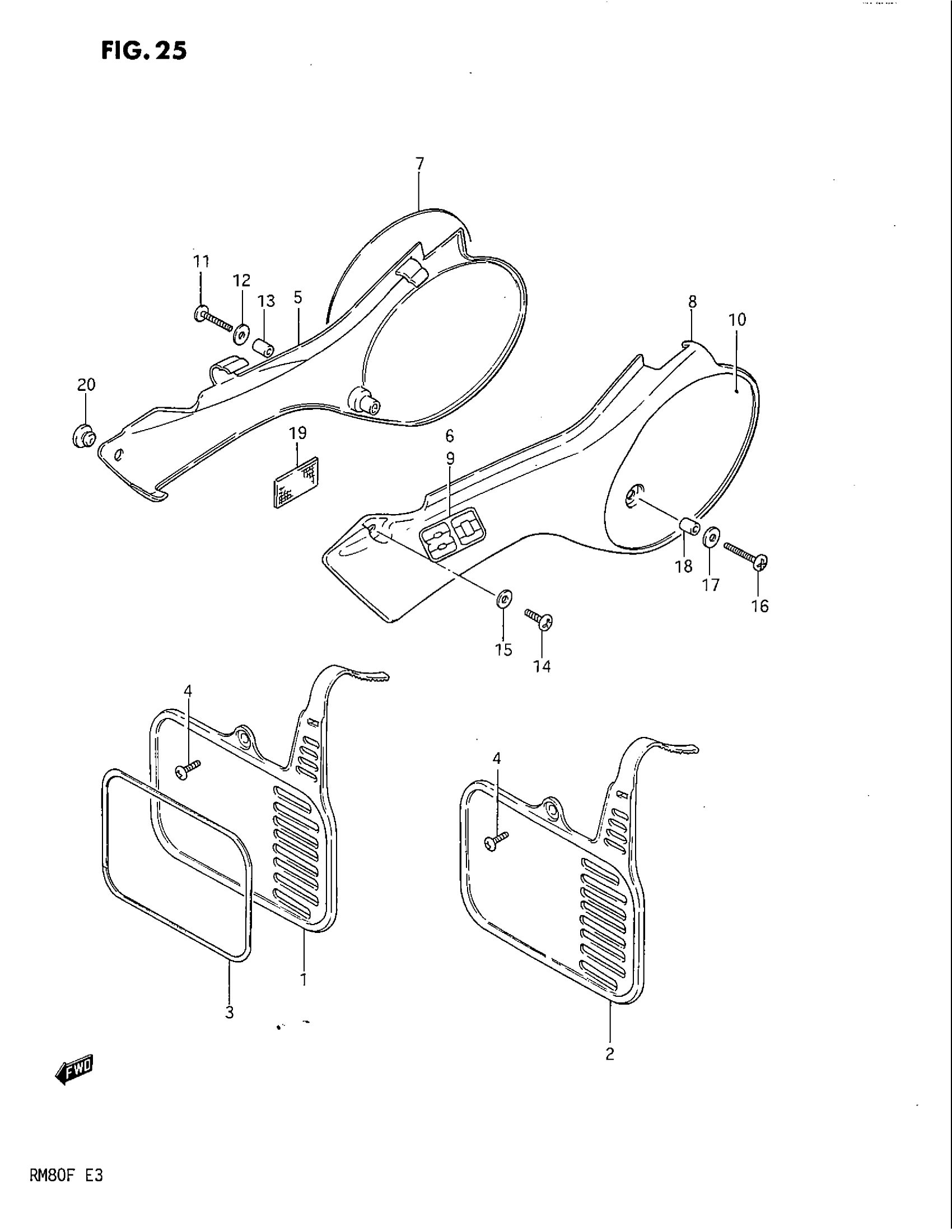

Suzuki RM80 (1985) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER | MODEL D

94911-20900

Unavailable

2

PLATE, FRONT NUMBER | MODEL E/F This part replaces 94911-20910-81W.

94911-20900

Unavailable

3

EMBLEM | MODEL D

68250-20900

Unavailable

4

.SCREW This part replaces 02142-05125.

02142-0512A

$1.49

5

COVER, FRAME RH (YELLOW) | MODEL D This part replaces 47111-20401-81W.

47111-20402-163

Unavailable

5

COVER, FRAME RH (YELLOW) | MODEL E This part replaces 47111-20402-81W.

47111-20402-163

Unavailable

5

COVER, FRAME RH (YELLOW) | MODEL F

47111-20402-163

Unavailable

6

EMBLEM, RH | MODEL D

68131-20900-74H

Unavailable

7

EMBLEM, RH | MODEL F

68132-20900

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 47211-20900.

47211-20901-13L

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL E/F This part replaces 47211-20901-163.

47211-20901-13L

Unavailable

9

EMBLEM, LH | MODEL D

68141-20900-74H

Unavailable

10

EMBLEM

68142-20900

Unavailable

11

SCREW This part replaces 02142-06355.

02142-0635A

$2.72

12

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

13

SPACER | MODEL E/F

09180-06036

Unavailable

14

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

15

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

16

SCREW This part replaces 02142-06305.

02142-0630B

$2.62

17

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

18

SPACER,6.5X9X20 | MODEL E/F This part replaces 09180-06107.

09180-06308

Unavailable

19

SHIELD,FRM CVR, This part replaces 47122-20400.

47167-28C10

Unavailable

20

CUSHION, RH

09321-10007

$2.71
