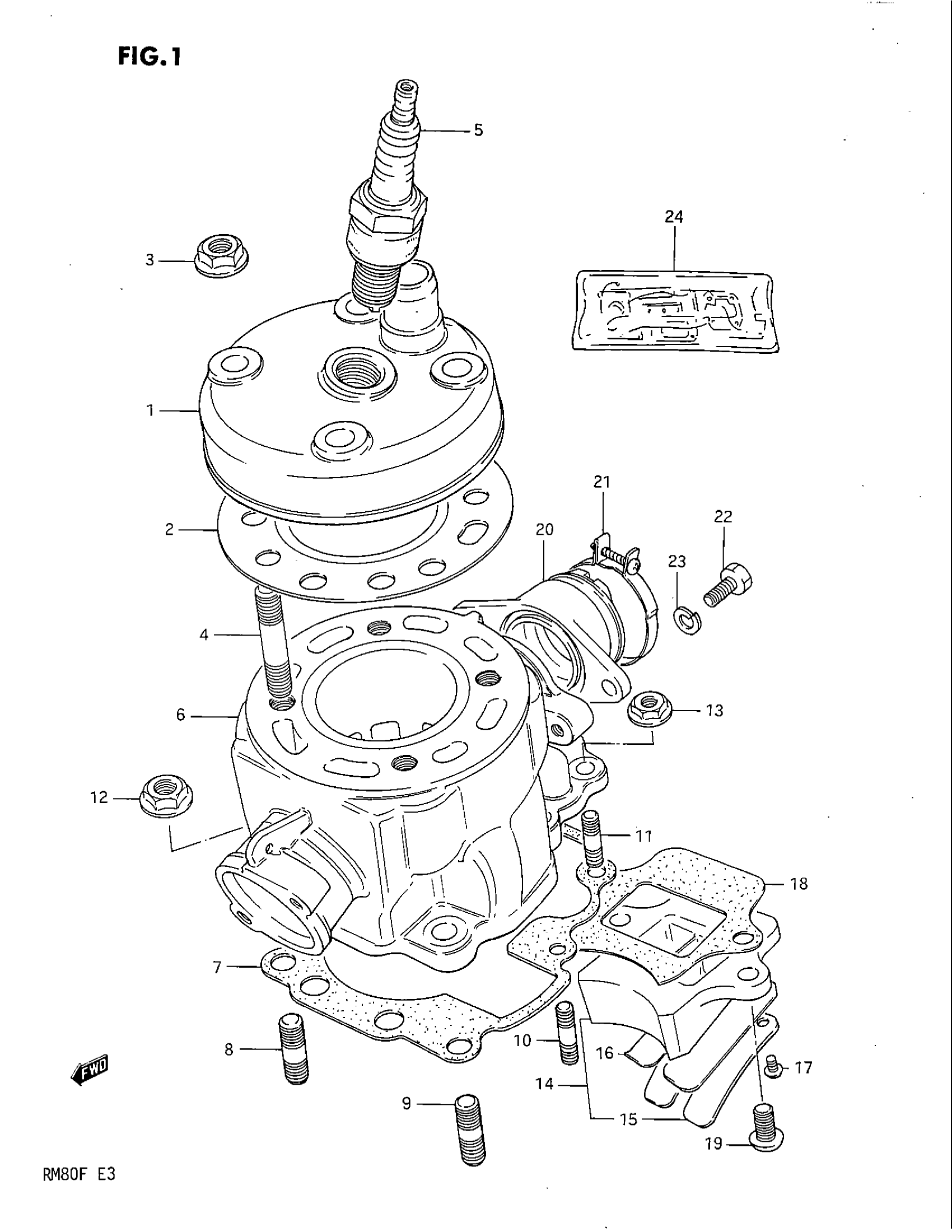

Suzuki RM80 (1985) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | MODEL D/E

11111-20902

Unavailable

1

CYLINDER HEAD | MODEL F This part replaces 11111-20910.

11111-20902

Unavailable

2

GASKET,CYL HEAD | MODEL D This part replaces 11141-20900.

11141-20931-H17

Unavailable

2

GASKET,CYL HEAD | MODEL E/F This part replaces 11141-20930.

11141-20931-H17

Unavailable

3

NUT This part replaces 08316-16085.

08316-1008B

$2.66

4

STUD BOLT

09108-08102

$3.42

5

SPARK PLUG (NGK,B9ES) This part replaces 09482-00232.

09482-00351

$2.86

5

SPARK PLUG (ND,W27ES)

09482-00160

Unavailable

6

CYLINDER | MODEL D This part replaces 11210-20902.

11210-20931

Unavailable

6

CYLINDER | MODEL E

11210-20931

Unavailable

6

CYLINDER | MODEL F

11210-20950

Unavailable

7

GASKET,CYLINDER This part replaces 11241-20900.

11241-20900-H17

$12.18

8

STUD BOLT (L:20)

09108-08106

$3.35

9

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

10

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

11

BOLT,STUD This part replaces 01421-06165.

01421-0616A

$1.91

12

NUT This part replaces 08316-16085.

08316-1008B

$2.66

13

NUT This part replaces 08316-16064.

08316-1006B

$2.50

14

REED VALVE ASSY | Includes Item(s) 15 - 17

13150-46011

Unavailable

15

STOPPER

13152-23011

Unavailable

16

REED VALVE

13153-27110

Unavailable

17

SCREW This part replaces 13154-19011.

02112-0308A

$1.80

18

GASKET, REED VALVE This part replaces 13156-46001.

13156-46001-H17

$2.83

19

SCREW This part replaces 02112-06168.

02112-06167

$1.49

20

PIPE, INTAKE

13110-20400

Unavailable

21

CLAMP This part replaces 09402-42306.

09402-42303

$4.77

22

BOLT This part replaces 01107-06208.

01500-06207

$2.28

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

NO DESCRIPTION AVAILABLE | OPT, MODEL D This part replaces 11400-20860.

11400-20872

Unavailable

24

NO DESCRIPTION AVAILABLE | OPT, MODEL E/F *** This part replaces 11400-20870.

11400-20872

Unavailable
