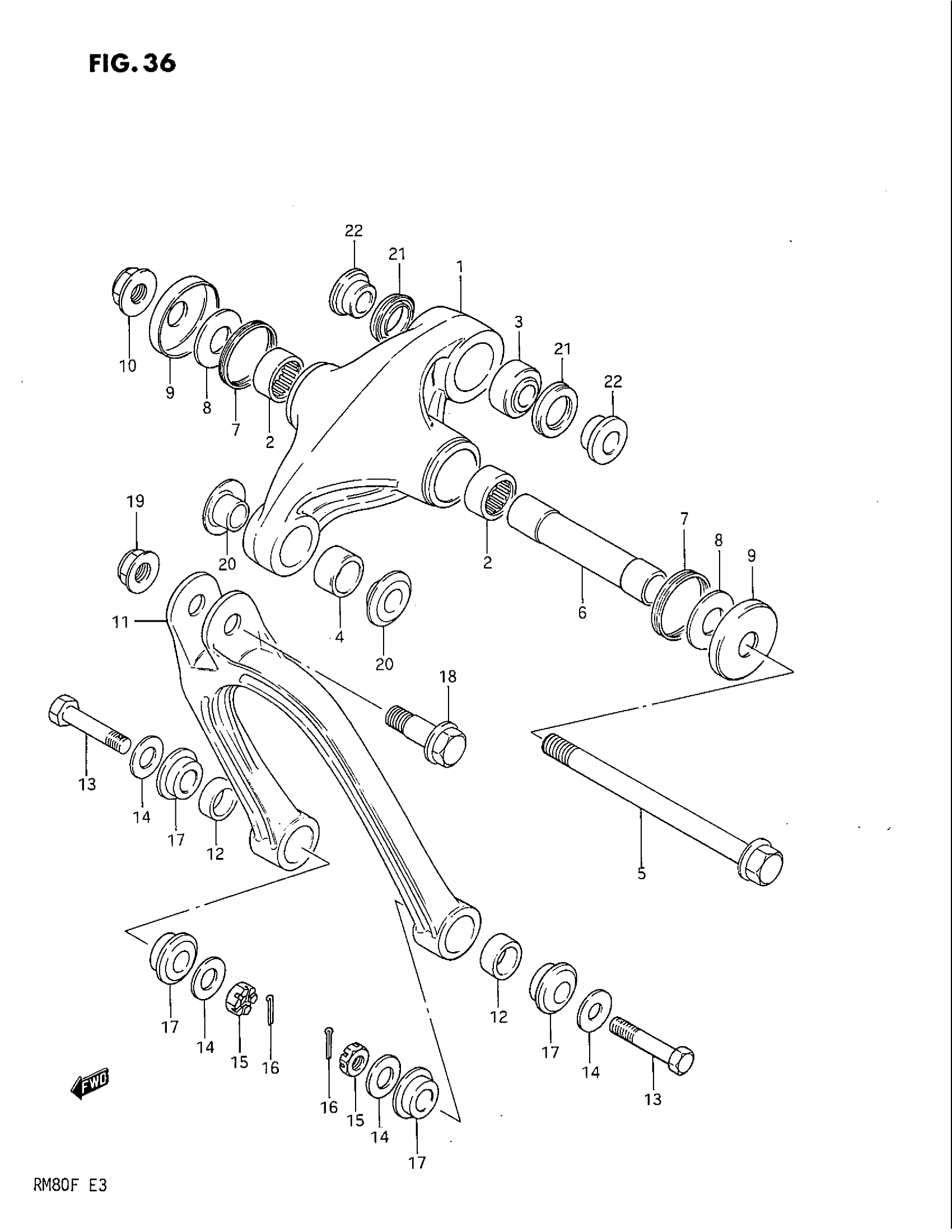

Suzuki RM80 (1985) CUSHION LEVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 62600-20841.

62600-20842

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL E/F; Includes Item(s) 2 - 4 This part replaces 62600-20871.

62600-20872

Unavailable

2

BEARING

09263-17018

Unavailable

3

BEARING, REAR (10x24x14.5) | MODEL D This part replaces 09269-10001.

62175-00B00

$61.15

3

BEARING, REAR (10x24x14.5) | MODEL E/F This part replaces 09269-10007.

62175-00B00

$61.15

4

BUSH, FRONT

62685-20900

Unavailable

5

SHAFT | MODEL D This part replaces 62621-20401.

62621-20402

Unavailable

5

SHAFT | MODEL E/F

62621-20402

Unavailable

6

SPACER This part replaces 62623-20401.

62623-05200

Unavailable

7

DUST SEAL

62624-20401

Unavailable

8

THRUST WASHER

08211-12341

$3.20

9

DUST COVER

62627-20900

Unavailable

10

NUT This part replaces 08319-31128.

08319-3112A

$3.76

11

ROD, CUSHION LEVER | Includes Item(s) 12

62600-20852

Unavailable

12

BUSH, LOWER

62642-20900

Unavailable

13

BOLT, LOWER

62313-20900

Unavailable

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

NUT This part replaces 08314-41088.

08314-4008B

$3.03

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

SPACER, LOWER

62686-20910

Unavailable

18

BOLT, UPPER

09103-10049

$7.63

19

NUT This part replaces 08319-31108.

08319-31107

$2.73

20

SPACER, FRONT

62686-20400

Unavailable

21

DUST SEAL, REAR

62683-20900

Unavailable

22

SPACER, REAR

62684-20900

$12.15
