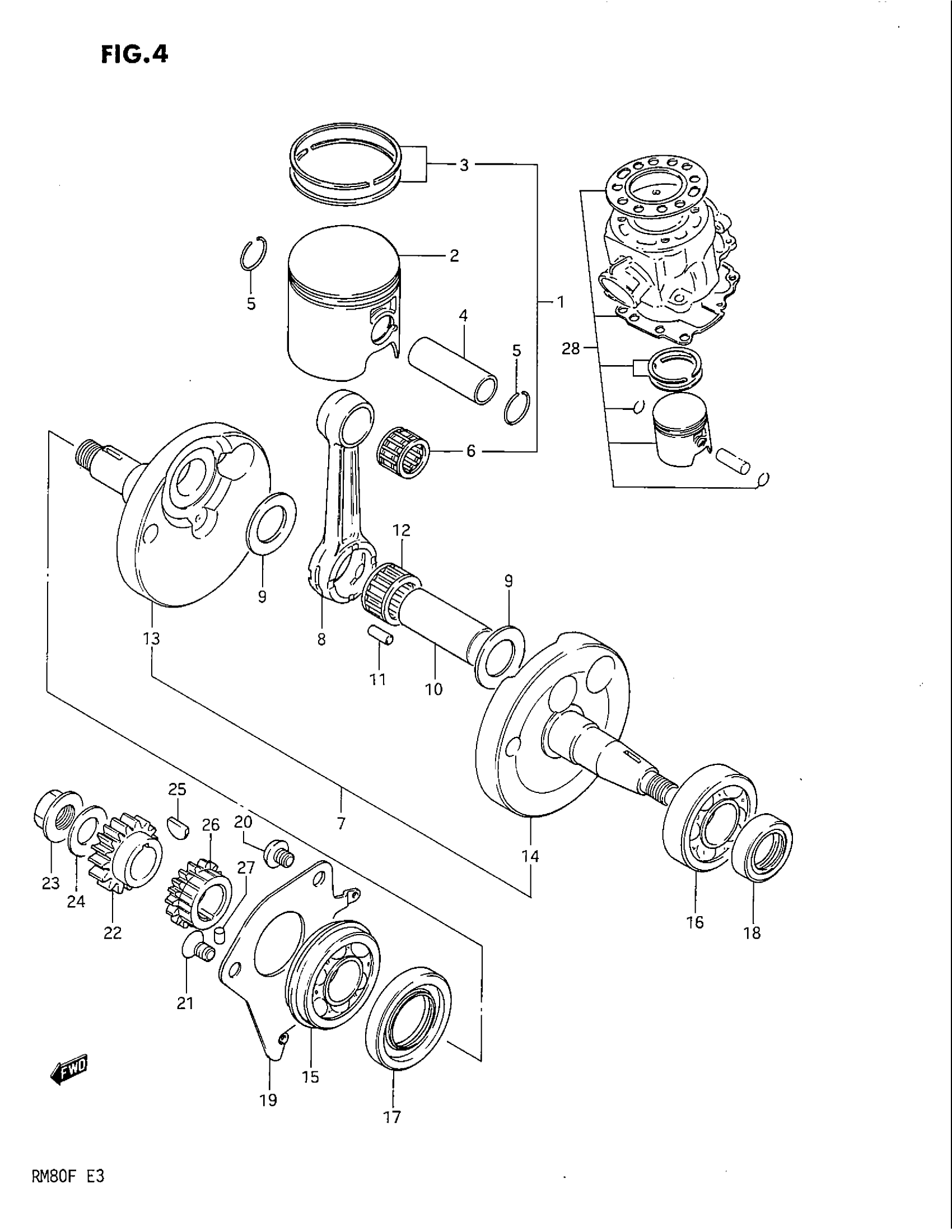

Suzuki RM80 (1985) CRANKSHAFT Diagram

#

Description
Price

1

PISTON KIT (STD) | OPT

12101-20810

Unavailable

1

PISTON KIT (OS:0.5) | OPT

12101-20810-050

Unavailable

1

PISTON KIT (OS:1.0) | OPT; Includes Item(s) 2 - 6

12101-20810-100

Unavailable

2

PISTON (STD)

12110-20900

Unavailable

2

PISTON SET | OPT This part replaces 12110-20900-050.

12103-20850-050

Unavailable

2

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-20900-100.

12103-20850-100

Unavailable

3

RING SET, PISTON (STD)

12140-20900

Unavailable

3

RING SET, PISTON (OS:0.5) | OPT

12140-20900-050

Unavailable

3

RING SET, PISTON (OS:1.0) | OPT

12140-20900-100

Unavailable

4

PIN, PISTON This part replaces 12151-20900.

12151-20910

$15.70

5

RING

09381-14001

$1.49

6

BEARING

09263-14016

$13.52

7

CRANKSHAFT ASSY | MODEL D This part replaces 12200-20902.

12200-20904

Unavailable

7

CRANKSHAFT ASSY | MODEL E/F; Includes Item(s) 8 - 14

12200-20904

Unavailable

8

ROD, CONNECTING | MODEL D This part replaces 12161-20900.

12161-20901

Unavailable

8

ROD, CONNECTING | MODEL E/F

12161-20901

Unavailable

9

WASHER | MODEL D This part replaces 09160-18012.

09160-18016

$7.82

9

WASHER | MODEL E/F

09160-18016

$7.82

10

PIN, CRANK This part replaces 12211-20900.

12211-02B42

Unavailable

11

ROLLER

09261-03013

Unavailable

12

RN 18X24X14 BRG | MODEL D This part replaces 12215-20900.

12214-20911

Unavailable

12

RN 18X24X14 BRG | MODEL E/F This part replaces 12215-20901.

12214-20911

Unavailable

13

CRANKSHAFT, RH

12221-20902

Unavailable

14

CRANKSHAFT, LH

12261-20902

Unavailable

15

BEARING, RH

09262-20064

Unavailable

16

BEARING (20X47X14) This part replaces 09262-20054.

09262-20121

$33.92

17

OIL SEAL, RH

09283-26015

$6.17

18

OIL SEAL, LH

09283-18004

$5.24

19

RETAINER

12541-20900

Unavailable

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84

21

SCREW This part replaces 02122-06128.

02122-06127

$1.84

22

GEAR, PRIMARY DRIVE (NT:18)

21111-20400

Unavailable

23

NUT

09159-12005

$3.93

24

WASHER

09164-12016

Unavailable

25

KEY

08341-31039

$1.89

26

GEAR, WATER PUMP DRIVE (NT:19

17451-20901

Unavailable

27

PIN This part replaces 06211-03052.

04221-03059

$1.72

28

ENGINE TOP END KIT (STD) | OPT,MODEL D

12100-20870

Unavailable

28

NO DESCRIPTION AVAILABLE | OPT,MODEL E/F This part replaces 12100-20880.

12100-20881

Unavailable

28

ENGINE TOP END KIT (OS:0.5) | OPT,MODEL D

12100-20870-050

Unavailable

28

NO DESCRIPTION AVAILABLE | OPT,MODEL E/F This part replaces 12100-20880-050.

12100-20881-050

Unavailable
