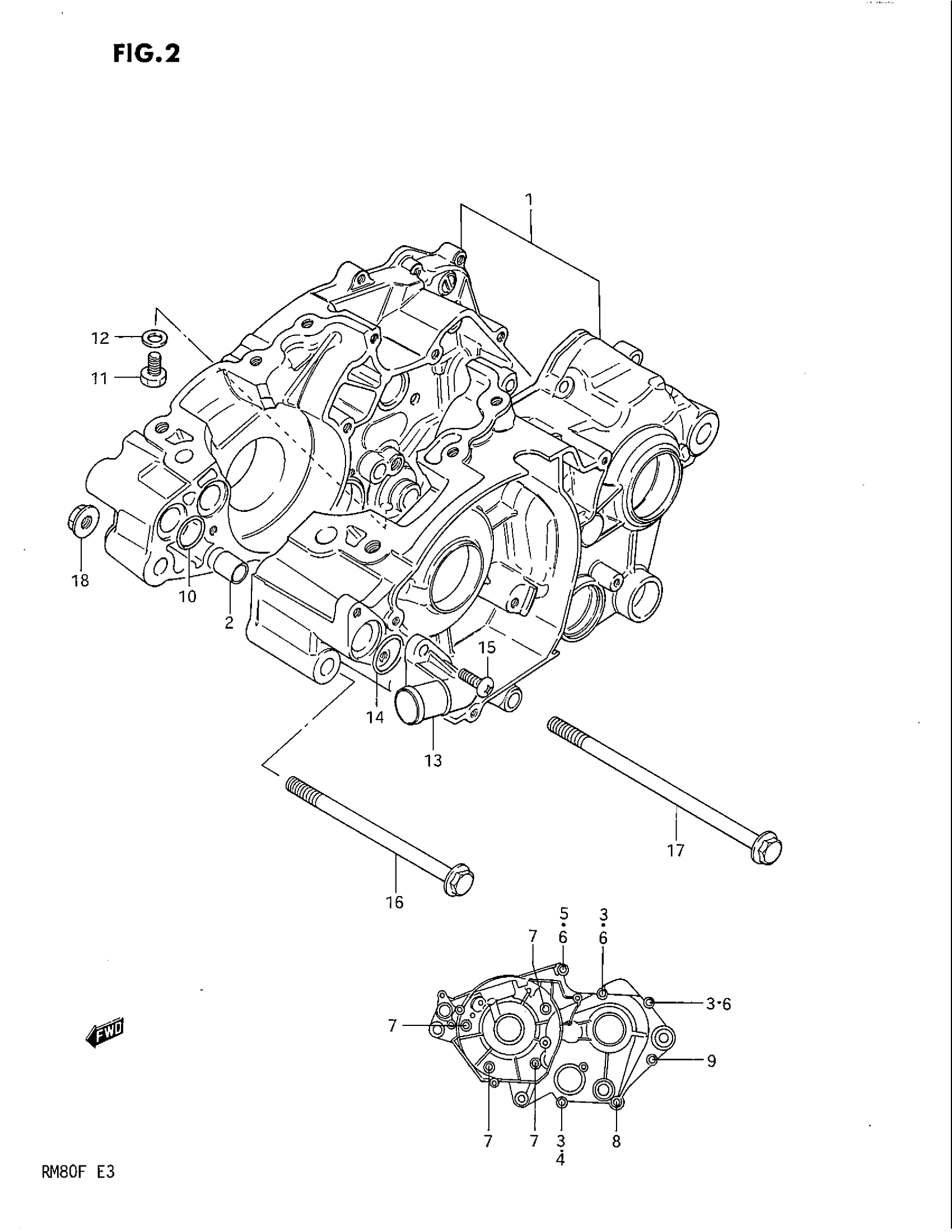

Suzuki RM80 (1985) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL D This part replaces 11300-20840.

11300-20842

Unavailable

1

CRANKCASE SET | MODEL E

11300-20842

Unavailable

1

CRANKCASE SET | MODEL F; Includes Item(s) 2 - 10

11300-20850

Unavailable

2

PIN

04211-11189

$1.78

3

SCREW | MODEL D This part replaces 02112-06258.

02112-06257

$1.78

4

SCREW | MODEL E/F This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW | MODEL D This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | MODEL E/F This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

8

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

9

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

10

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

11

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

12

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

13

NO DESCRIPTION AVAILABLE | MODEL D/E This part replaces 17861-20900.

17861-20901

Unavailable

13

CONNECTOR, HOSE | MODEL F

17861-20910

Unavailable

14

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

15

SCREW This part replaces 02112-05165.

02112-05164

$2.63

16

BOLT (8X95)

09103-08105

$3.87

17

BOLT (8X125)

09103-08106

Unavailable

18

NUT This part replaces 08319-31085.

08319-3108A

$2.32
